2027 LBT 9500 Gallon Double Taper 4 Compartment DOT 406 Fuel Tanker Trailer

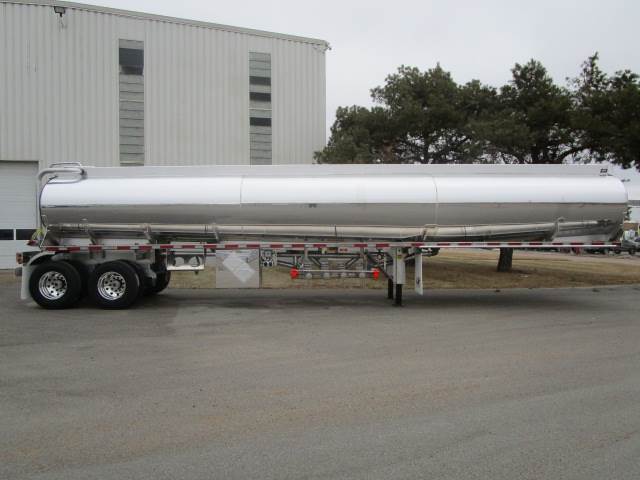

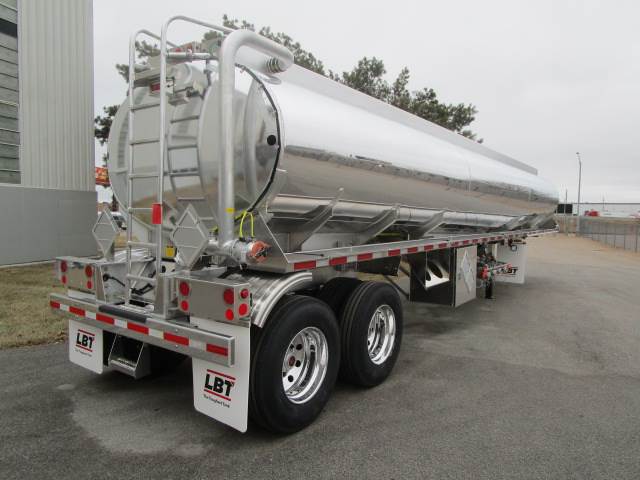

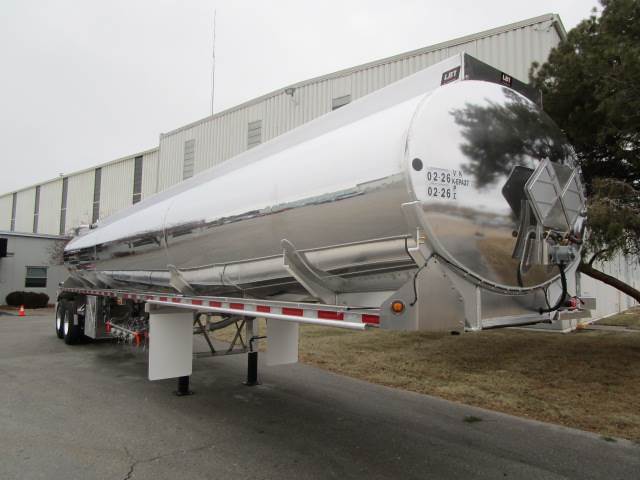

2027 LBT 9,500 Gallon DOT 406 Aluminum Fuel Tank Trailer – 4 Compartment, Double Taper

New 2027 LBT 9,500 gallon DOT 406 aluminum fuel tank trailer available and built for gasoline and fuel oil transport. This 4-compartment double taper petroleum trailer is rack-ready and equipped with a Civacon Blue Diamond bottom load and vapor recovery system, Hendrickson Intraax air ride with lift axle, and air disc brakes with ABS and roll stability.

Ideal for fuel distributors, petroleum carriers, and fleet operators looking for a late-model DOT 406 tanker trailer with premium components and full compliance.

Key Specifications
Year: 2027
Manufacturer: LBT
Capacity: 9,500 gallons (+3%)
DOT Rating: DOT 406 (up to 7.5 lb/gal)
Compartments: (4) – 3,500 / 2,000 / 1,200 // 2,800 gallons
Commodity: Gasoline, Fuel Oil
Tank Design: Elliptical double taper, baffled, dished heads
Material: 5454 aluminum shell, heads, and baffles

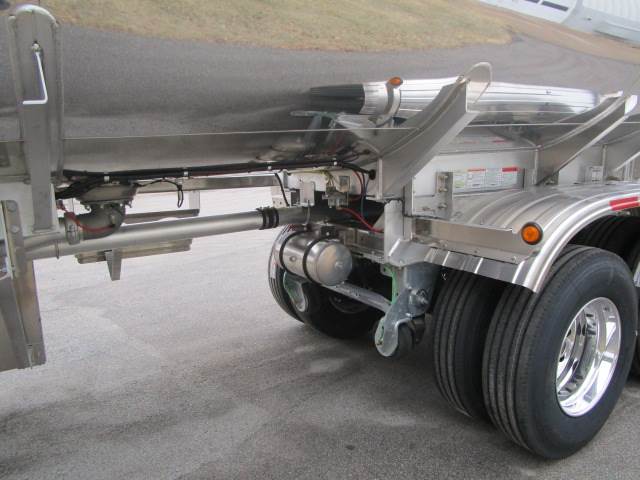

Chassis & Suspension
Aluminum straight-channel chassis (Huck-bolted)
(2) Hendrickson Intraax air ride suspensions
Front lift axle with Wabco InfoLink automatic & manual control
Hendrickson MAXX22T air disc brakes
ABS with Roll Stability Support (RSS)
Aluminum wheels with 11R22.5 radial tires
Jost AX150 aluminum landing gear

Fuel System & Bottom Load
Civacon Blue Diamond fuel system – 5-year warranty
Civacon MaxAir II internal emergency valves (each compartment)
API openable bottom loading adapters

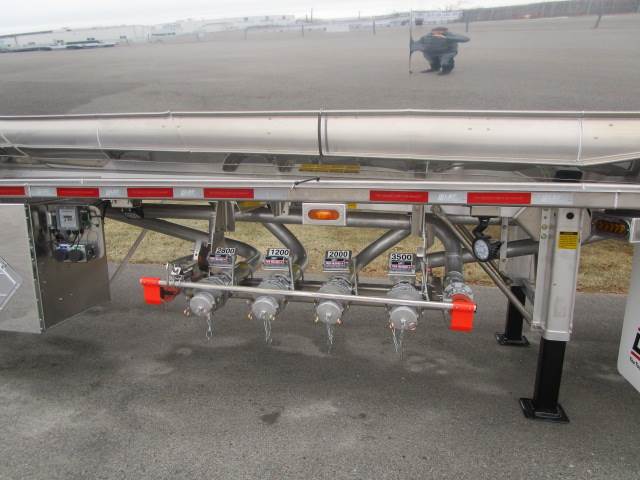

Gravity off-loading couplers
Sight glasses at each discharge

Overfill, Safety & Compliance

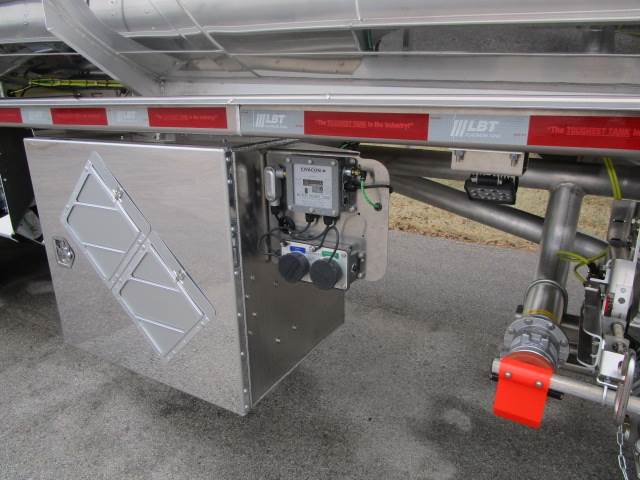

Civacon ROMLink Plug-N-Load overfill prevention system
Optic top sensors and retain sensors in all compartments
VIP electronic ID module

Additional Features
Full-length curbside aluminum hose trough

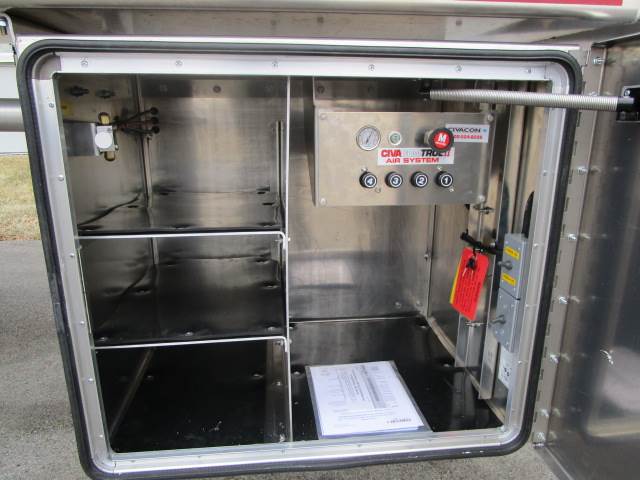

Aluminum fitting cabinet with shelving
Cone and bucket holder
Rear ladder with Safety Walk non-skid walkway
Calibration charts included

Why This Trailer
New LBT DOT 406 fuel tanker with industry leading 3-Year Warranty
High-spec petroleum trailer with air disc brakes
Lift axle for weight optimization
Rack-ready with full vapor recovery and overfill protection
Ideal for gasoline, diesel, and fuel oil delivery operations

📞 Call for pricing, availability, or delivery options nationwide.
