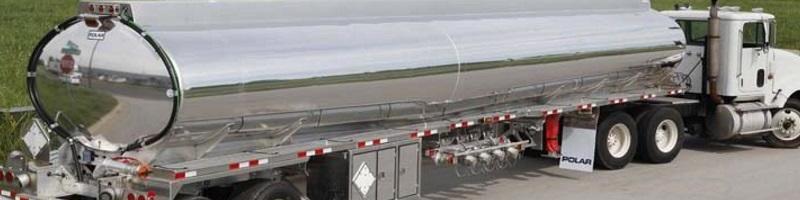

Banner image for the article “Fuel Tank Trailer Buying Guide”, featuring a fuel tank trailer in the background

Fuel tank trailers are one of the most prevalent forms of tank trailers on the road. These tank trailers are used to safely and efficiently transport a large amount of petroleum products such as gasoline, diesel, benzene, and some other types of inflammable liquids in bulk. Equipped with various features and configurations, these trailers address the critical need for safe and effective transportation of these essential fuels, playing an indispensable role in the energy supply chain. In this article, we will talk about some of the most important considerations you should have when looking for an industrial fuel tanker trailer, such as DOT compliance, built composition, tanker shape and design, safety features, type of cargo, pricing, and manufacturers.

Compliance Standard: DOT 406

Ensuring that the trailer meets all Department of Transportation (DOT) regulations is essential. This compliance guarantees that the trailers are built to meet the requirements set by the United States Department of Transportation (DOT) for the design, construction, and testing to allow the transportation of gasoline and other flammable products in bulk on public roads. Additionally, these trailers include a variety of safety features, including rollover protection, emergency shut-off valves, overfill protection devices, grounding wires, and vapor recovery systems. These features are designed to prevent spills, leaks, and other accidents that can result in serious injury or damage to property. If you want to read more about the DOT 406 compliance regulations, read here

Make Composition

The material and construction of the trailer are significant. The most common materials used to construct fuel tank trailers are aluminum and occasionally carbon steel due to their durability and resistance to corrosion, which is crucial for transporting hazardous liquids. These materials are capable of keeping petroleum liquids secure during transportation and offer longevity, making it a suitable choice for various industries. Each material has its advantages and disadvantages over another. The right material for your new petroleum trailer should depend on the type of fuel being transported, the trailer's weight capacity, and the environmental conditions it will be exposed to during its operations.

To get a full comparison of our products and help choose the right one for your business, contact our trailer experts at (281) 612-5263

The Cargo

Understanding the specific type of liquid you'll be transporting is crucial as different liquids may require different tank materials or safety features. For instance, fuels like gasoline and diesel, you’ll want to look at tank trailers made of aluminum (5454), but you could also see using Stainless Steel or Carbon Steel. Liquids like lube oils are usually transported in aluminum trailers, offer a lightweight build, and are easy to clean.

Tank Shape and Design

The shape and design of a fuel tank trailer are pivotal in determining its stability and operational efficiency. Commonly, these trailers are designed with an elliptical shape, which naturally lowers the center of gravity compared to other shapes like cylindrical or rectangular. This design choice is critical for enhancing stability when transporting large volumes of petroleum liquids. The lower center of gravity, combined with materials that complement this design, significantly reduces the risk of rollovers. Furthermore, many tankers are equipped with internal baffles that minimize liquid surge - the movement of liquid inside the tank during motion or abrupt stops. This feature is essential for maintaining stability on the road, especially in varying traffic and environmental conditions.

Common Design Configurations

Image of straight bottom fuel tank trailer

Straight Bottom / Elliptical Trailers

Straight bottom trailers are suitable for transporting low-consistency liquids that are flammable, such as fuel. These trailers, characterized by their elliptical shape and flat bottom, are known for their low center of gravity. This design significantly enhances stability, making them ideal for transporting large volumes of petroleum liquids. The elliptical shape not only contributes to safer transport by lowering the risk of rollovers but also aids in easy cleaning and maintenance. These tanks can be filled more quickly, and several compartments can be loaded at the same time. See Inventory

Image of double taper fuel tank trailer

Double Taper Trailers:

Featuring a design that tapers at both ends, these trailers are engineered for efficient unloading and better distribution of load. The double taper design is best in unloading higher-viscosity products, like lubricants. The tapering helps in reducing the liquid surge, thereby maintaining stability, especially during starts and stops. This design is particularly advantageous in maintaining balance and control under various road conditions. The design of these trailers allows them to drain completely and quickly in flat terrain. See Inventory

Image of trough bottom fuel tank trailer

Trough Bottom Trailers:

These trailers are often preferred for their efficiency in unloading and cleaning as they are designed to drain rapidly even in the most difficult of conditions. The surge baffles act as dams that slow the flow of liquid in a conventional straight bottom or double taper trailer. The trough bottom trailer excels in the unloading of low-viscosity fluids such as gasoline, ethanol, diesel and solvents as it bypasses the surge baffles present in most compartments by allowing the product to flow unobstructed to the unloading sump.

Body Thickness

To transport large volumes of any liquid, you need a sturdy tank body. Not only does the thickness of the tank trailer affect the overall safety of your cargo, it also decides its service life. You want your trailer to give you years of usage and not require frequent replacements. The general consensus on thickness of fuel trailers is as follows: 12-gauge for steel trailers, 14-gauge for stainless steel ones, and 1/8-inch for aluminum tank trailers.

Types of loading systems in fuel tank trailers

TA fuel tank trailer can be loaded either from the top or from the bottom. Each option has its advantages and disadvantages.

Bottom loading: For transporting various fuels, including gasoline, diesel, and other flammable liquids, bottom loading is considered as the safest method and is highly recommended. In contrast to other loading methods, this method is safer, more reliable, and quicker, primarily because it keeps the fuel's vapor within the tank's internal circulation, significantly reducing the risk of incidents or explosions. Additionally, it addresses the issue of evaporating liquid, which can reduce the volume in the tank and pose hazards.

Top loading: The original loading method is top loading. Before discovering the bottom-loading method, all types of fuels such as gasoline, diesel, and jet-A fuel were loaded via the top-loading method. But this type of loading brings with it a unique set of concerns, both in terms of safety and potential environmental impact. Loading fuels or other liquids from the top is risky and dangerous. Because fuel evaporates into the atmosphere when it is loaded from the top. Explosions are more likely when vapor or fumes are present in the atmosphere of the filling station. That is why top loading is not recommended for flammable liquids after discovering the bottom loading method.

Safety Features

When purchasing a fuel trailer, safety is of paramount importance. Given the hazardous nature of the materials being transported, it's crucial to ensure that the trailer is equipped with advanced safety features to prevent accidents and ensure the well-being of both the operator and the public. Features like spill containment systems, fire extinguishers, and emergency shut-off valves are critical for preventing accidents and mitigating risks in case of an emergency. Here are some key safety features to consider:

Overfill/Spill Prevention Equipment: Look for trailers equipped with spill containment systems, overfill prevention, and tight-fitting lids. These features are crucial in preventing spills during loading/unloading processes.

Emergency Shut-off Valves: In case of an emergency, such as a spill or a fire, quick shut-off valves can immediately stop the flow of fuel, minimizing risks.

Fire Extinguishers: Ensure that the trailer is equipped with easily accessible and regularly inspected fire extinguishers, designed for chemical and fuel fires.

Anti-lock Braking System (ABS): ABS is essential for maintaining control under heavy braking, especially in emergency situations, and is particularly important for heavy vehicles like fuel trailers.

Grounding and Bonding Equipment: To prevent static electricity build-up, which can lead to sparks and potentially ignite the fuel, grounding and bonding equipment is a must.

Rollover Protection: Features like a low center of gravity design, rollover protection structures, and stability control systems help prevent accidents, especially in challenging driving conditions.

High-Visibility Markings and Reflective Materials: These are crucial for ensuring that the trailer is visible at all times, particularly in low light conditions, reducing the risk of collisions.

Regular Inspections and Maintenance: Beyond built-in features, regular inspection and maintenance are key to ensuring long-term safety. This includes checking for leaks, structural damage, and the proper functioning of all safety equipment.

Quality Standards

When purchasing a fuel trailer, prioritizing quality standards is essential for safety and compliance. Ensure the trailer meets DOT and FMCSA regulations for road safety, adheres to ISO 9001 for quality management, and complies with EPA environmental standards. Material durability, precision welding, pressure vessel certification, and regular testing and inspections are key for structural integrity and operational safety. Also, consider any industry-specific standards relevant to the type of fuel being transported, ensuring the trailer is equipped for its specific use case.

Fuel Tank Trailer Pricing

The pricing of fuel tank trailers varies widely, depending on factors like size, material, design, and additional features. Basic models may be more affordable but might lack advanced safety features or durable materials, while higher-end models with specialized designs and premium materials command a higher price. It's important to balance budget constraints with the need for quality, safety, and compliance with regulatory standards. Consider the total cost of ownership, including maintenance and operational costs, rather than just the upfront purchase price. Investing in a higher-quality trailer can lead to long-term savings through reduced maintenance costs and increased operational efficiency. Talk to a trailer expert today to help you find the best fuel tanker for your business today.

Fuel Tank Trailers Manufacturers

When selecting a manufacturer for your next fuel trailers, it's crucial to choose a company with a strong reputation for quality, reliability, and after-sales service. Leading manufacturers such as LBT, Polar Tank Trailer, & Tremcar typically offer a range of models to suit different needs and comply with industry standards. Look for manufacturers that provide comprehensive warranties, have a proven track record in the industry, and offer good customer support. Researching and comparing different manufacturers, reading customer reviews, and checking for any industry certifications can help in making an informed decision. Additionally, consider manufacturers that are committed to innovation and sustainability, as they are likely to offer more advanced and environmentally friendly options. See Inventory

In conclusion, when purchasing a fuel tank trailer, it's essential to comprehensively evaluate various factors to ensure you make a well-informed decision. Considerations such as the type of material, tank shape and design, safety features, and adherence to quality standards are paramount for efficient and safe operation. Balancing pricing with these considerations is crucial; while initial costs are a factor, the focus should be on long-term value and reliability. Choosing the right manufacturer is also critical, as it affects the quality, durability, and after-sales service of the trailer. By thoroughly assessing these aspects, businesses can invest in a fuel tank trailer that not only meets their specific needs but also ensures safety, compliance, and operational efficiency, contributing positively to their long-term business objectives.

If you're ready to check out some of the best high-quality fuel tank trailers for sale, we encourage you to reach out to our team of trailer experts. We can guide you through the selection process, ensuring that you find a trailer that perfectly aligns with your operational requirements and budget. Contact us today to learn more about our products and how we can assist in enhancing the efficiency and safety of your transportation needs.
