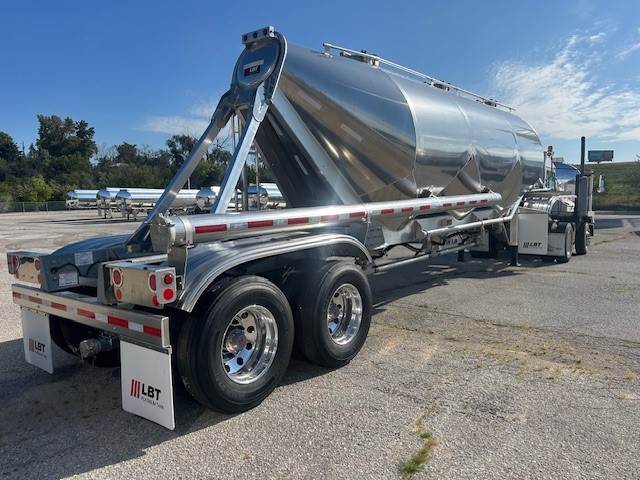

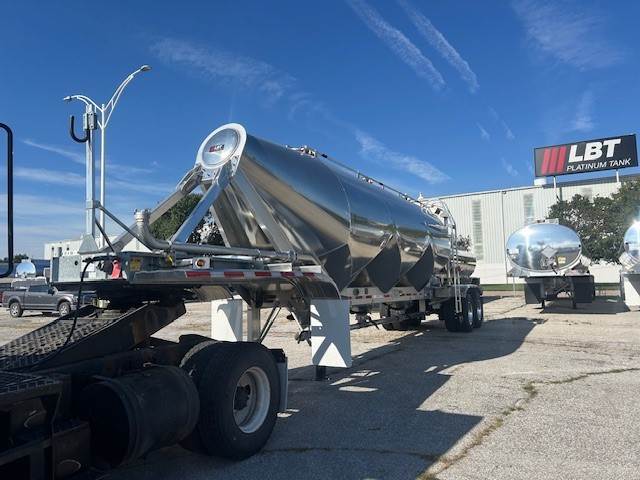

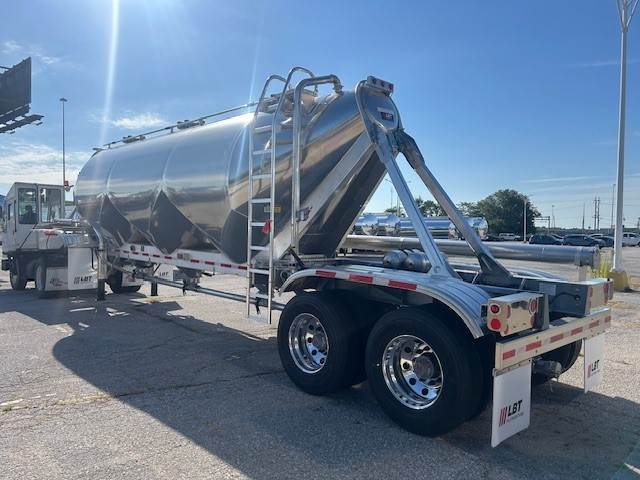

2026 LBT 1000 CU FT 3 Hopper Dry Bulk / Pneumatic Tank Trailer

NEW LBT Platinum Tank Trailer - 1000 Cu Ft Cement Hauler
Stock Number: BKZ6214 (Serials: 8TT105601-03)

Model: HAB-HA2-J1000X3

Weight: 8,940 lbs.

This premium 2025 LBT Platinum Tank Trailer is designed for efficient cement hauling with a smooth aluminum exterior, internal bar-type ring bracing, and full ring bolster assemblies. Built with high-quality 5454-H32 aluminum shell and 5454-0 aluminum heads, it's compatible with cement, lime, and sand. Features a single compartment with three conical hoppers at 45° slope for optimal unloading. Non-spec DOT code, 15 psig operating pressure, and hydrotested at 30 psig. Ideal for bulk dry material transport with advanced aeration and piping systems.

Key Highlighted Features:

• Three (3) Dome Lids: Equipped with (3) 20" full opening Betts 8555ABF-6 manholes featuring cast aluminum covers, (6) cam-type hold-downs, and white rubber gaskets, hinged to roadside for easy access.
• Raised Center Rear Axles, 25,000 lb. Rating: Hendrickson 5" round “Raised Center” axles integrated with “INTRAAX” AAT 25K air ride suspensions (15RH RC71P), 71½" track, and 49" axle spacing for superior stability and load handling.
• Three (3) Year Warranty: LBT standard 3-year warranty on vessel assembly and all LBT manufactured parts/components; vendor components covered by individual warranties.
• Disc Brakes: Hendrickson MAXX22T air disc brakes with Wabco 232 brake pads/linings, standard 20/24 brake chambers, and Wabco 4S/2M ABS with Roll Stability Support (RSSplus).
• Weight 8,940 lbs.: Lightweight design at just 8,940 lbs. for maximized payload efficiency without compromising durability.
• 6" BTI MaxxLife Series 600 Butterfly Valves: Installed at each hopper outlet with one-piece aluminum body, thin iron disc, MaxxTemp Black abrasion-resistant seat, and offset ergonomic aluminum locking handle with 90° notched plate, operable from roadside.
• (8) 11R22.5(G) Continental Conti EcoPlus HT3 Steel Belted Radials: Maximum rated at 5,840 lbs. with 105 psi cold dual inflation, mounted on 22.5" x 8.25" Accuride “Accu-Lite” aluminum disc wheels with “Ultra Enhanced” finish.

Chassis and Suspension:
Carbon steel end frames with aluminum strut weldments, Huck bolted; galvanized end frames.

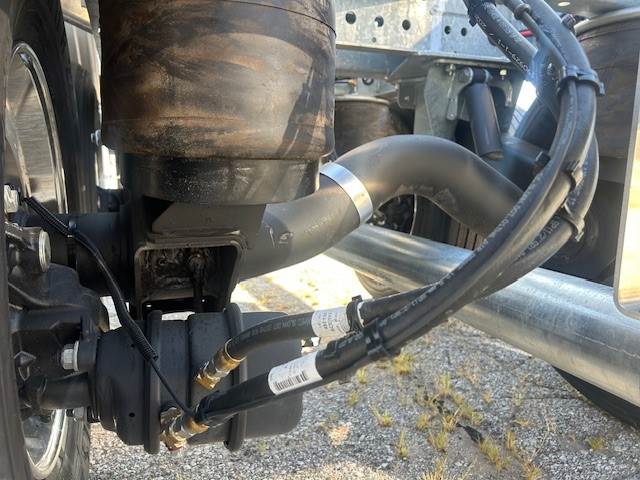

(2) Hendrickson “INTRAAX” air ride suspensions with bolt-on “Quick-Align” hangers on 38" wide chassis frame.
Jost AX150 2-speed aluminum vertical supports with stainless steel knee braces and cross shaft.
Bolt-on aluminum fenders with anti-sail splashguards.

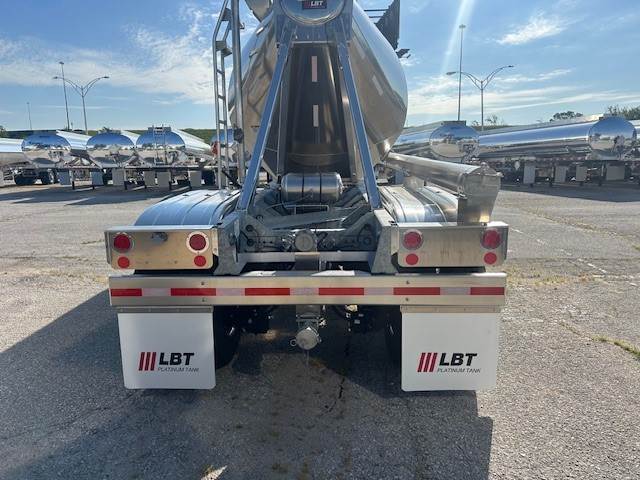

No rear impact guard (conforms to DOT “Wheels-back” exemption).

Tank and Unloading System:
(3) BTI “SpinFlow” aerators per hopper with blue silicone discs and stainless steel wear plates.

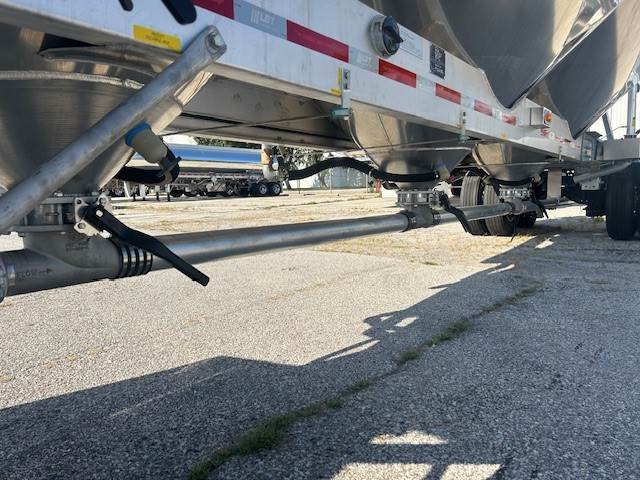

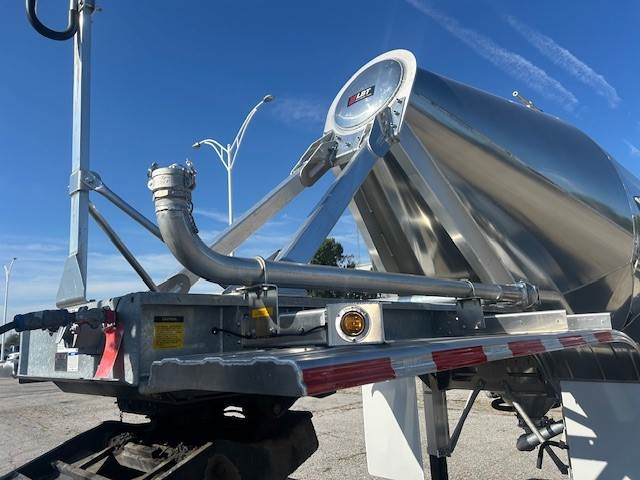

4" aluminum sch40 discharge piping with 6" x 4" cast aluminum straight tees (BTI “Siphon Flow” BT-600-A).
3" aluminum sch10 air supply line with BTI BlackMaxx series 795 line valve and (2) BTI "Optima" check valves.
(1) 2" BTI “All-in One” aluminum adjustable safety relief valve set at 15 psig on blowdown line.
3" aluminum sch10 blowdown line with BTI BlackMaxx valve.
(2) 4" dial gauges (0-30#) for tank and line pressure in aluminum cabinet.

Additional Features:

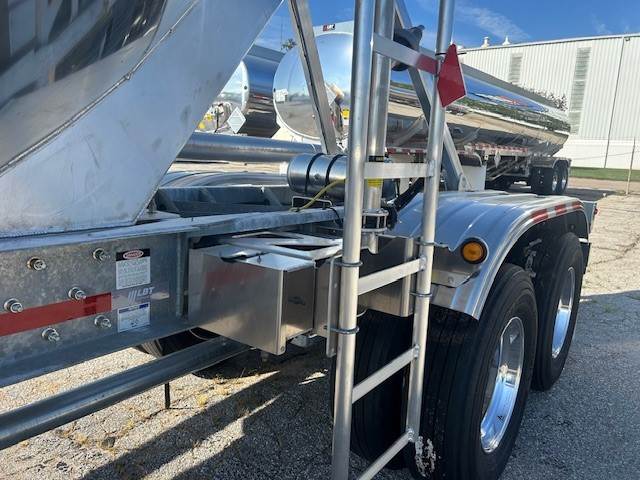

Aluminum ladder on roadside with Grip-Strut steps and extended grabhandles.

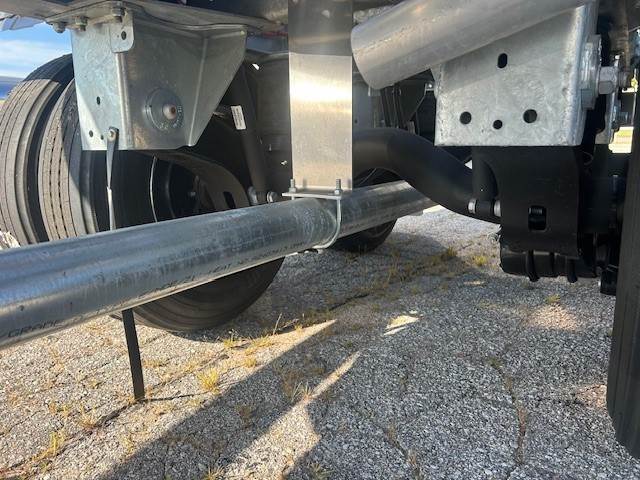

(1) 8" x 21'-6" aluminum hose tube on curbside.
Black “Safety Walk” non-skid tape on tank top walkway with 1" aluminum pipe toe rails.
D.O.T. 12V LED lighting system with Truck-Lite lamps, polished stainless steel security rings, and reflective markings.
Hendrickson Extended Life System “HXL7” hubs with 7-year limited warranty.
No inflation system (provisions only); no hubodometer.
This trailer is factory-inspected per Federal Highway Administration standards and hydrotested with water—professional cleaning recommended prior to first load if needed. Designed for 180°F max loading temperature.

Contact Trailers of Texas for more details or to schedule a viewing! Perfect for heavy-duty cement operations with proven reliability.
