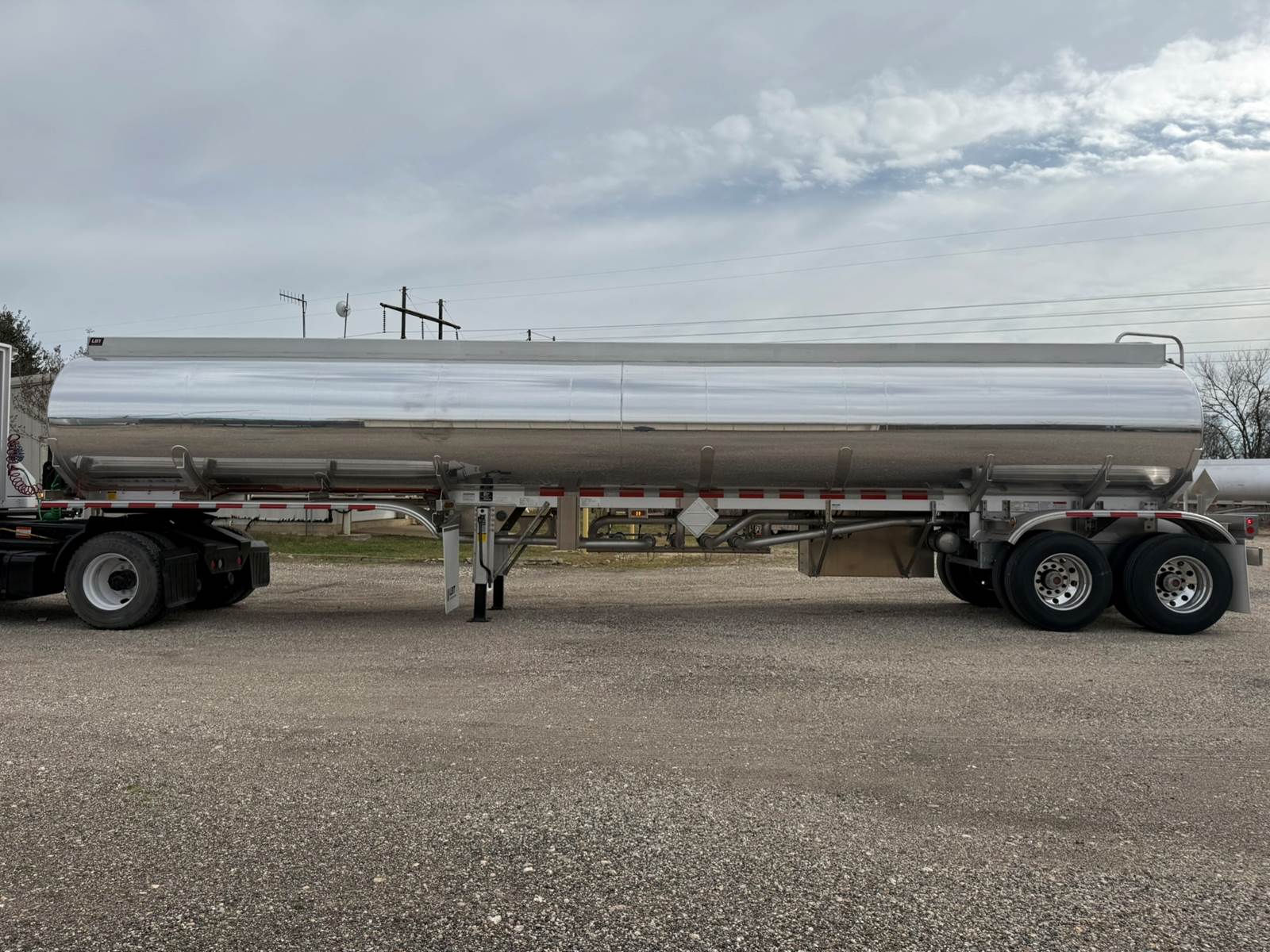

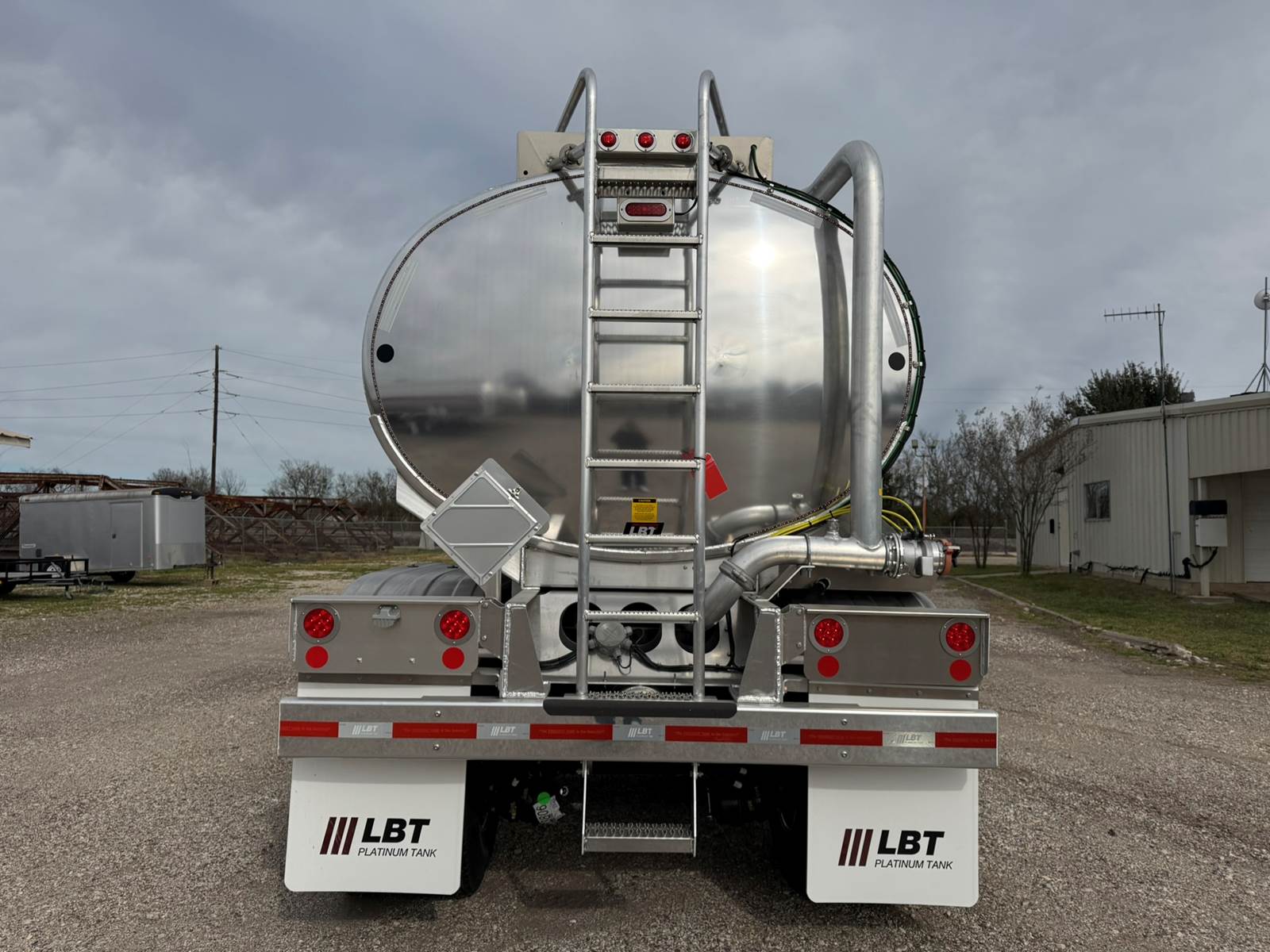

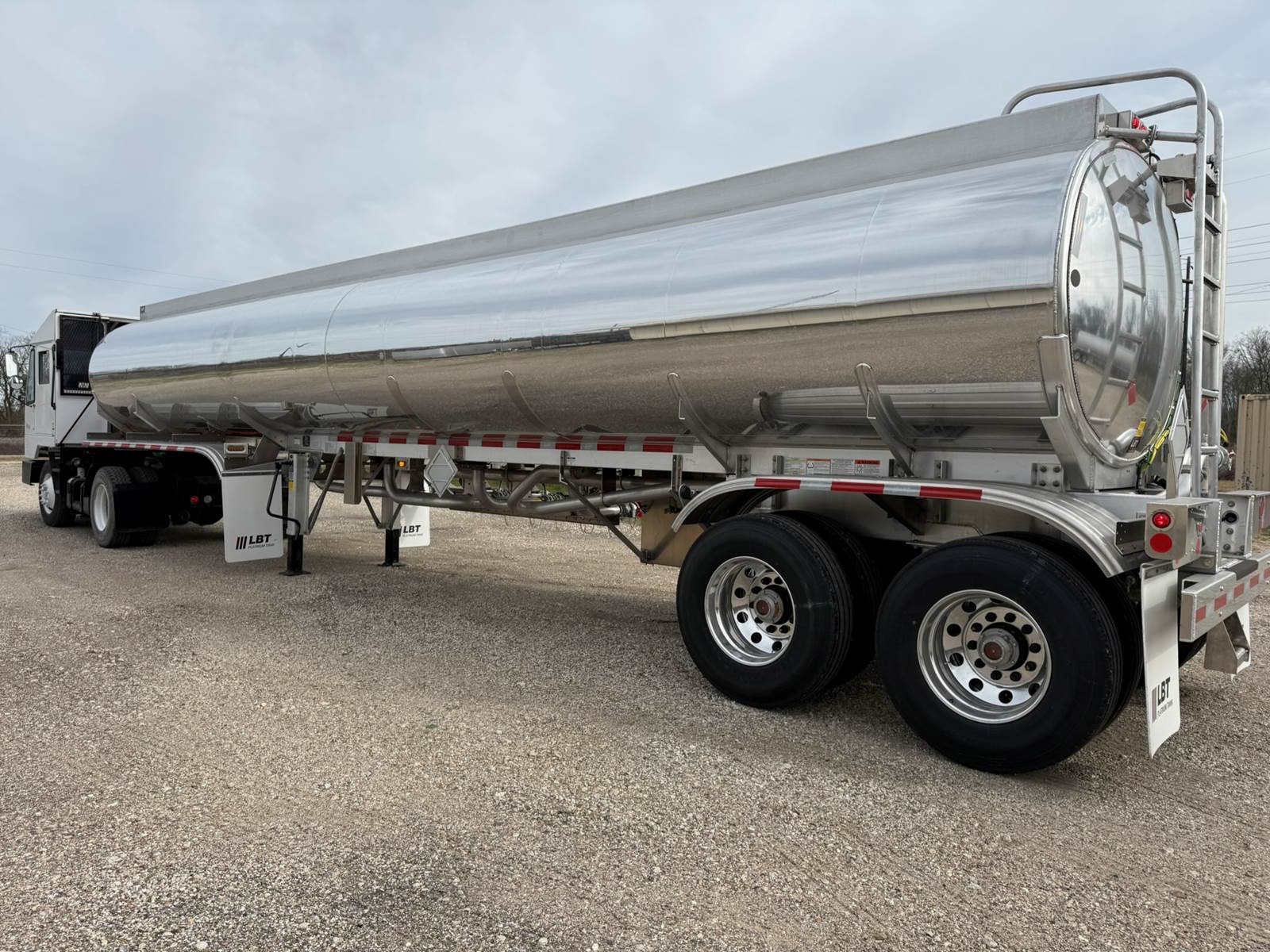

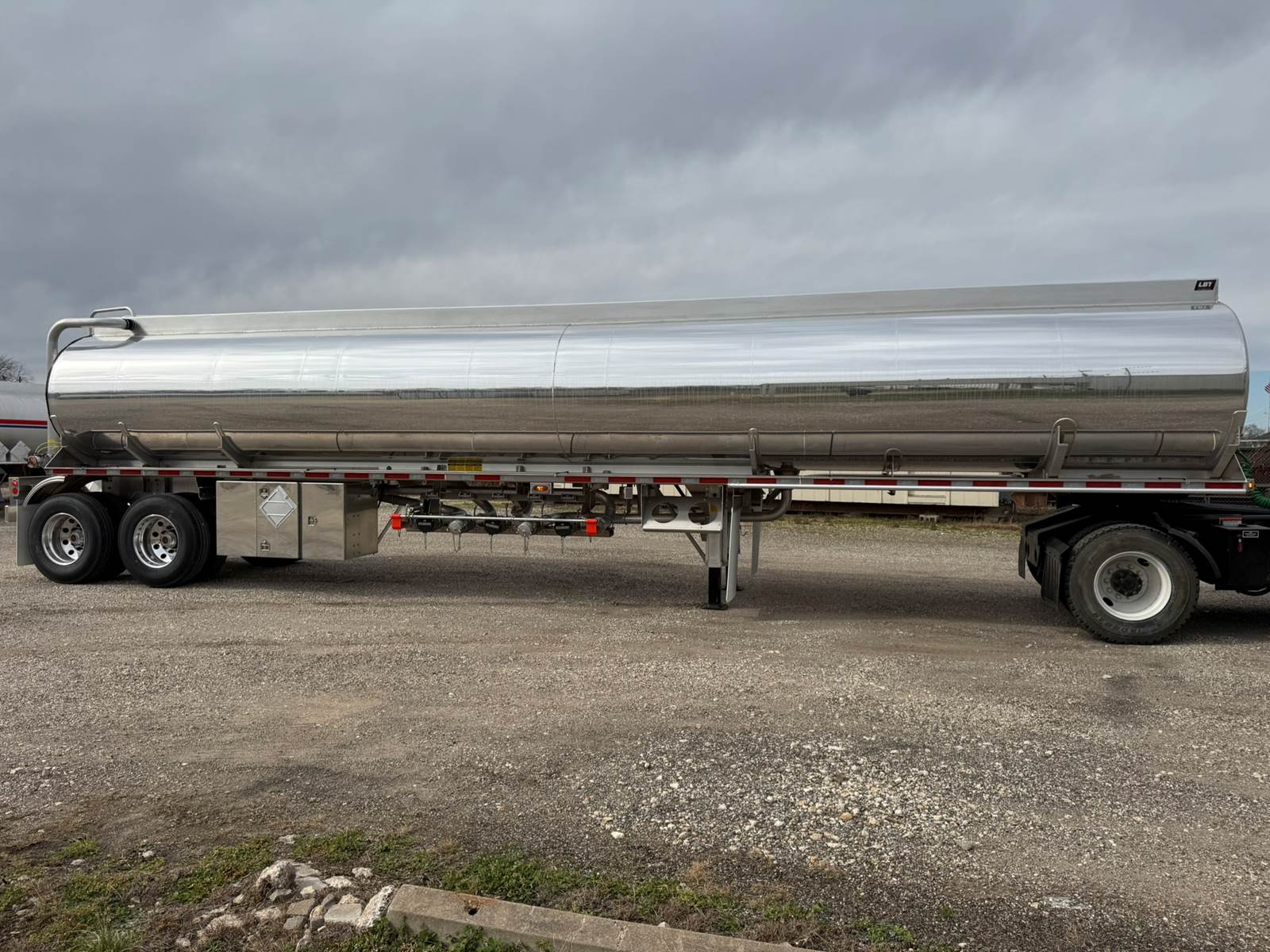

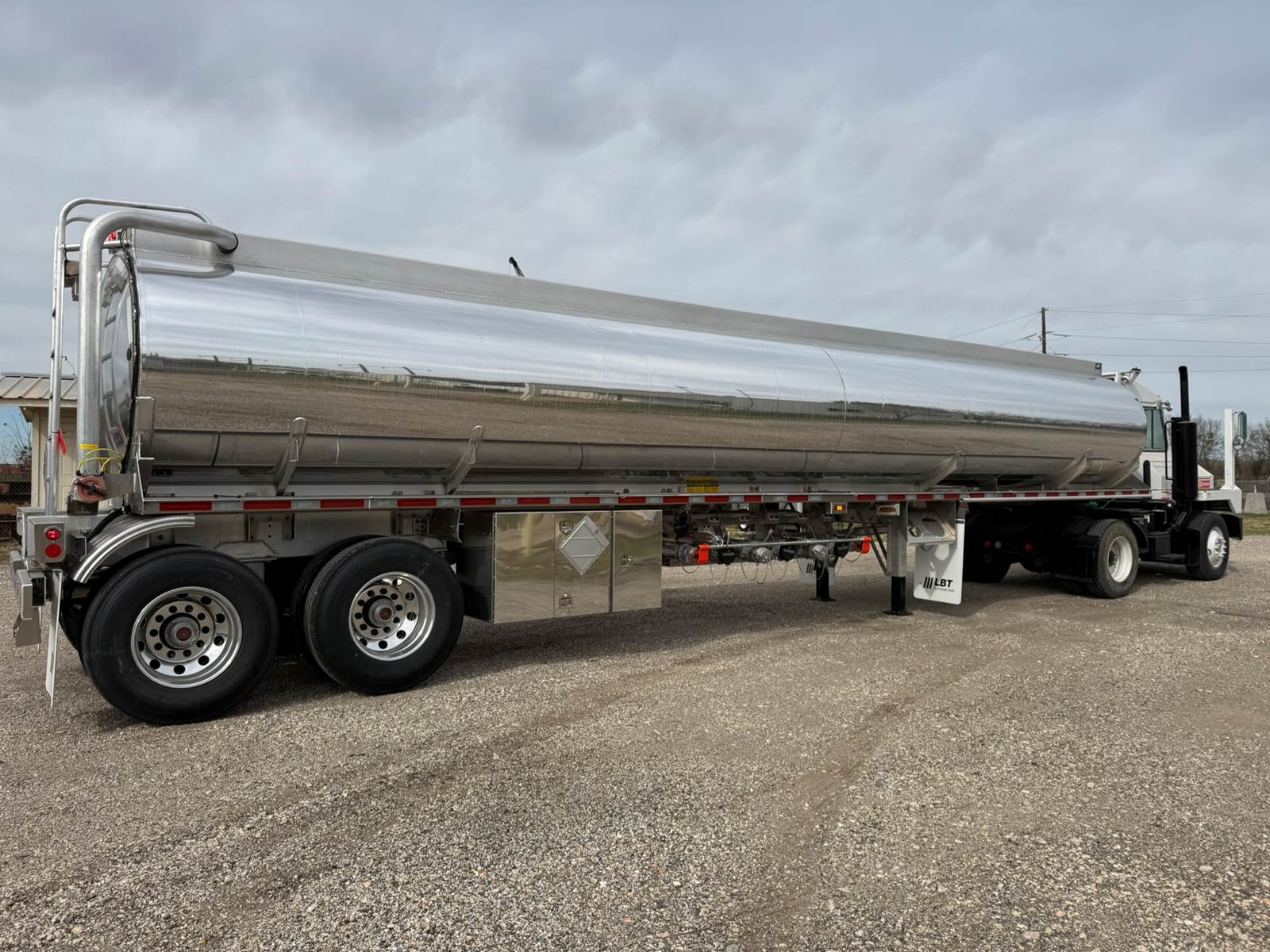

2027 LBT 9200 Gallon 5 Compartment | Disc Brakes | Fuel Tanker Trailer

SPECIFICATIONS:
Capacity: 9,200 gallons (+3% tolerance)
Compartments: 5 (3100/1250/1100/1100//2650 gallons)
Overall Length: 42’4.5” (Trailer)
Trailer Weight: 9,800 LBS

CONSTRUCTION & FRAME:
Elliptical straight frame design
Bright machine-polished aluminum finish
Single bulkheads between compartments 1-4, double bulkheads at compartment 5
Bolt-on aluminum fenders (roadside), hose trough as curbside fender
Jost AX150 aluminum landing gear with stainless steel cross shaft

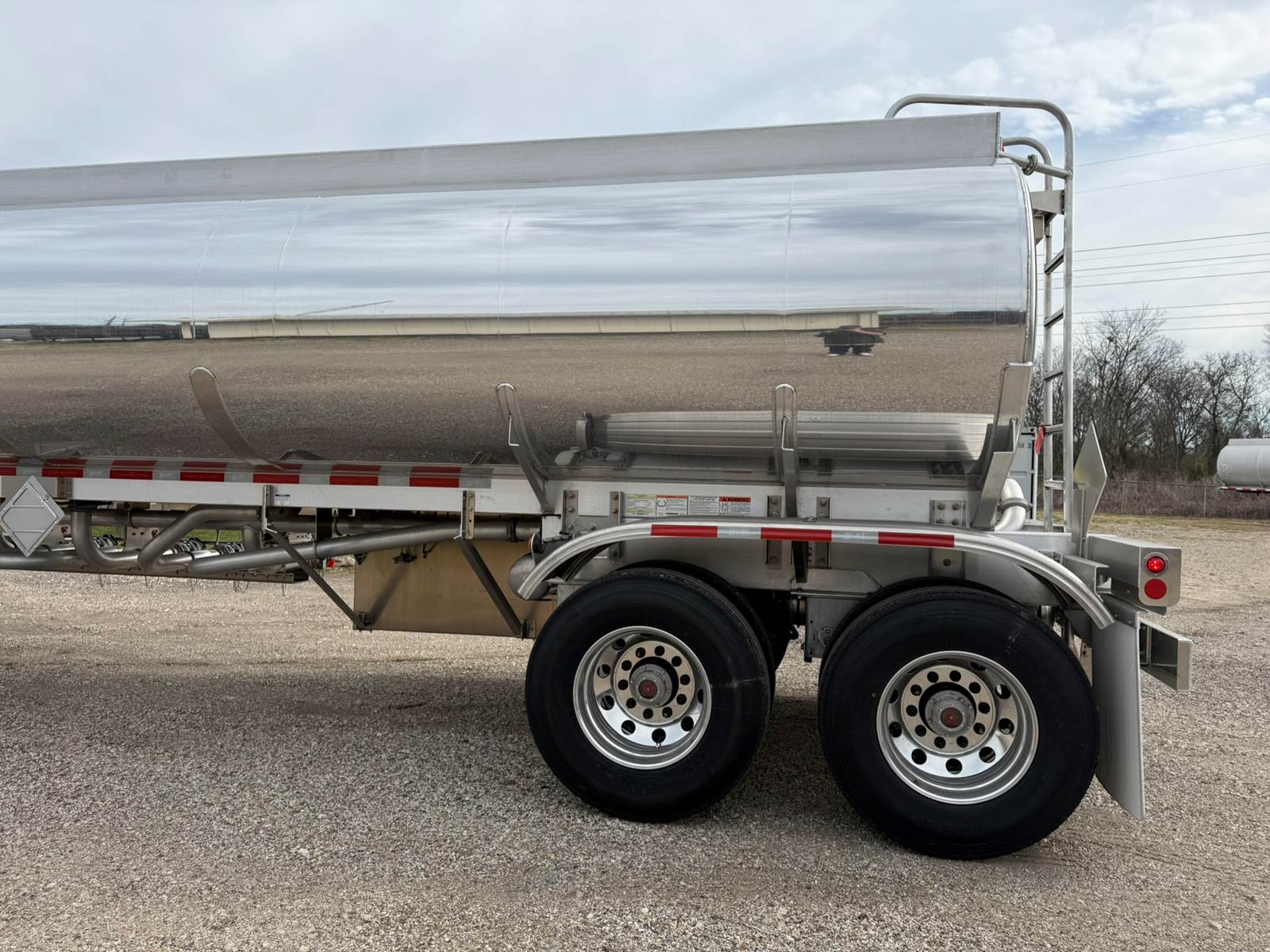

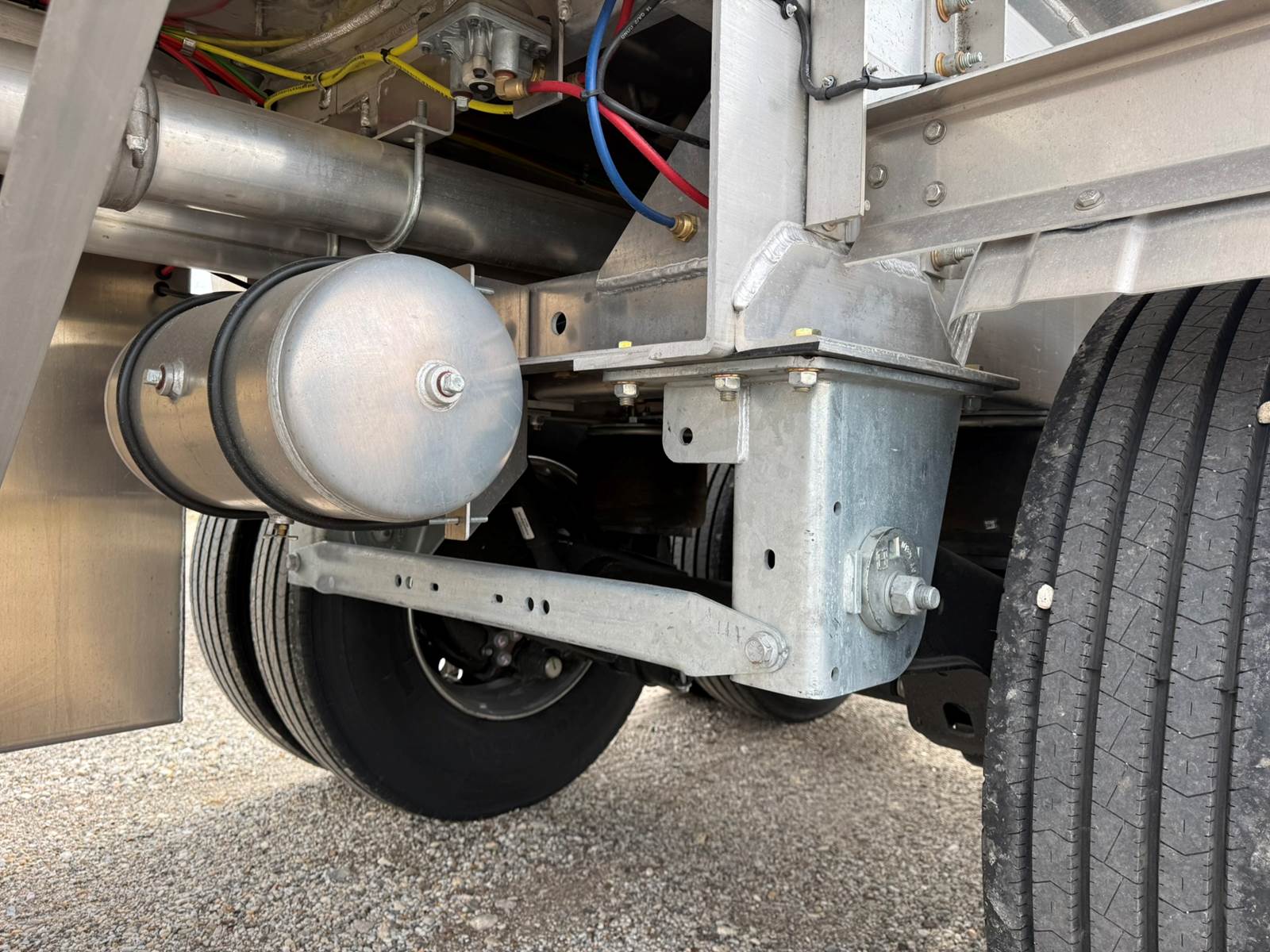

SUSPENSION & UNDERCARRIAGE:

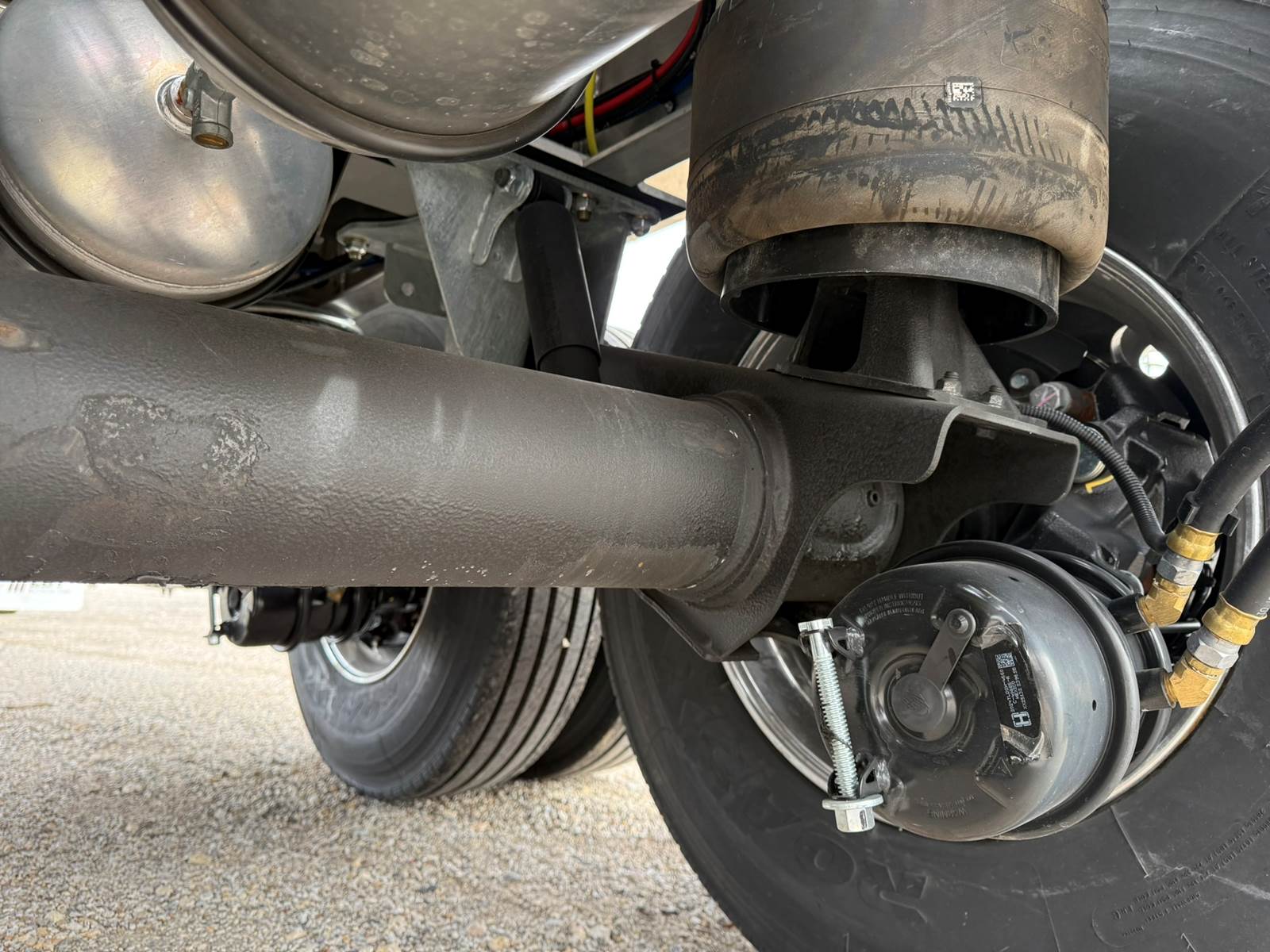

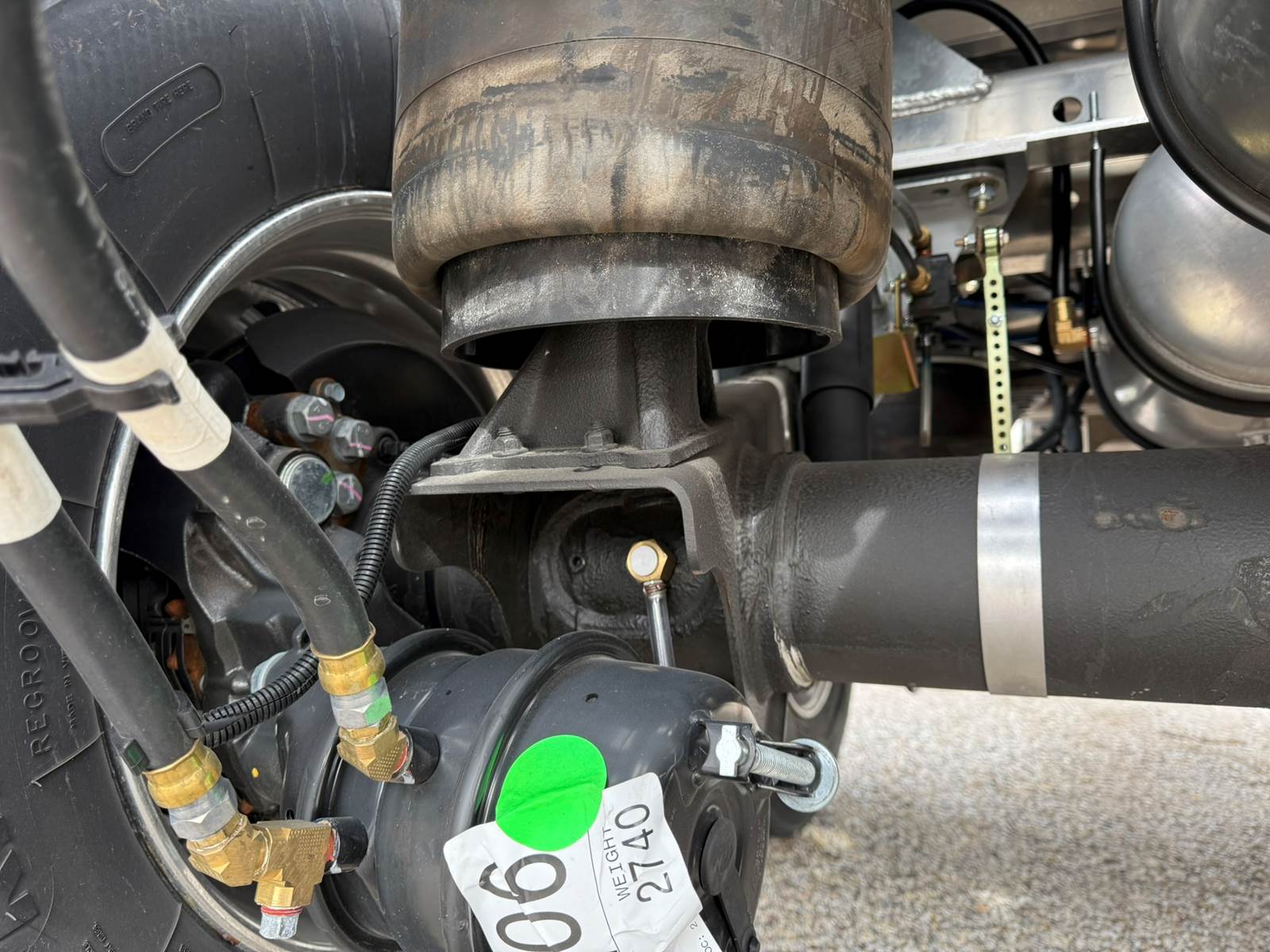

Hendrickson INTRAAX AANT23K air-ride tandem suspension
71.5” track width with bolt-on “Quick-Align” hangers
Hendrickson MAXX22T air disc brakes with Wabco 232 linings
Wabco 4S/2M ABS with Roll Stability Support (RSSplus)

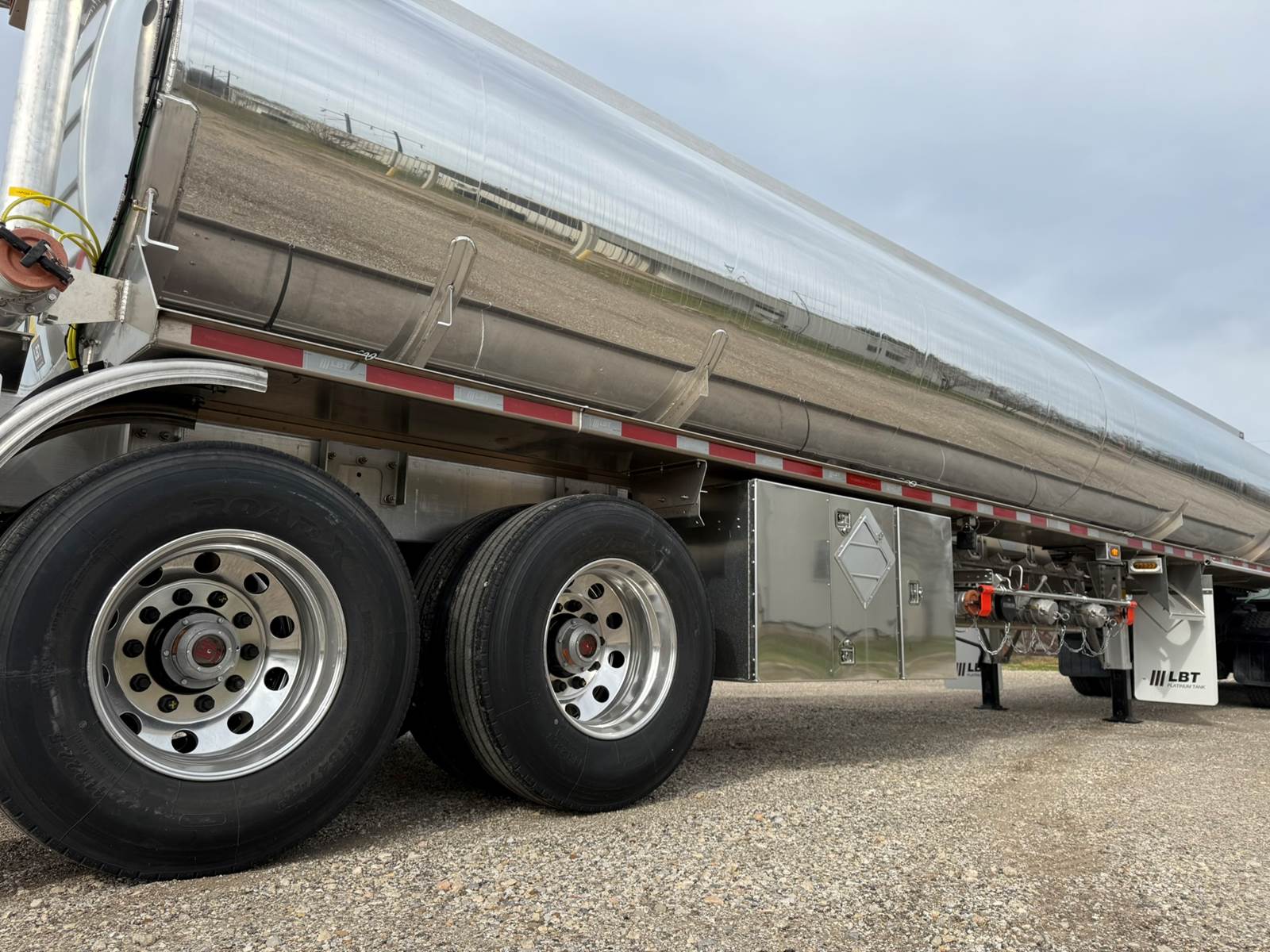

22.5” x 8.25” Accuride aluminum disc wheels
(8) 11R-22.5 Tires

DISCHARGE:
4” aluminum piping with long-radius bends
Curbside discharge location with aluminum locator bracket
(5) Jikoh JDG-105 sight glasses for product verification
WARRANTY:
LBT standard 3-year warranty on vessel assembly and all LBT manufactured parts
and components. Vendor components covered by individual vendor warranties.

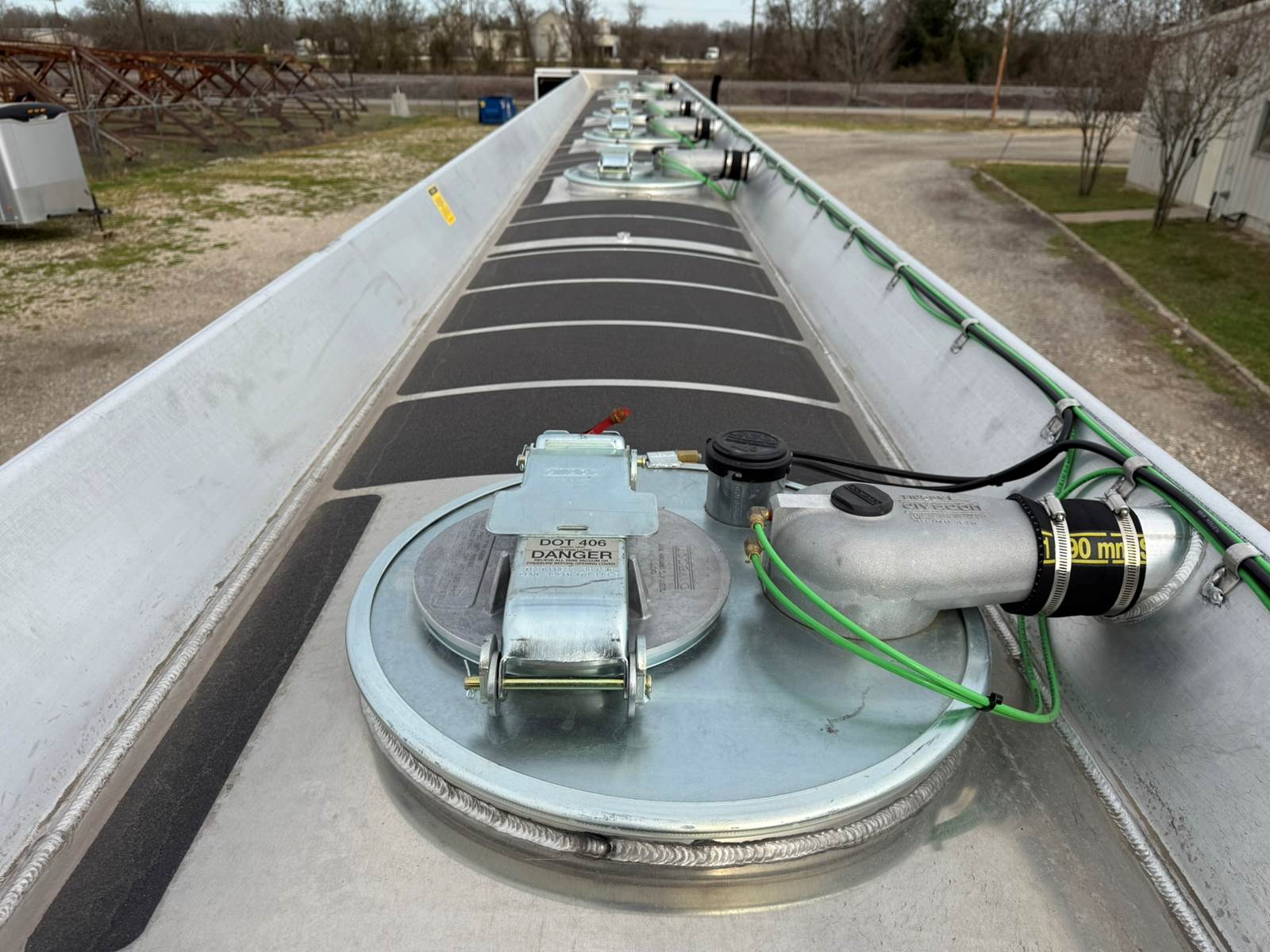

Civacon “System3” package with three-year extended warranty. Includes manholes, emergency valves, vapor vents, vapor adapters, emergency valve operator, bottom loading adapters, drop adapters, API caps, brake interlock valves and product level sensor system components as applicable
ABOUT LBT, INC.:
LBT, Inc. is a premier manufacturer of petroleum and chemical transport trailers, known for their high-strength aluminum construction, superior safety features, and industry-leading performance. The TAG-HA2-ESF9200X5SD is designed for efficient fuel transport, meeting DOT 406 regulations and offering durability for demanding fleet operations.
