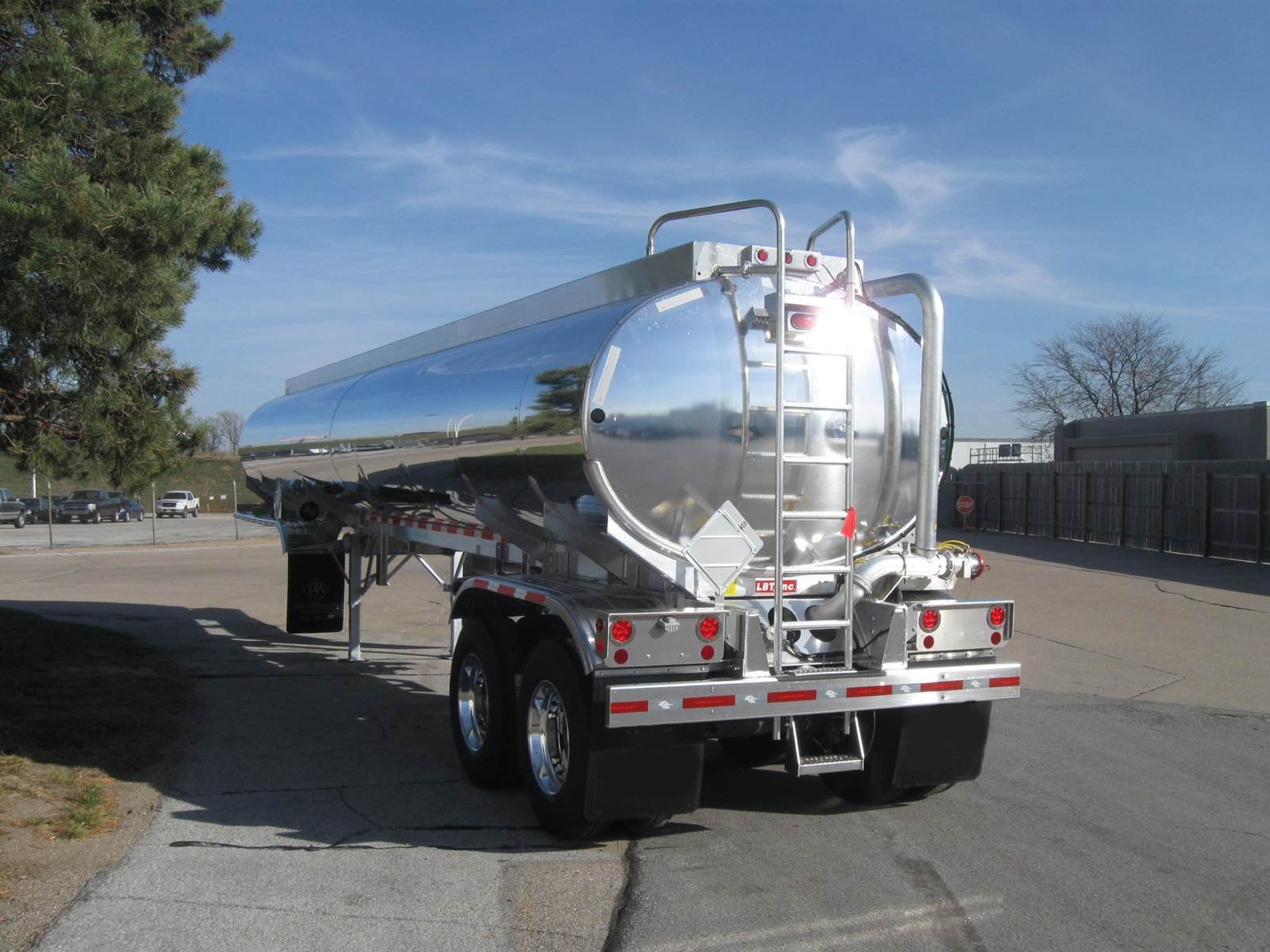

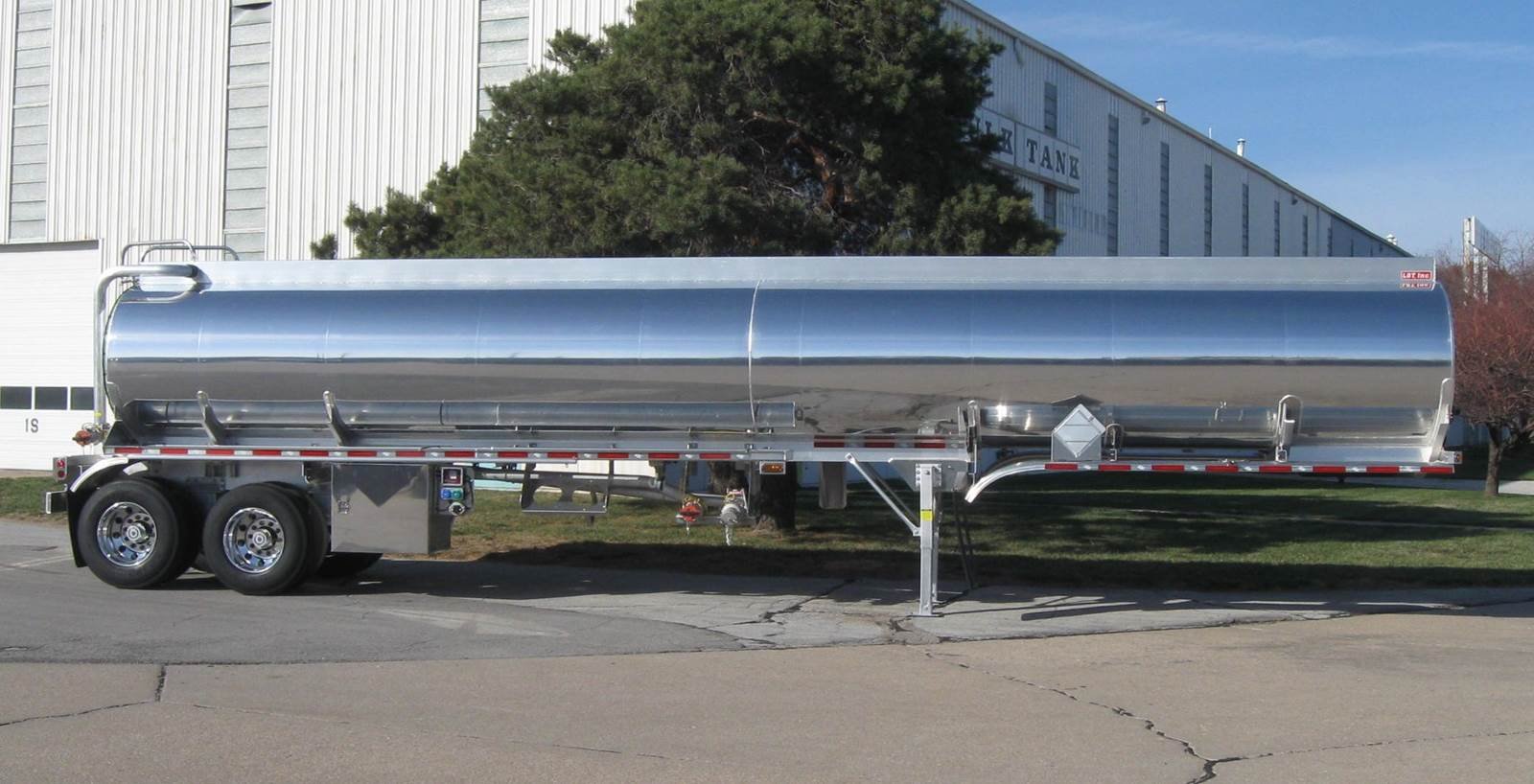

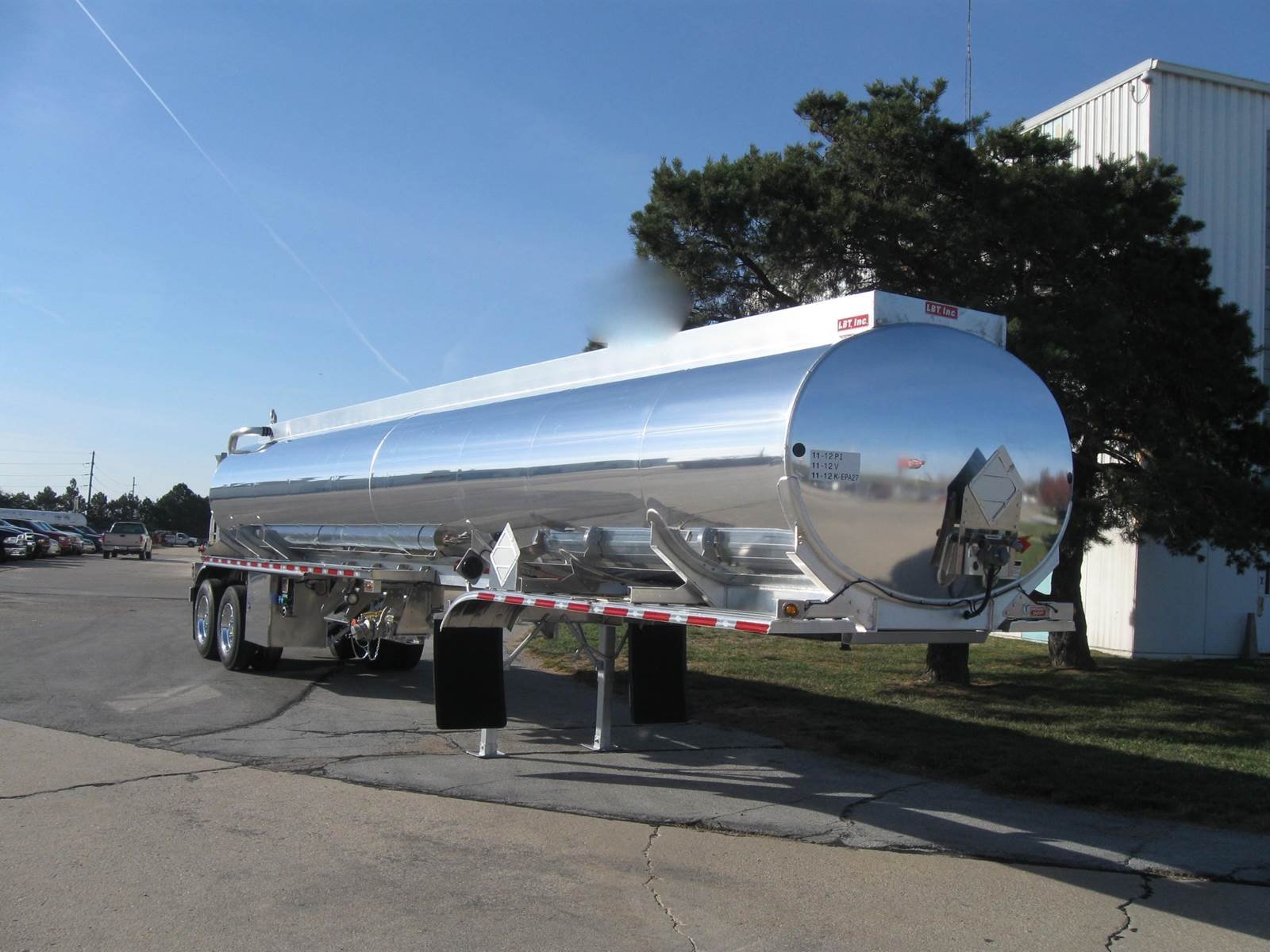

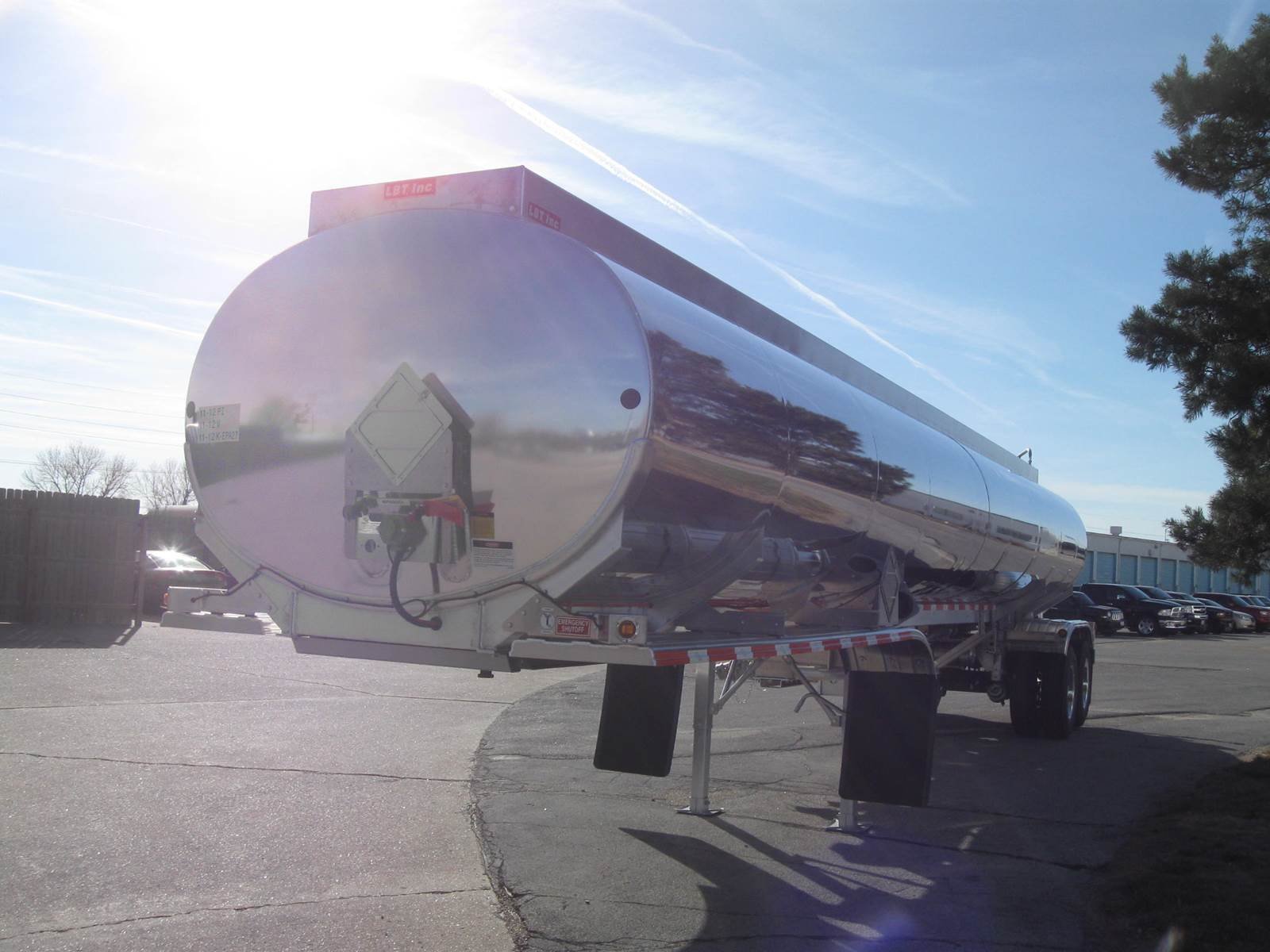

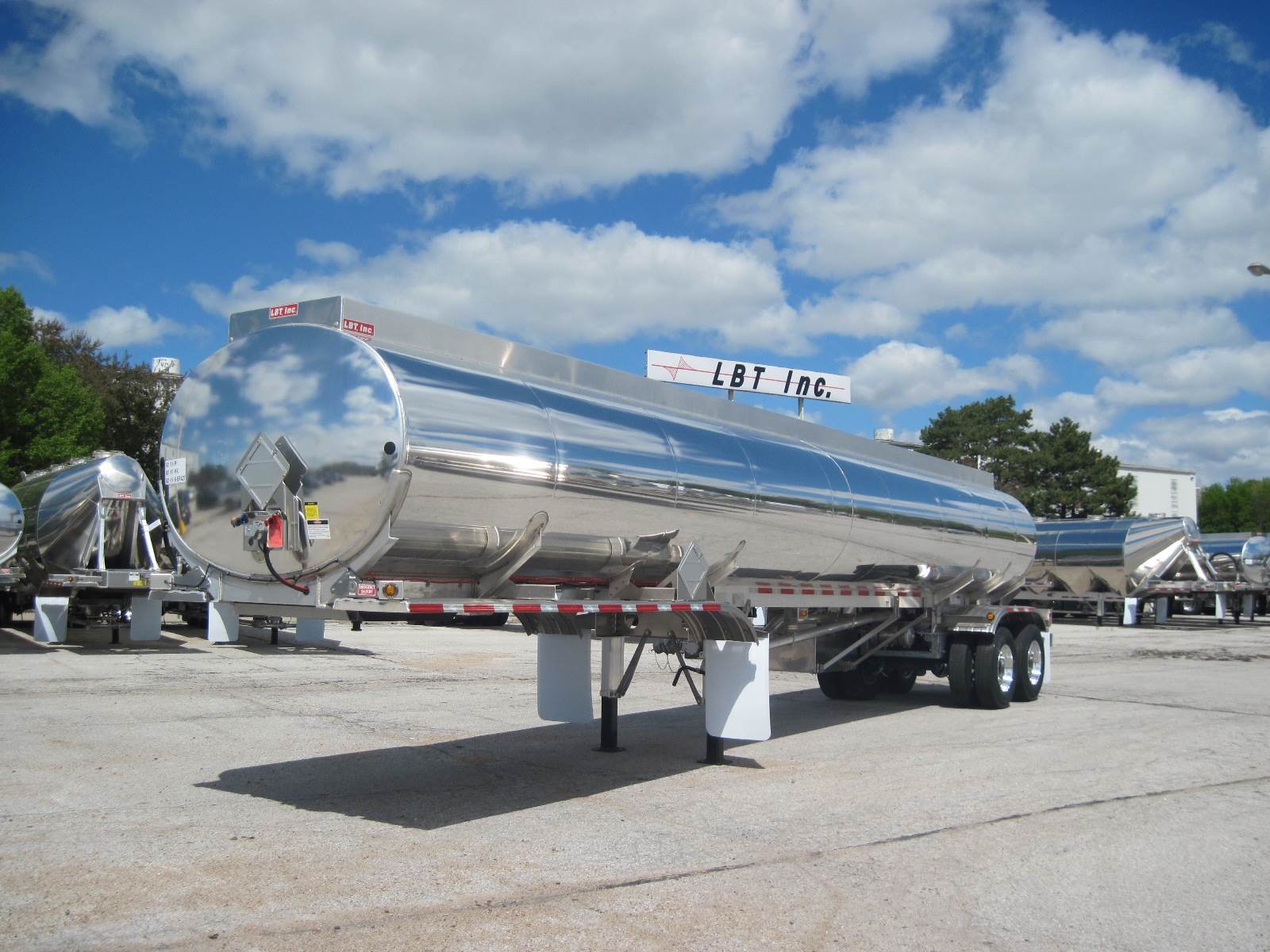

2027 LBT 9200 Gallon 1 Compartment DOT 406 Fuel Tanker Trailer – Disc Brakes Fuel Tanker Trailer

NEW 2027 LBT 9,200 Gallon Single Compartment Aluminum DOT 406 Fuel Tanker Trailer

Heavy-duty LBT petroleum tanker built for fuel hauling applications including jet fuel and ethanol. This 9,200-gallon, single-compartment configuration gives fuel haulers maximum usable capacity without the added weight and complexity of a multi-compartment barrel.

Built with an aluminum DOT 406 tank, Hendrickson INTRAAX air ride suspension, air disc brakes, aluminum wheels, Civacon loading equipment, overfill protection, and vapor recovery equipment.

Trailer Specifications
Year: 2027
Manufacturer: LBT
Capacity: 9,200 gallons + 3%
Shell-Full Capacity: 9,476 gallons
Compartments: 1
Tank Construction: Aluminum
DOT Specification: DOT 406
Commodity Rating: Up to 7.5 lbs. per gallon
Configured Commodities: Jet Fuel / Ethanol
Estimated Trailer Weight: Approx. 9,000 lbs.
Trailer Width: 96″
Approx. Overall Trailer Length: 42′ 4-1/4″
Design Pressure: 3.3 PSIG
Hydrostatic Test Pressure: 5 PSIG
Design Temperature: -20°F to 180°F

Tank & Loading Equipment
5454 aluminum tank construction
Single 20″ Civacon manhole
Civacon NV4000 pressure/vacuum normal vent
Civacon MaxAir II 5″ x 4″ air-operated internal emergency valve
4″ Civacon API openable bottom loading adapter

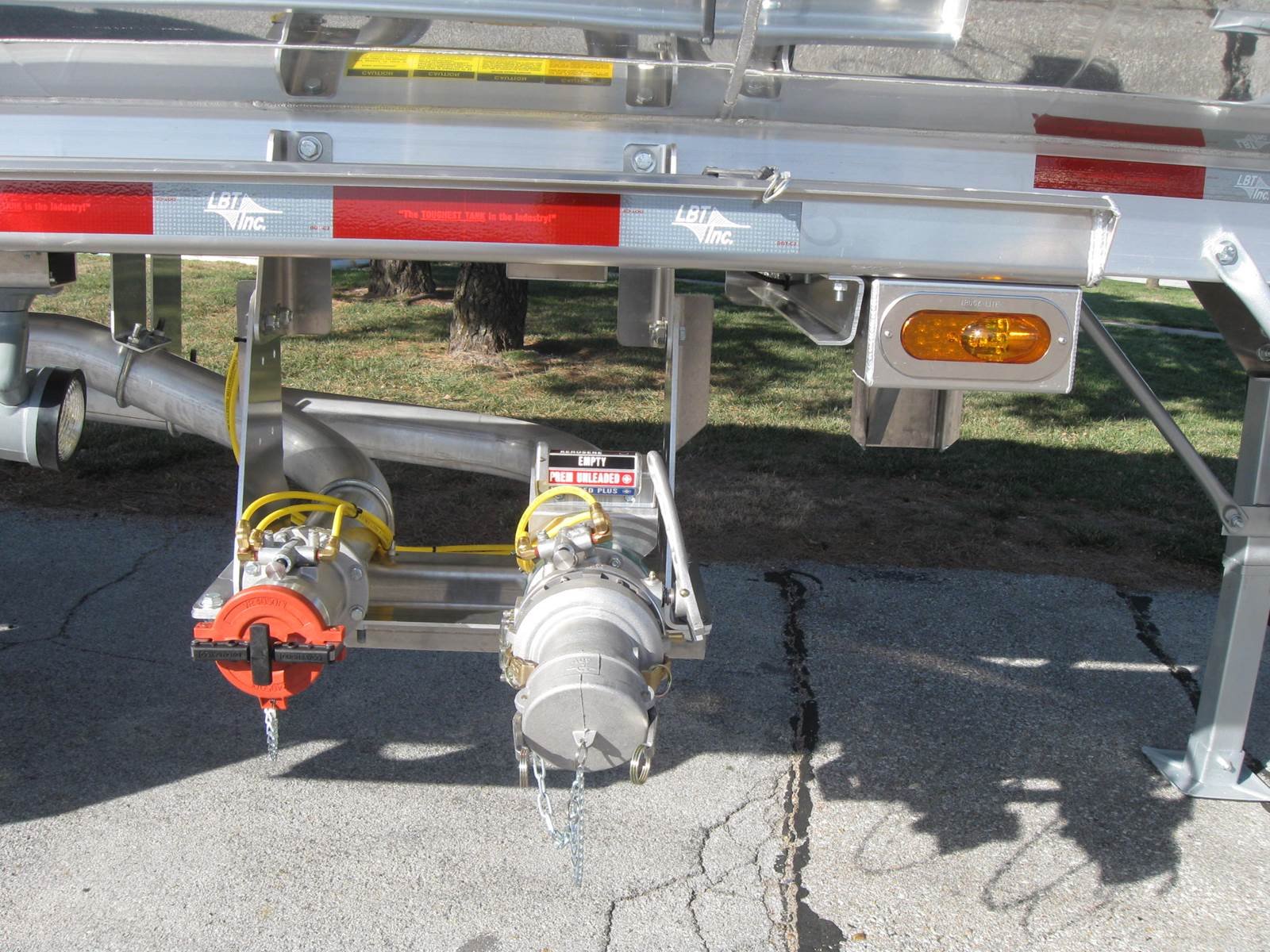

4″ gravity off-loading coupler with cam-lock dust cap
Curbside discharge
JIKOH sight glass/spacer at bottom loading adapter
Civacon CivaControl II air control system
Front emergency shutdown
Civacon ROMLink Plug-N-Load overfill prevention system
Thermistor and WOGA 5-wire optic connections
Civacon CivID electronic identification module
Sequential vapor valve
4″ vapor recovery system
Brake interlocks at loading and vapor connections
API static grounding terminals
Bottom-loading and vapor systems designed to applicable TTMA recommended practices
Chassis & Running Gear
Hendrickson INTRAAX air ride suspension
49″ axle spacing
Hendrickson MAXX22T air disc brakes
Wabco 4S/2M ABS with Roll Stability Support
Hendrickson HXL3 extended-life hubs
(8) 22.5″ x 8.25″ Accuride Accu-Lite aluminum wheels
(8) 11R22.5 Sailun RoadX radial tires
Jost AX150 aluminum landing gear
Adjustable upper coupler
Aluminum front and rear fenders
Aluminum rear bumper

Additional Equipment
21′ hose tray on curbside
Full-length non-skid tank-top walkway

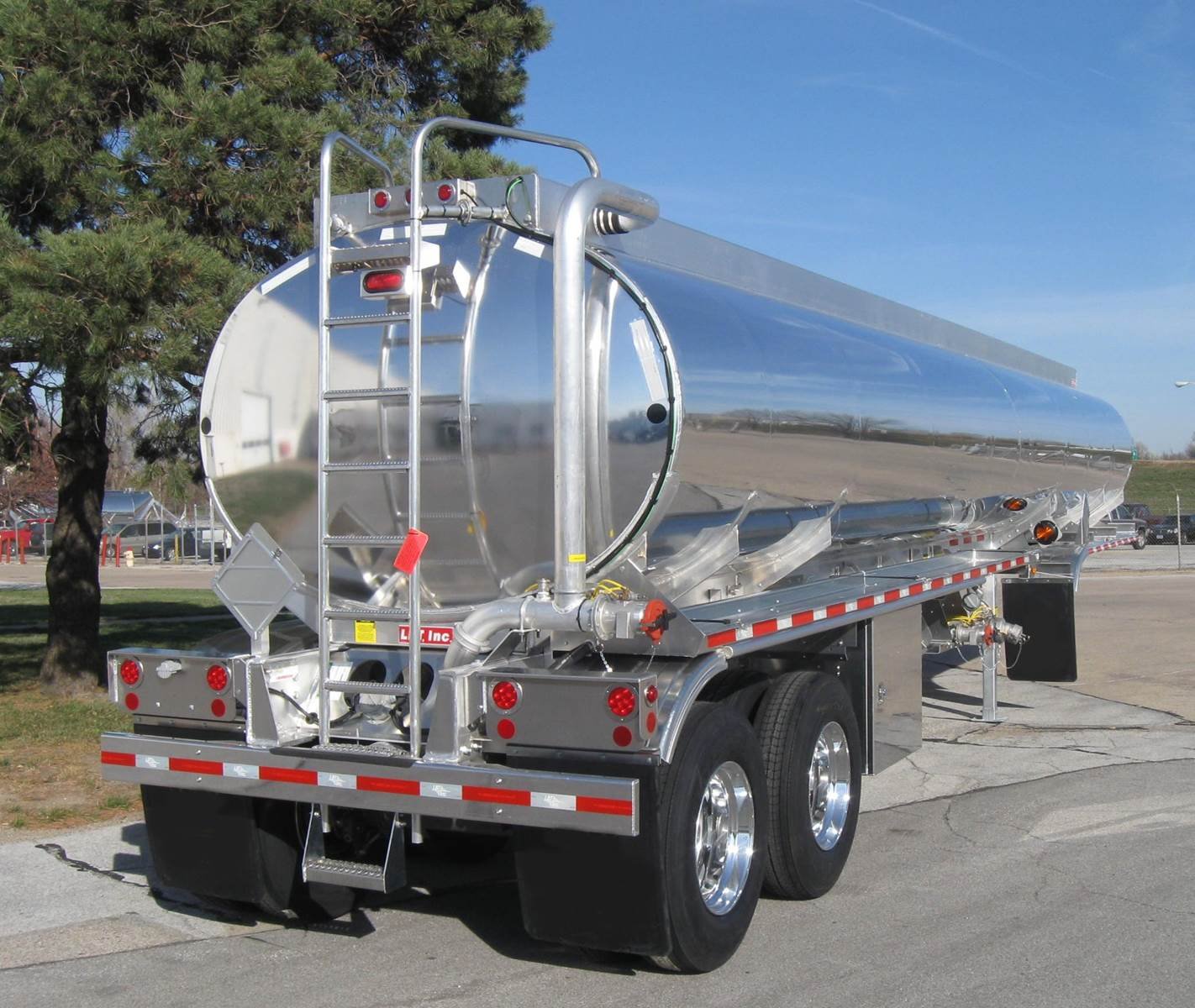

Rear aluminum ladder
36″ aluminum fitting cabinet
LED lighting throughout
LED discharge-area work light
Four aluminum placard holders
Registration holder
