2026 LBT 9200 Gallon 5 Compartment | Disc Brakes | Fuel Tanker Trailers

New 2026 LBT 9200 Gallon 5 Compartment DOT 406 Fuel Tank Trailer
🚛 Manufacturer: LBT, Inc.

🛢️ Model: TAG-HA2-ESF9200X5SD

SPECIFICATIONS:
Capacity: 9,200 gallons (+3% tolerance)
Compartments: 5 (3100/1250/1100/1100//2650 gallons)
Overall Length: 42’4.5” (Trailer)
Trailer Weight: 9,800 LBS

CONSTRUCTION & FRAME:
Elliptical straight frame design
Bright machine-polished aluminum finish
Single bulkheads between compartments 1-4, double bulkheads at compartment 5
Bolt-on aluminum fenders (roadside), hose trough as curbside fender
Jost AX150 aluminum landing gear with stainless steel cross shaft

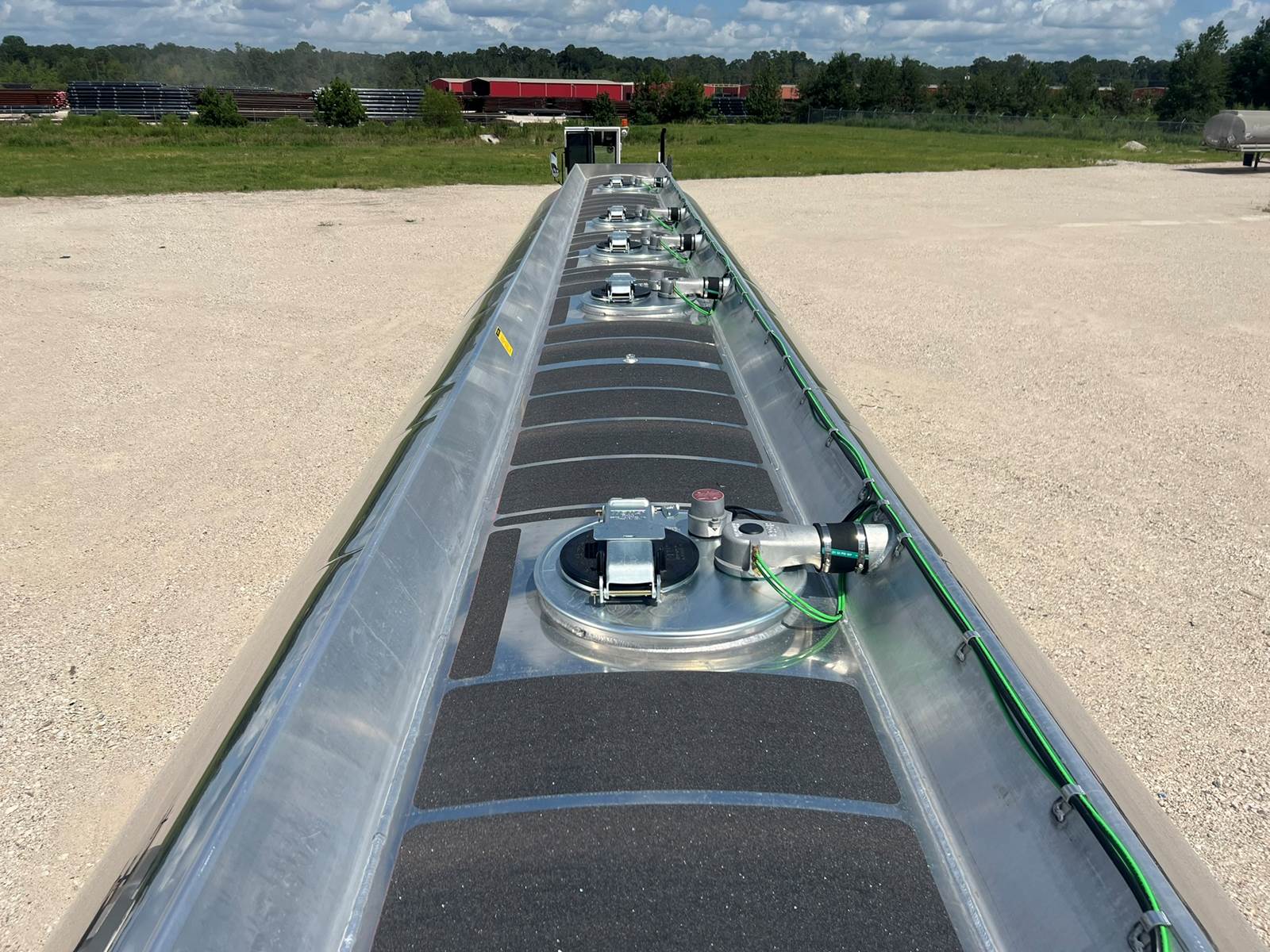

MANWAY & VENTING:
Manholes: (5) Betts PPVL820BXB, 20” diameter covers with 10” offset fill
Vapor Recovery: 4” aluminum external vapor line with dual outlets
Emergency Valves: Betts EV46911ALTS 4” aluminum air-operated valves
Overfill System: CIVACON ROM III with optic and thermistor plugs
Sequential interlock vapor valve operation for added safety

SUSPENSION & UNDERCARRIAGE:
Hendrickson INTRAAX AANT23K air-ride tandem suspension
71.5” track width with bolt-on “Quick-Align” hangers
Hendrickson MAXX22T air disc brakes with Wabco 232 linings
Wabco 4S/2M ABS with Roll Stability Support (RSSplus)
22.5” x 8.25” Accuride aluminum disc wheels
(8) 11R-22.5 Tires

DISCHARGE:
4” aluminum piping with long-radius bends
Curbside discharge location with aluminum locator bracket
(5) CIVACON 4” x 4” bottom-loading API adapters
(5) Jikoh JDG-105 sight glasses for product verification
Betts “Push-Pull” master control emergency shutdown system

ABOUT LBT, INC.:
LBT, Inc. is a premier manufacturer of petroleum and chemical transport trailers, known for their high-strength aluminum construction, superior safety features, and industry-leading performance. The TAG-HA2-ESF9200X5SD is designed for efficient fuel transport, meeting DOT 406 regulations and offering durability for demanding fleet operations.
