2026 Polar 9300 Gallon Fuel Tanker Trailers

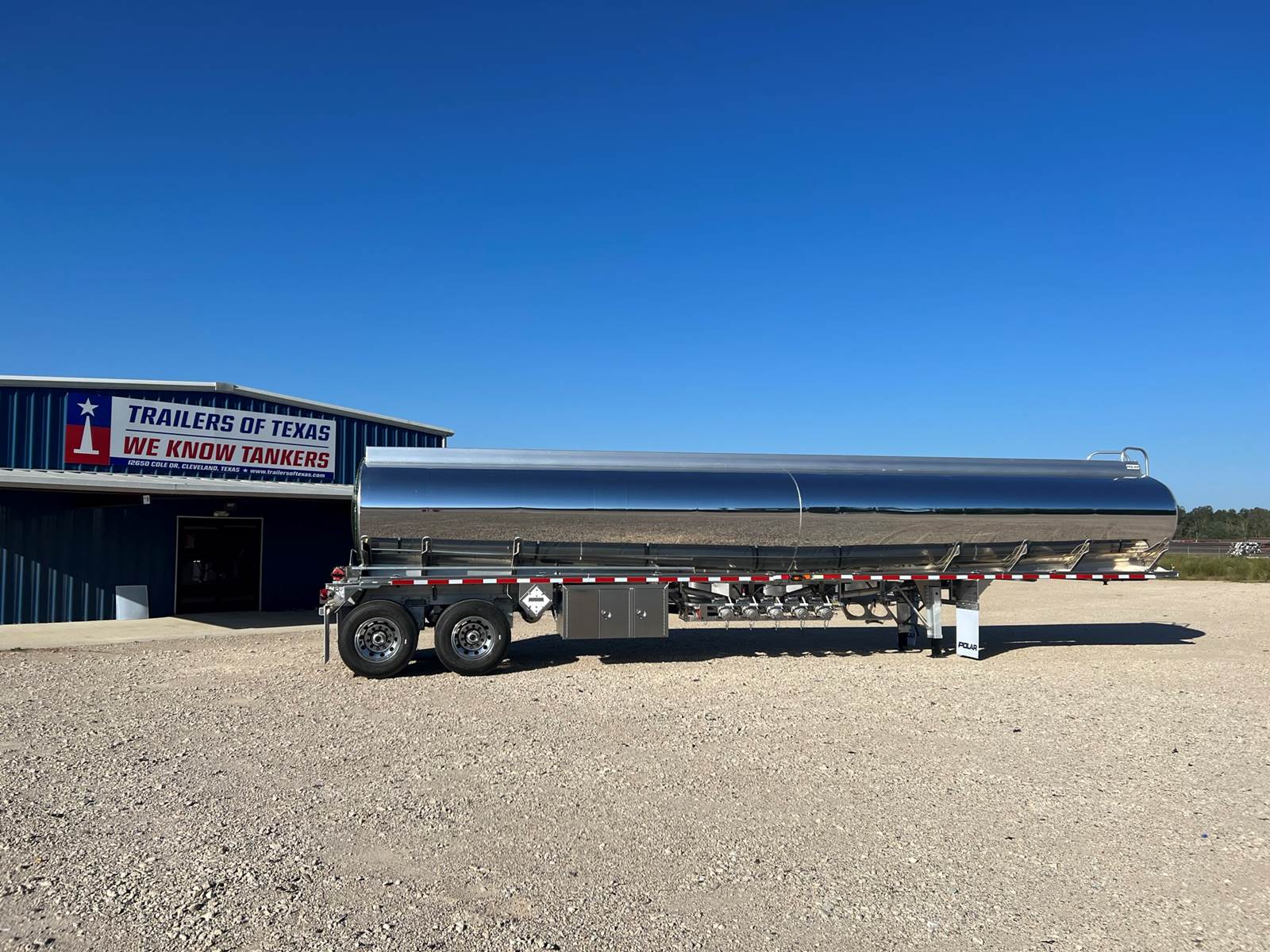

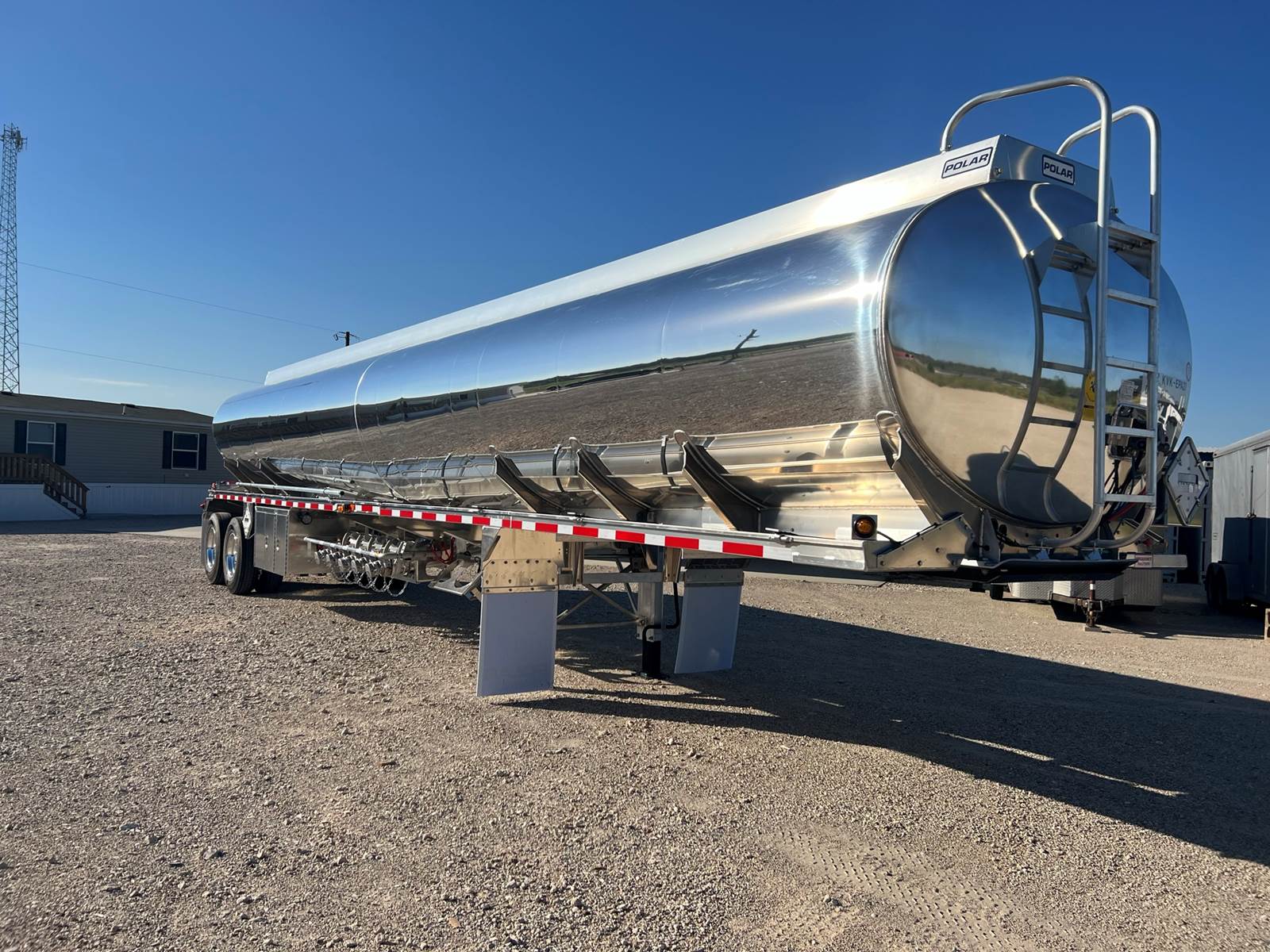

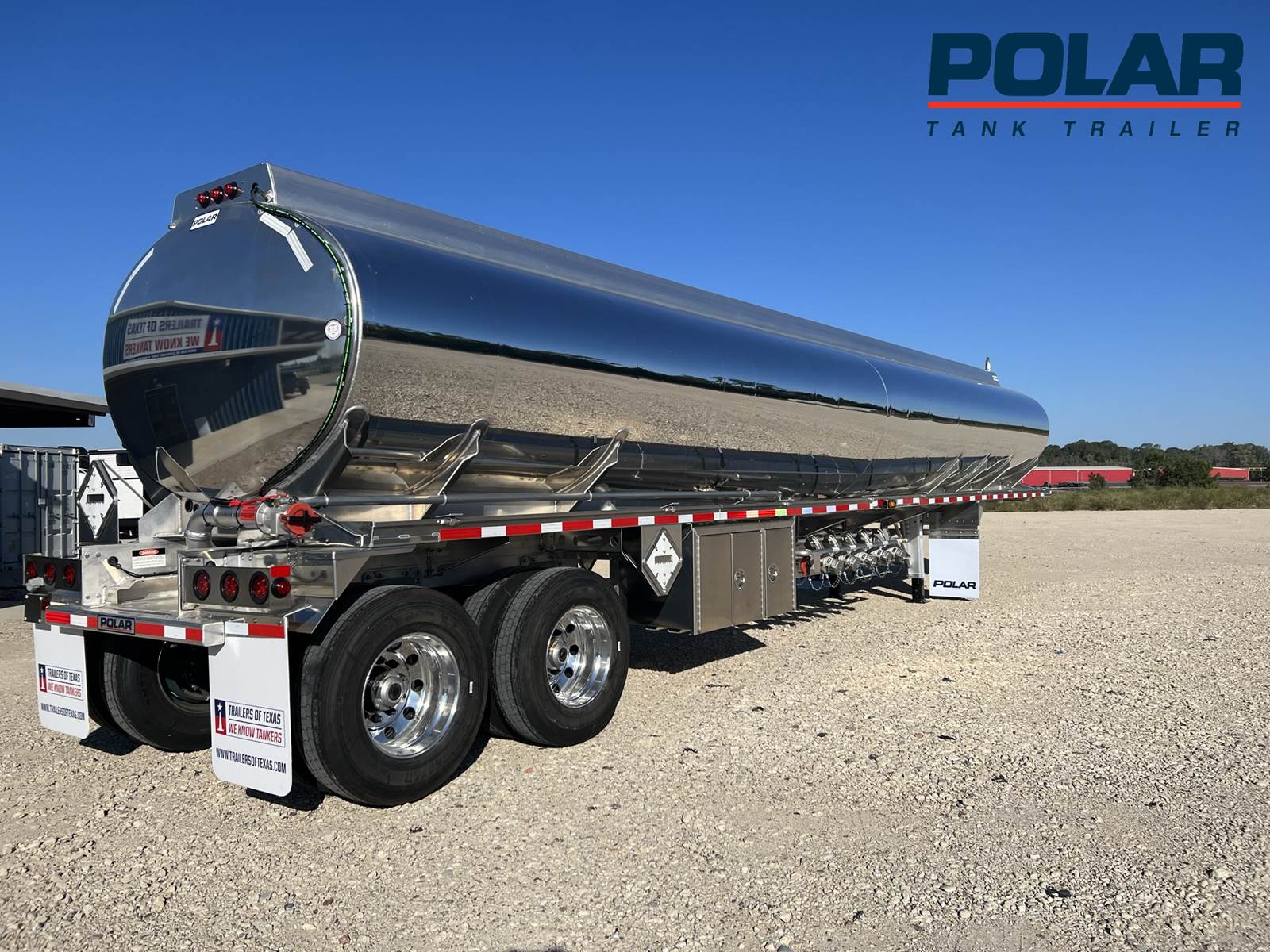

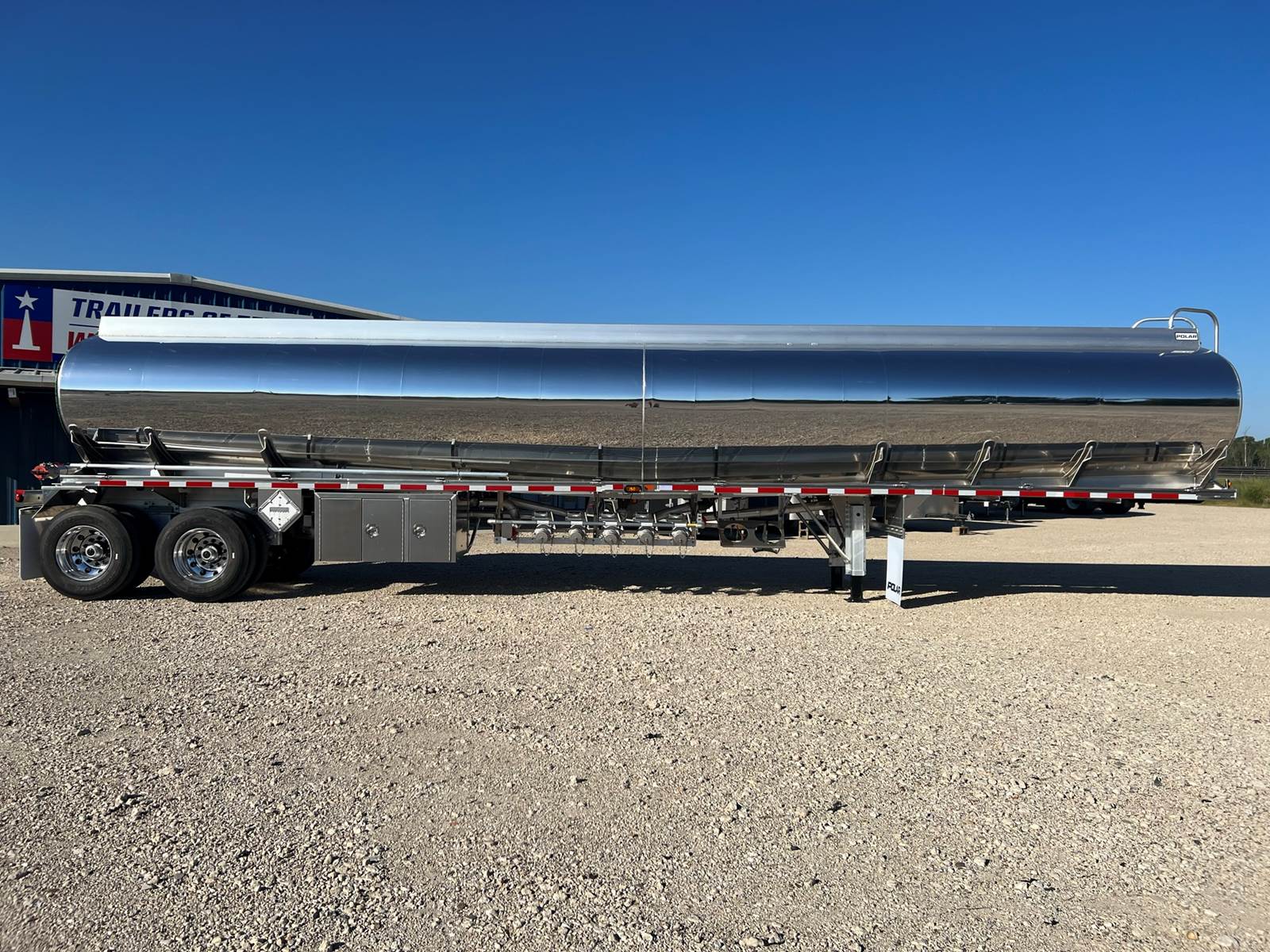

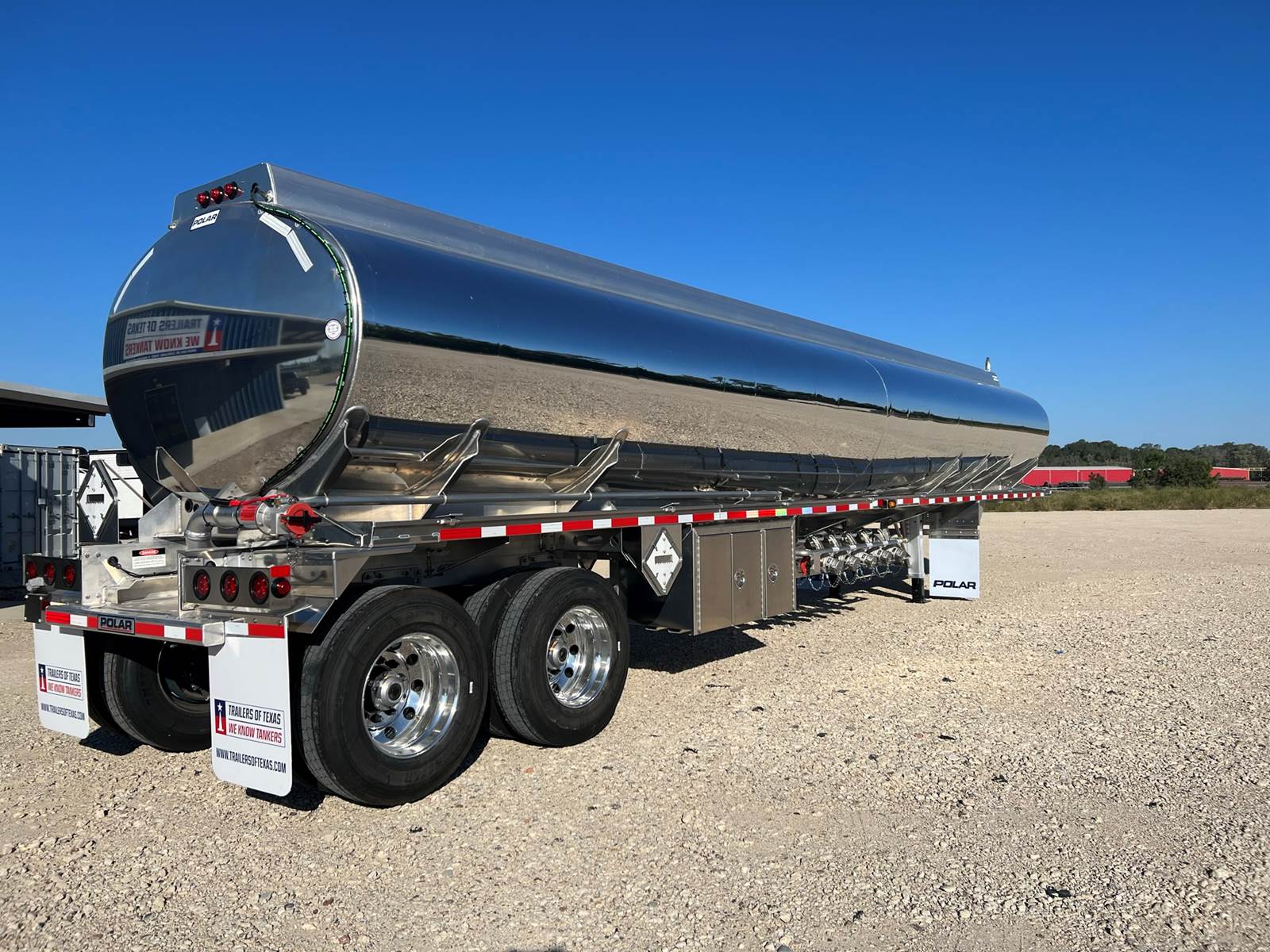

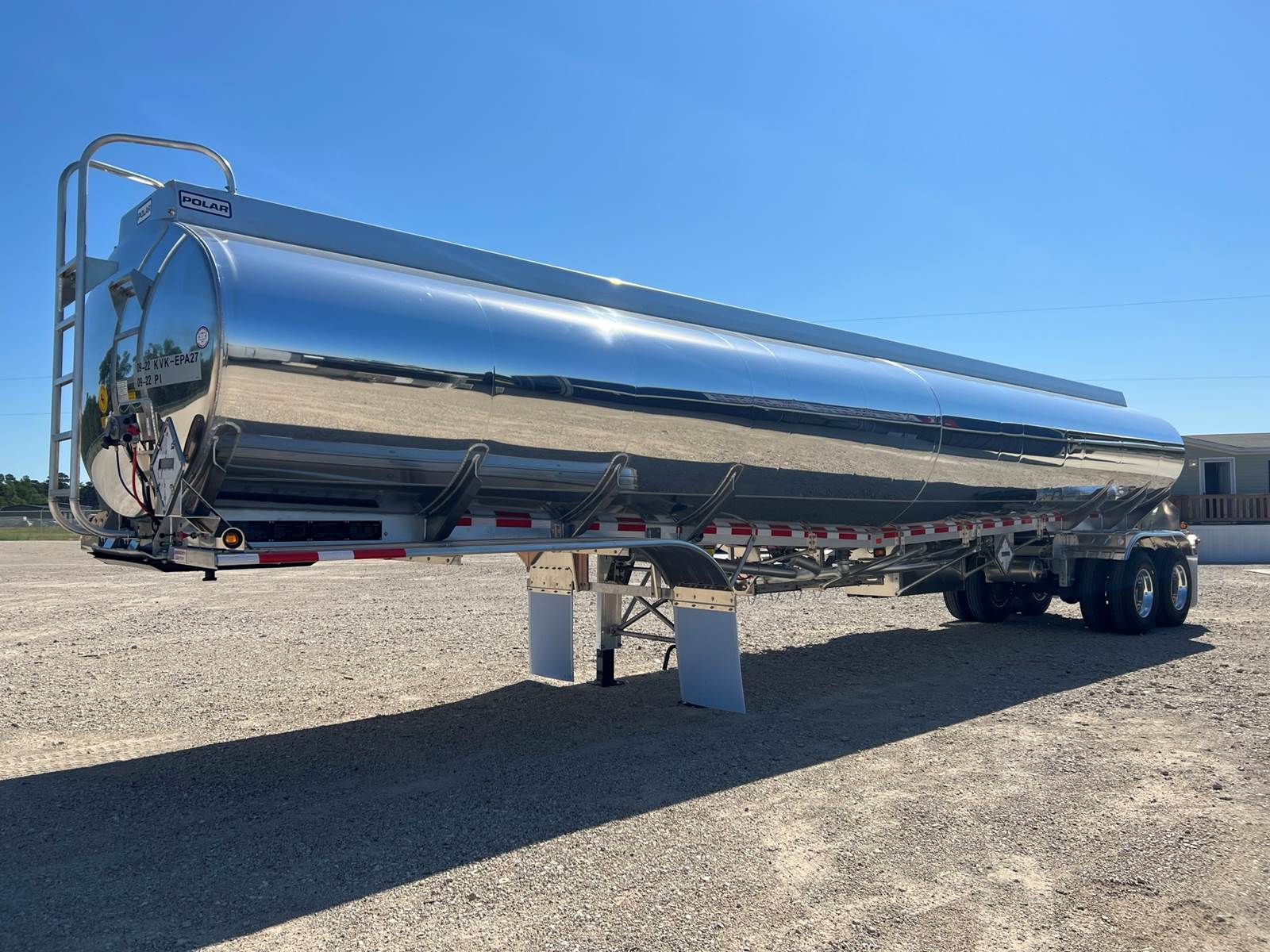

New Polar 9300 Gallon 5 Compartment Double Taper Tank Trailer

SPECIFICATIONS:
Capacity: 9,300 gallons (+3% tolerance)
Compartments: 5 (3000//1500//1200//1000//2600)
Barrel Material: Aluminum
Shell Thickness: .204” bottom, .180” top & sides
Head & Baffle Thickness: .250” and .190” aluminum
Overall Length: 43’6”
Product Weight: 7.5 lb/gal

CONSTRUCTION & FRAME:
Elliptical, tapered, baffled tank design
Polished aluminum finish
Full-length structural aluminum overturn protection
Aluminum frame with front-to-rear outriggers

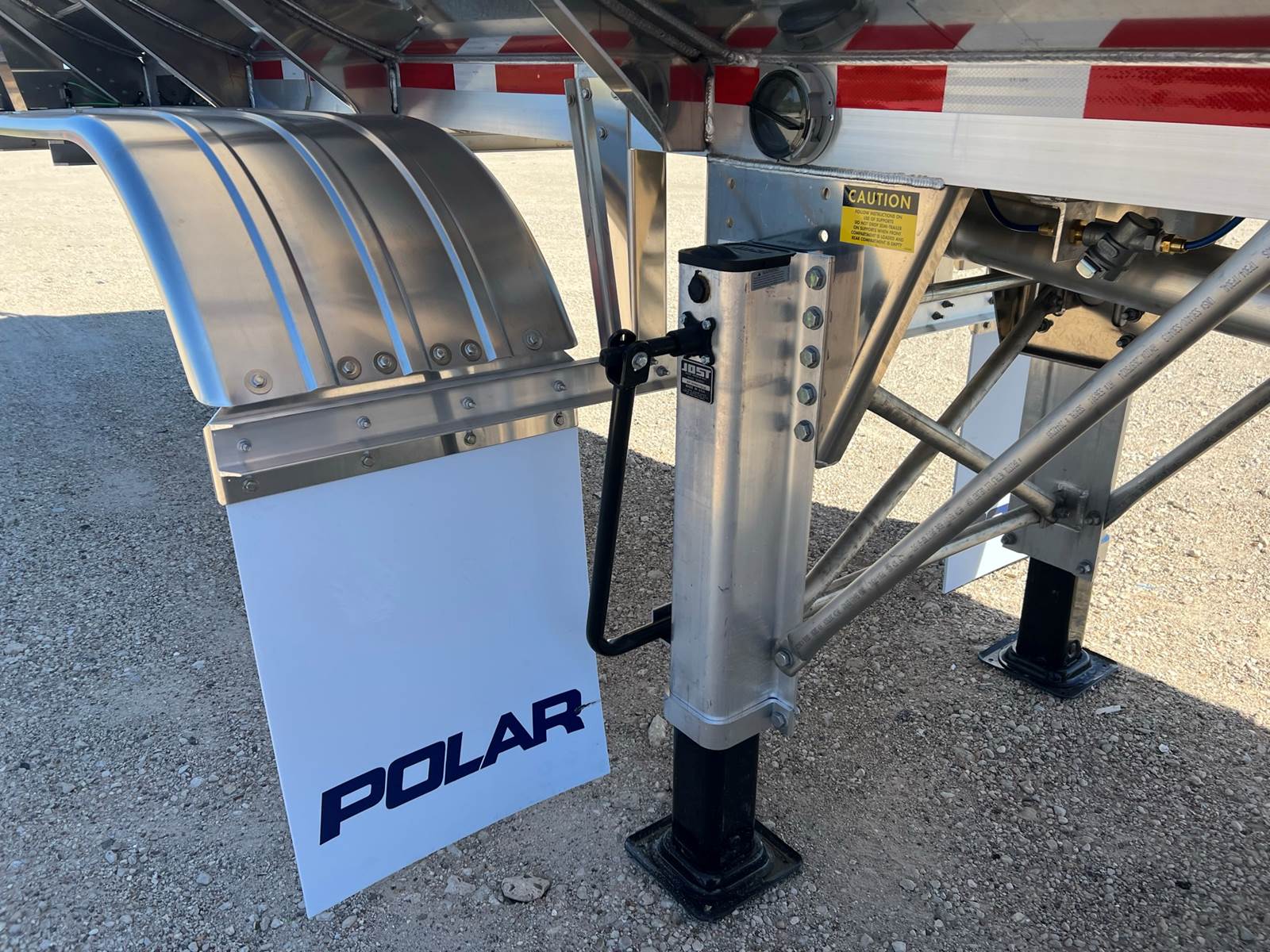

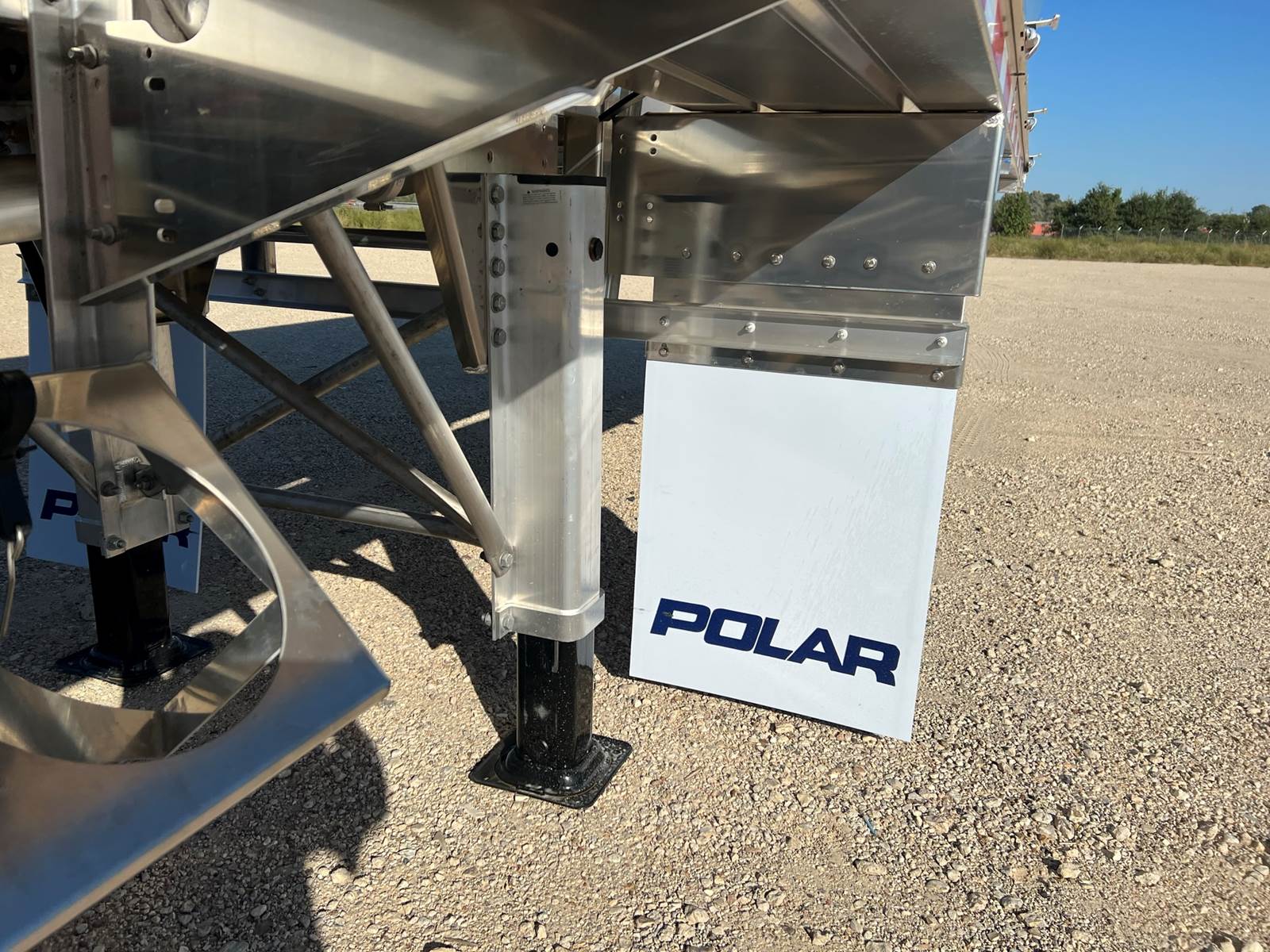

Jost AX100 aluminum landing gear (55,000 lbs. rated lift)

MANWAY & VENTING:
Manholes: (5) Betts PPVL816BX 16” steel covers with 10” offset fill
Vapor Recovery: 3” pipe stubs in curbside overturn rail

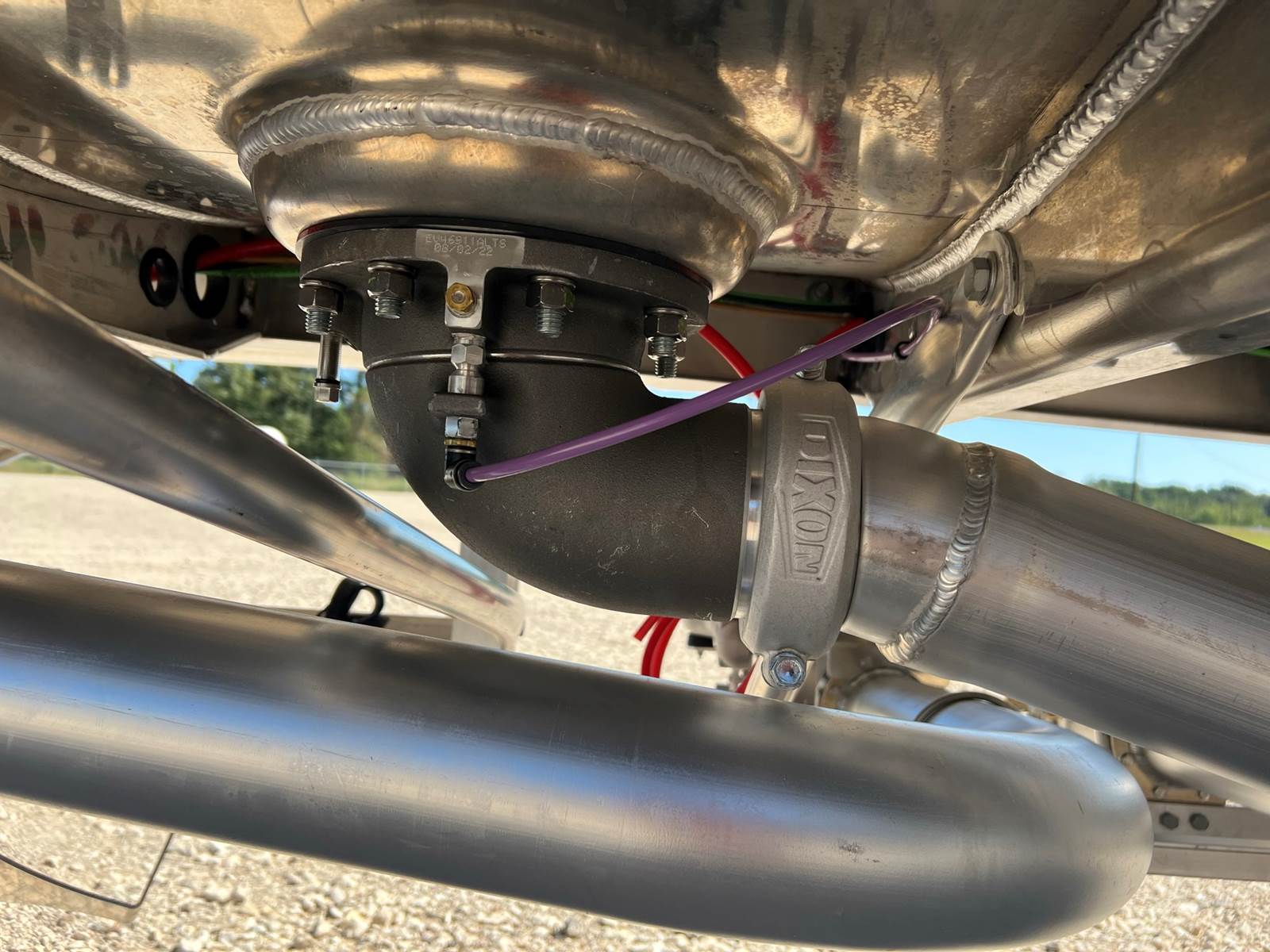

Emergency Valves: Betts EV46911ALTS 4”x4” 90-degree aluminum valves
Overfill System: Dixon Bayco Flo-tech FT2805 Checkmate two-wire system
Interlock Safety Bar & Brake Interlock Valve

SUSPENSION & UNDERCARRIAGE:

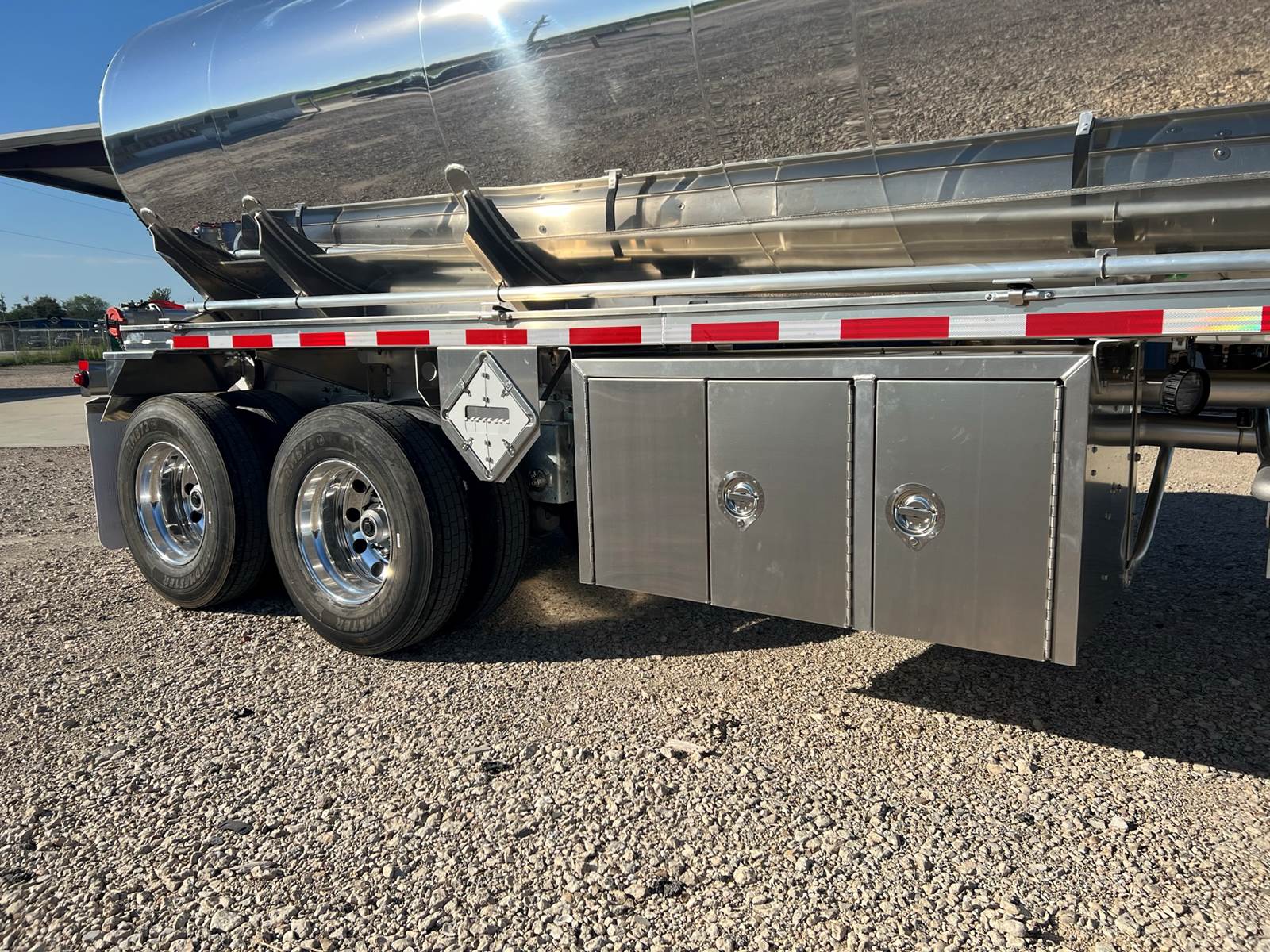

Hendrickson INTRAAX AANT23K tandem axle suspension

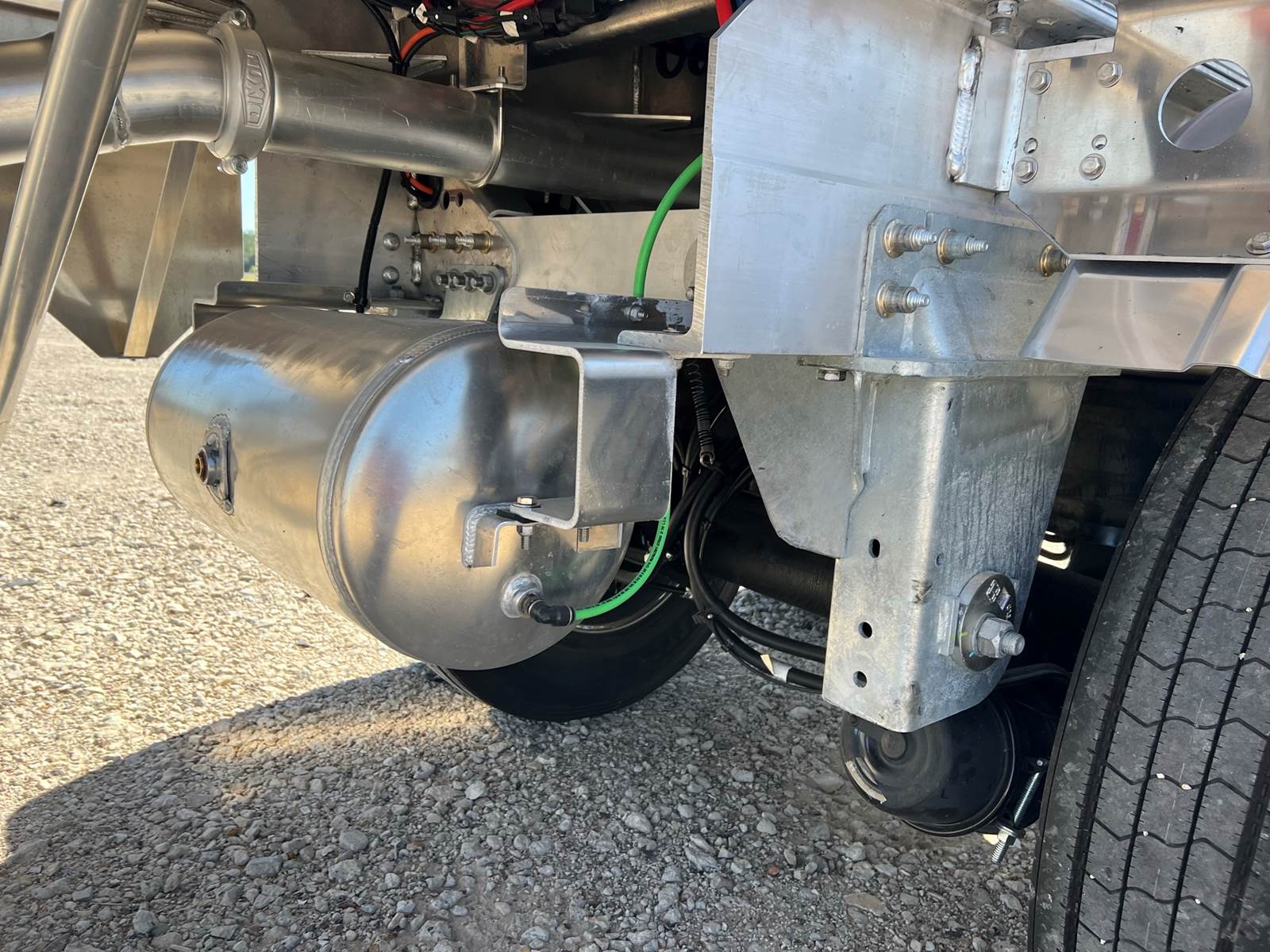

Aluminum subframe with bolt-on hangers
22.5” x 8.25” aluminum polished wheels
11R-22.5 Load Range G tires
OEM 4S/2M ABS with roll stability system

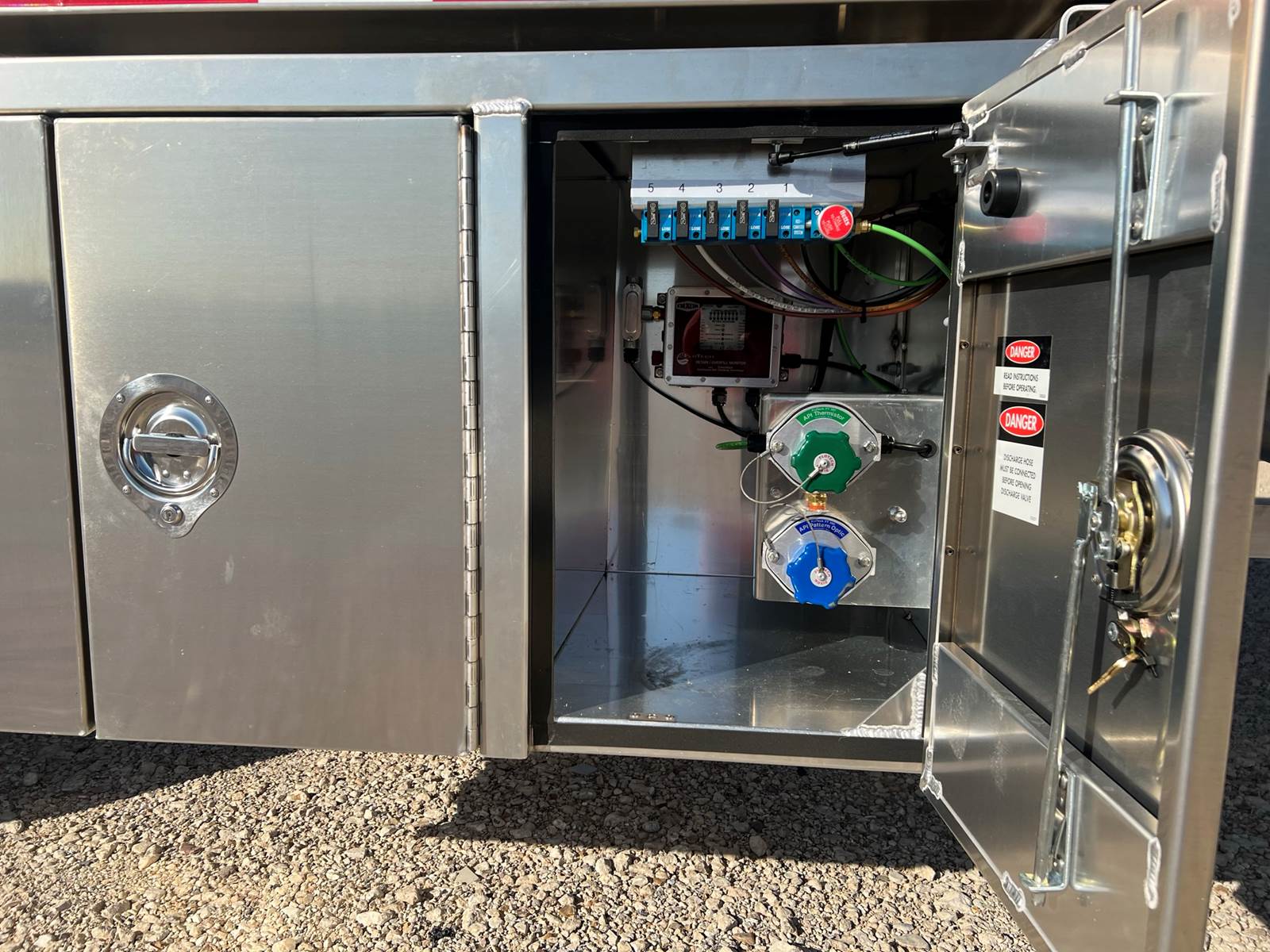

PLUMBING & DISCHARGE:

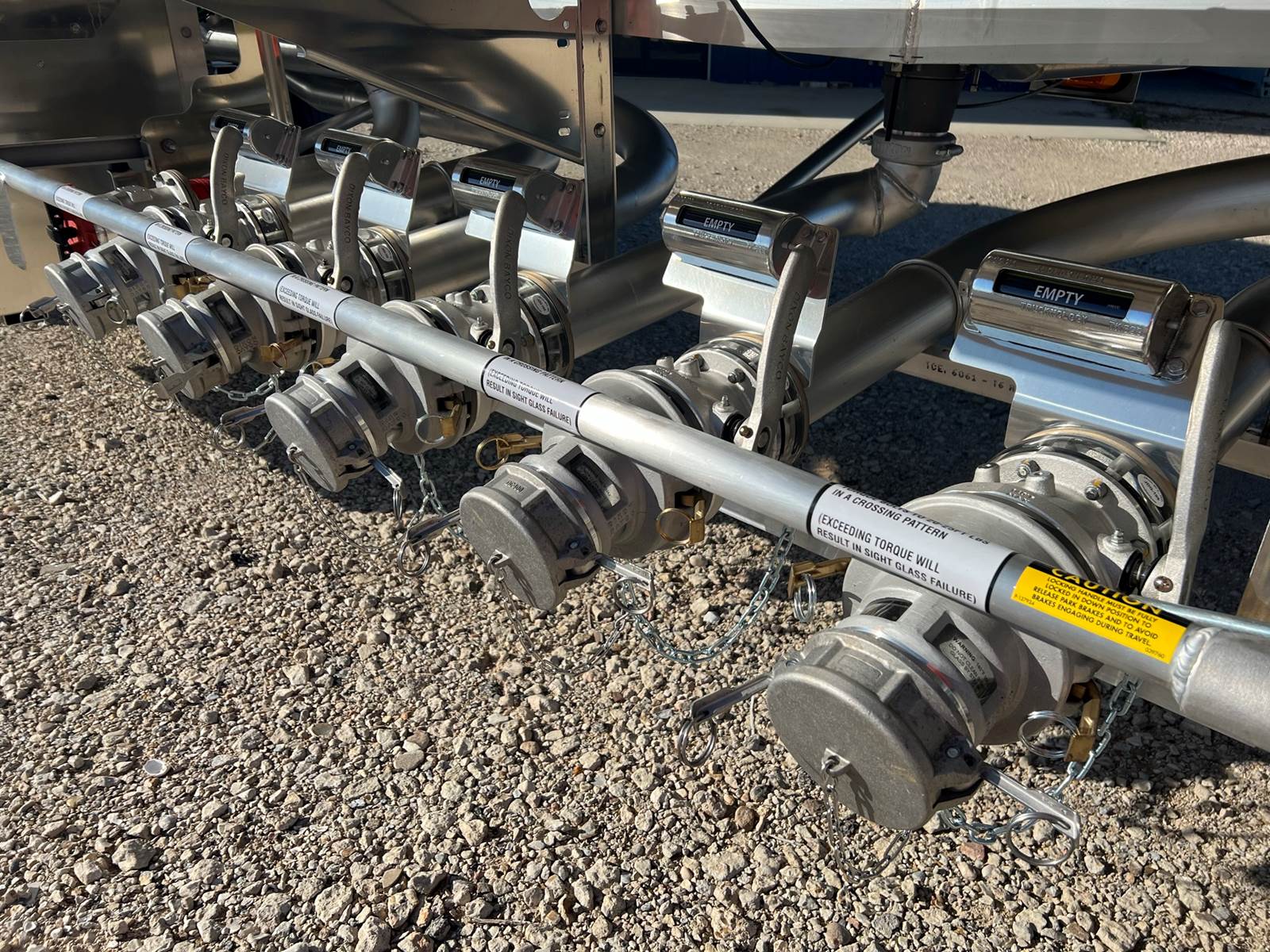

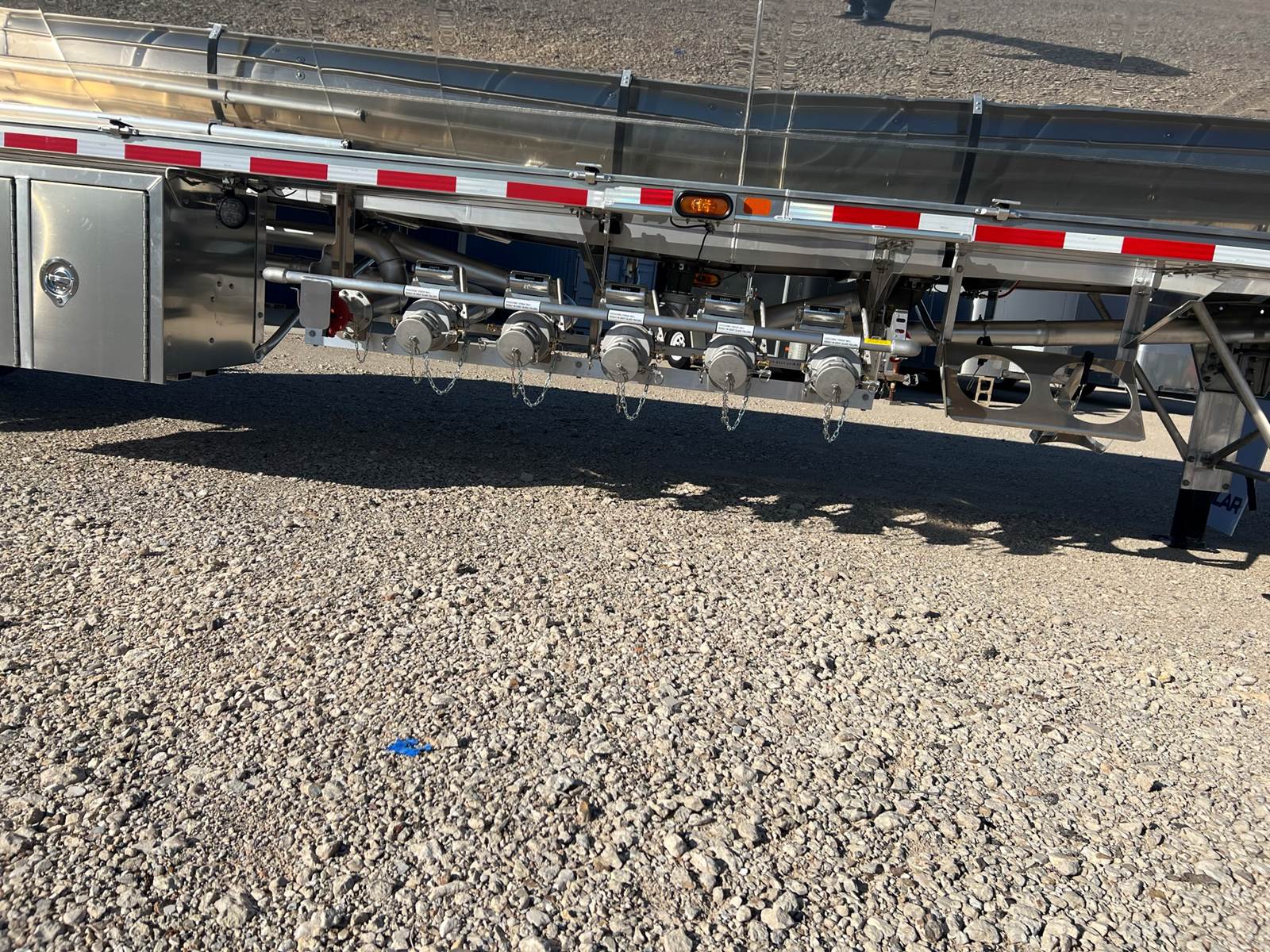

(5) Dixon/Bayco 4” x 4” gravity drop adapters with sight glass & caps
(5) Jikoh sight glasses for easy product verification

LIGHTING & SAFETY FEATURES:
Truck-Lite LED grommet-mount lighting system

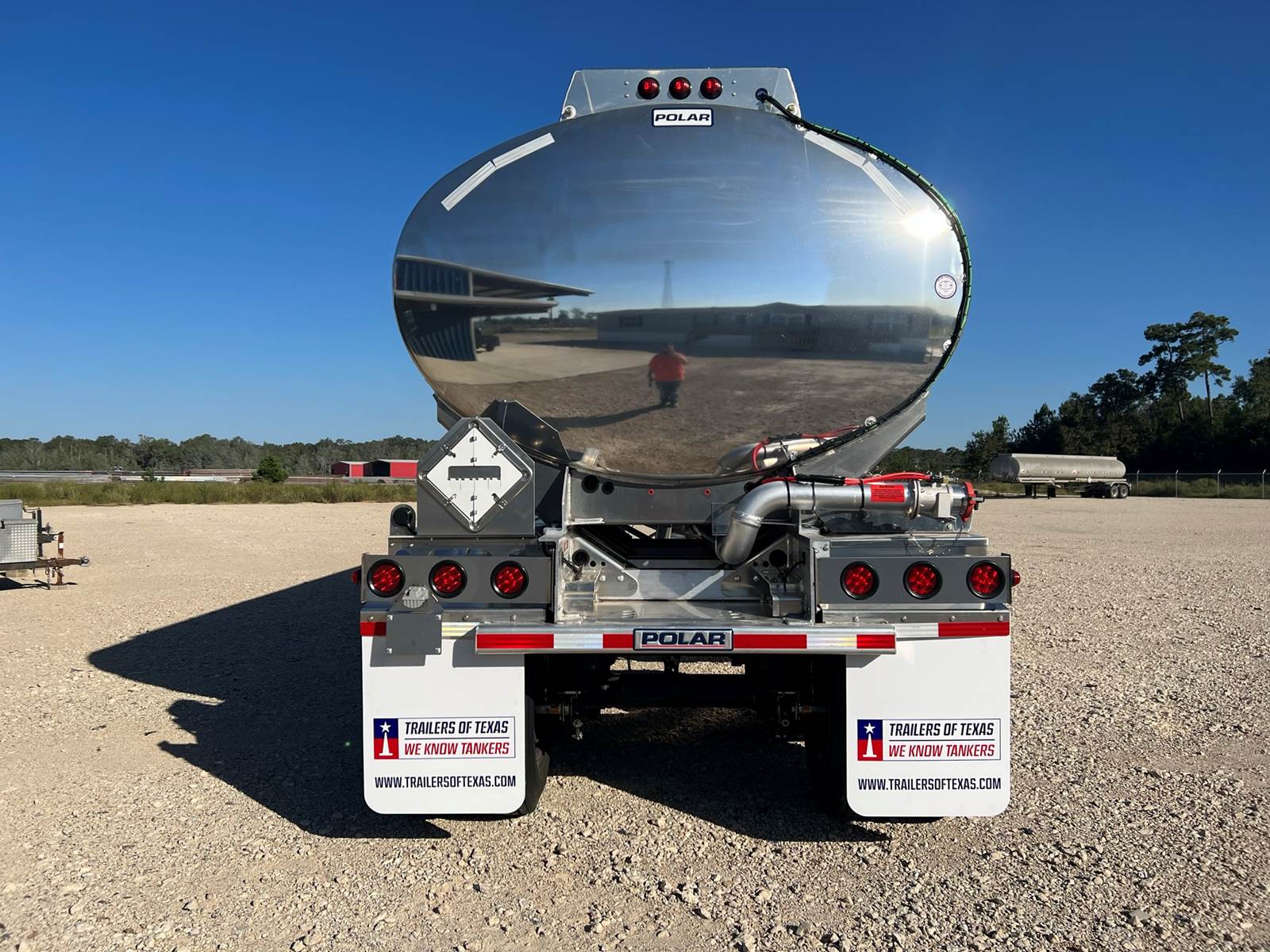

Recessed LED rear lights with additional stop/turn/tail lights
DOT-compliant conspicuity tape

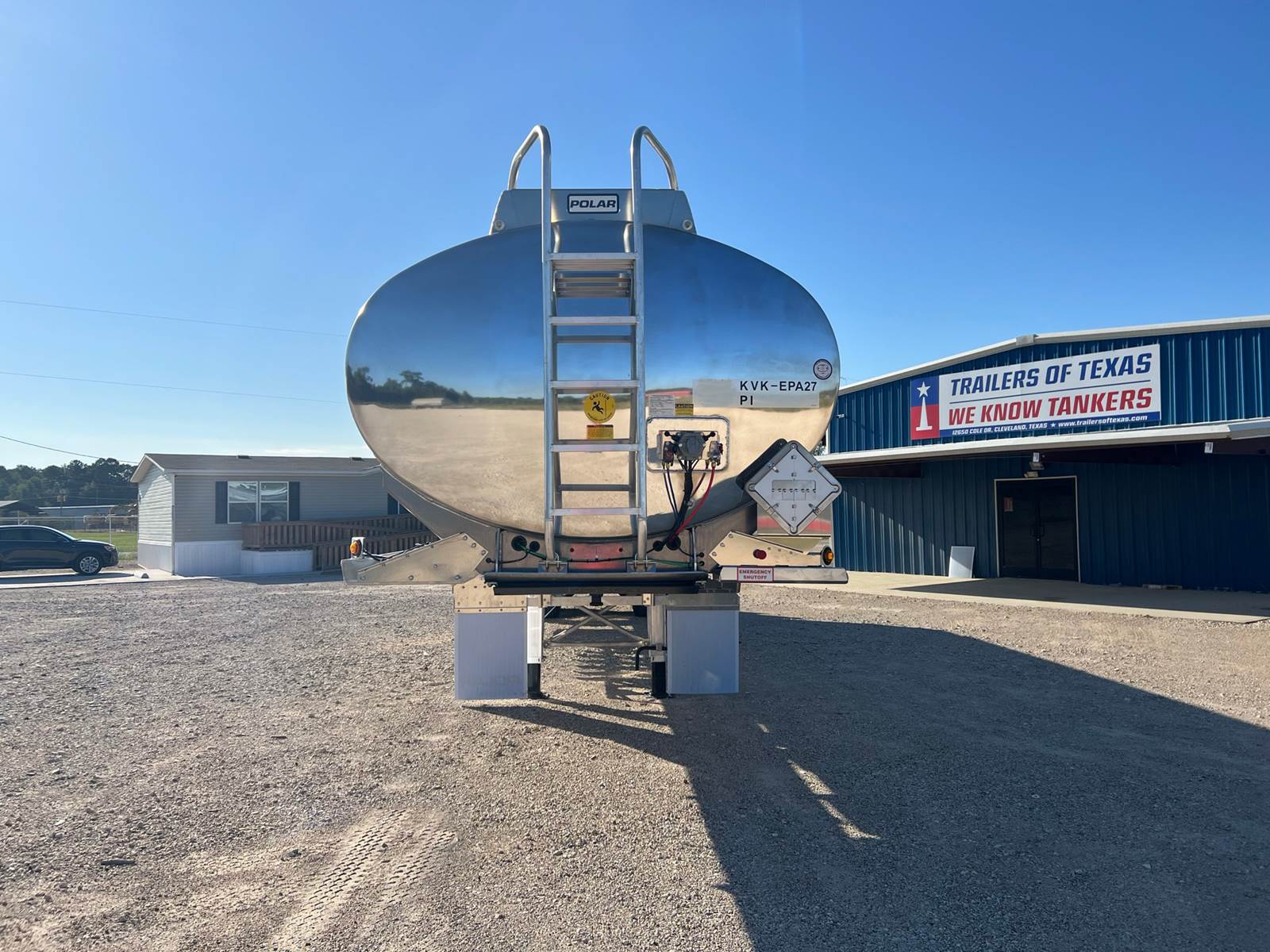

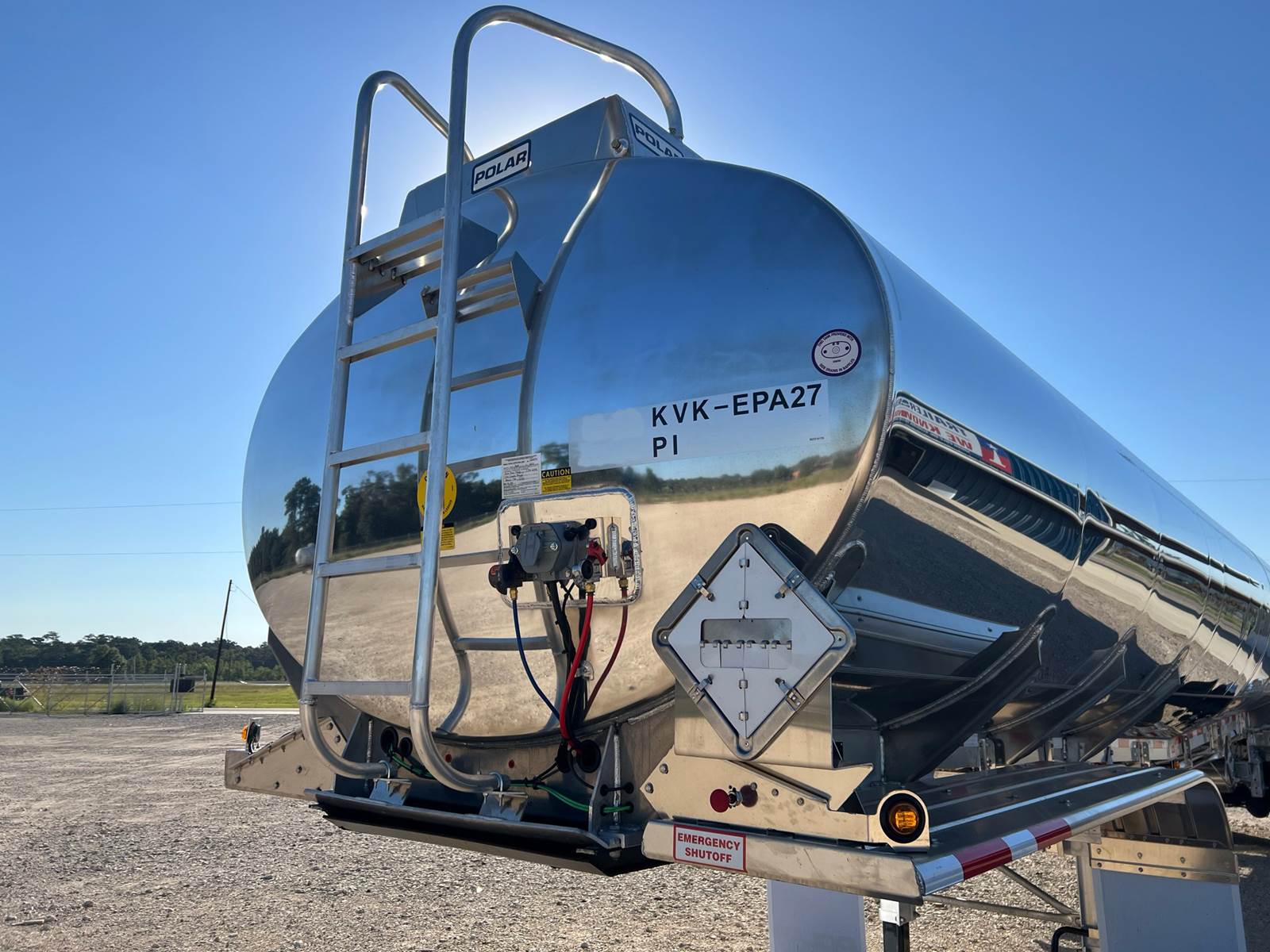

Aluminum ladder with non-skid walkway tape
Placards & calibration charts included

ABOUT POLAR TANK:
Polar Tank is a trusted leader in petroleum tank trailer manufacturing, known for its durable and high-performance DOT 406 trailers. With industry-leading craftsmanship and rigorous safety testing, Polar trailers offer reliability and longevity for bulk liquid transport.
