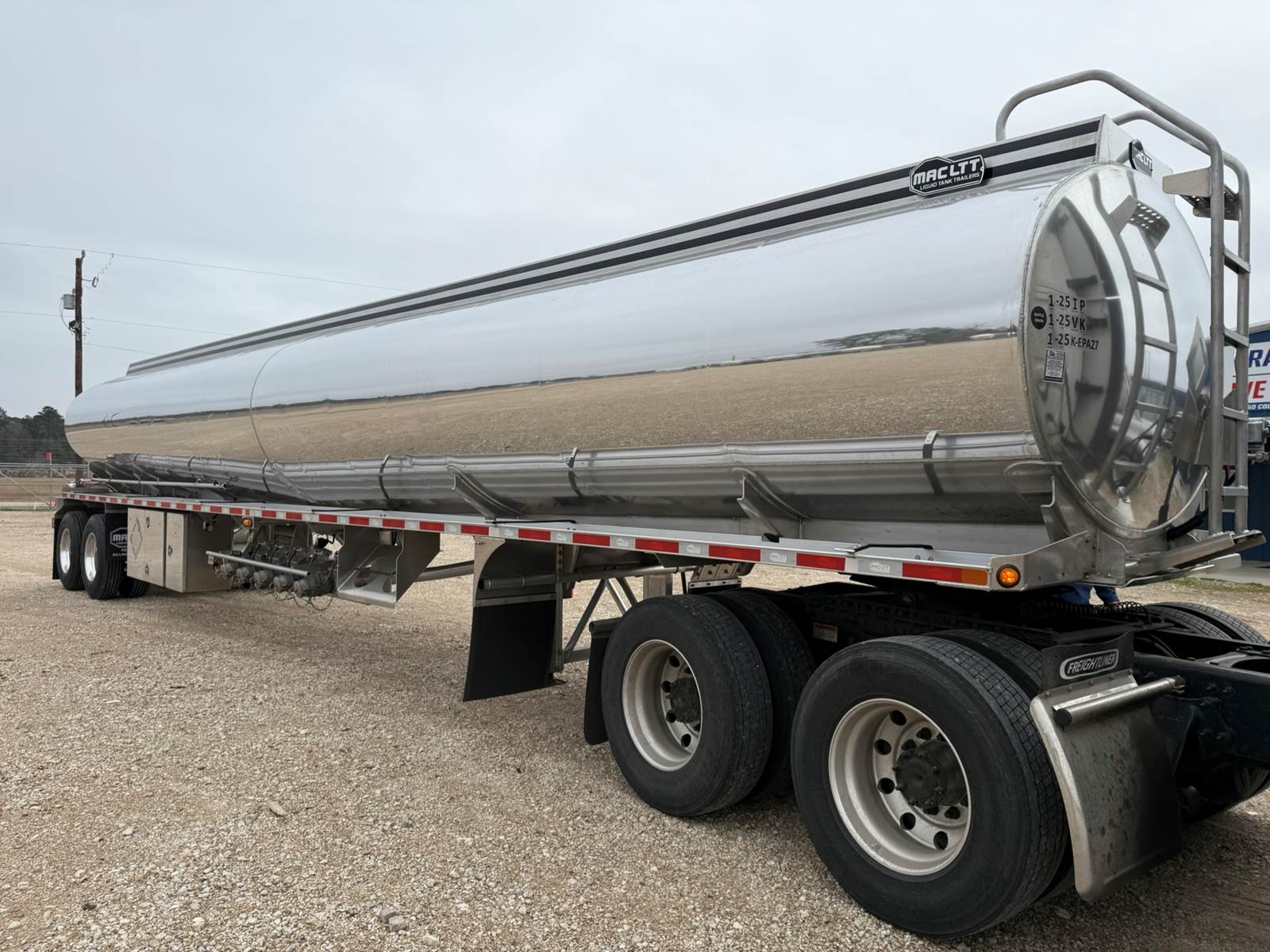

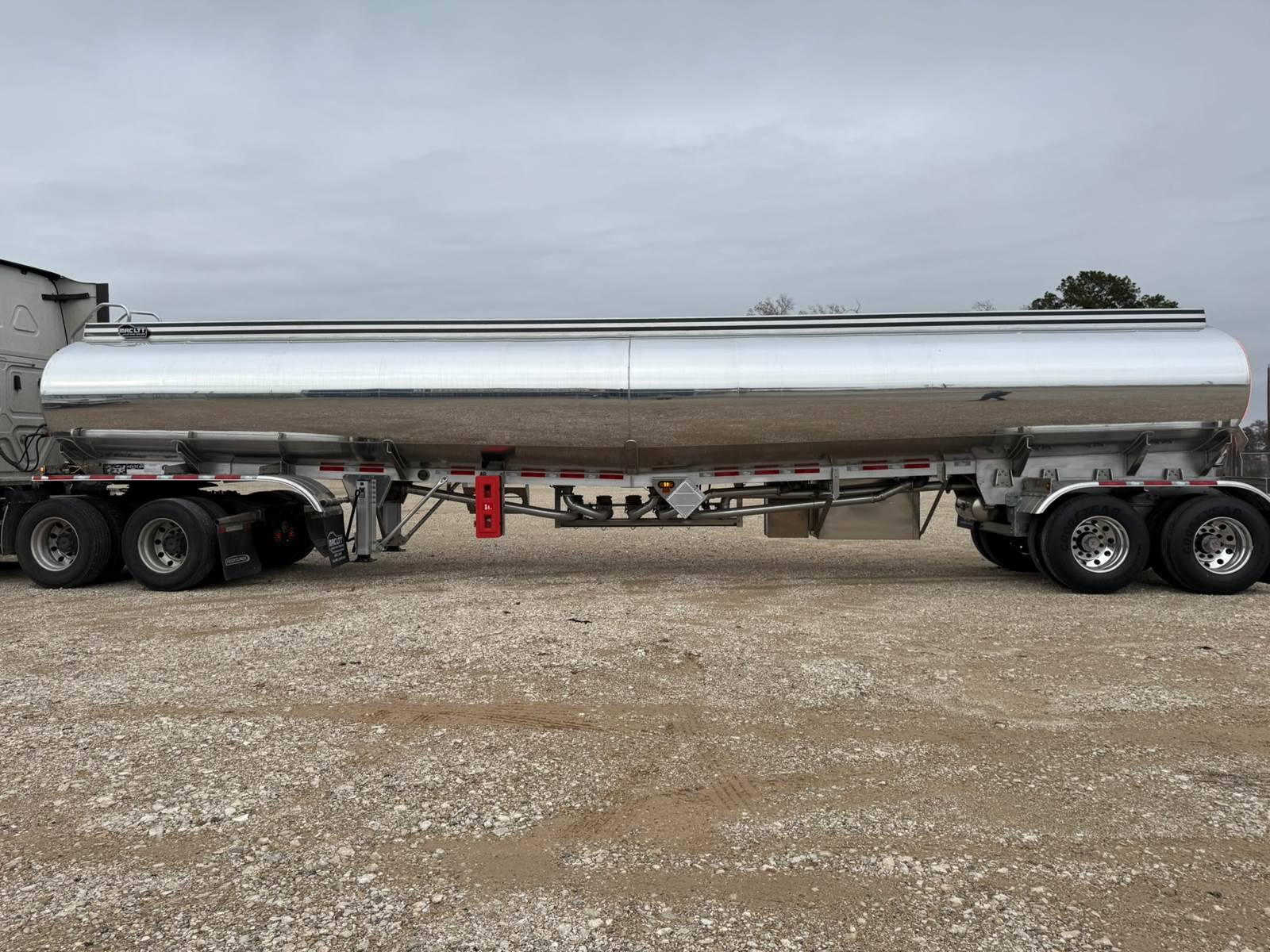

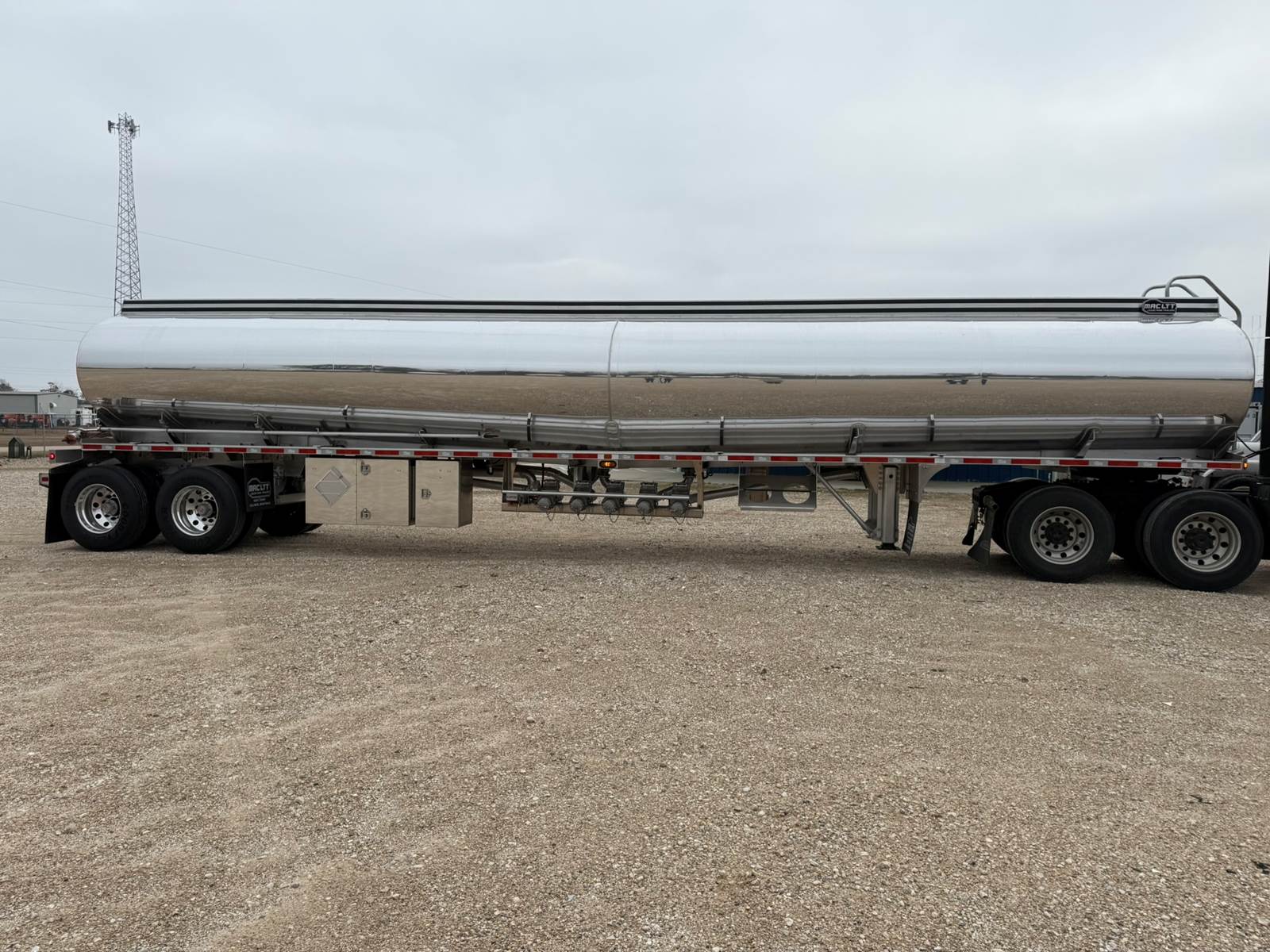

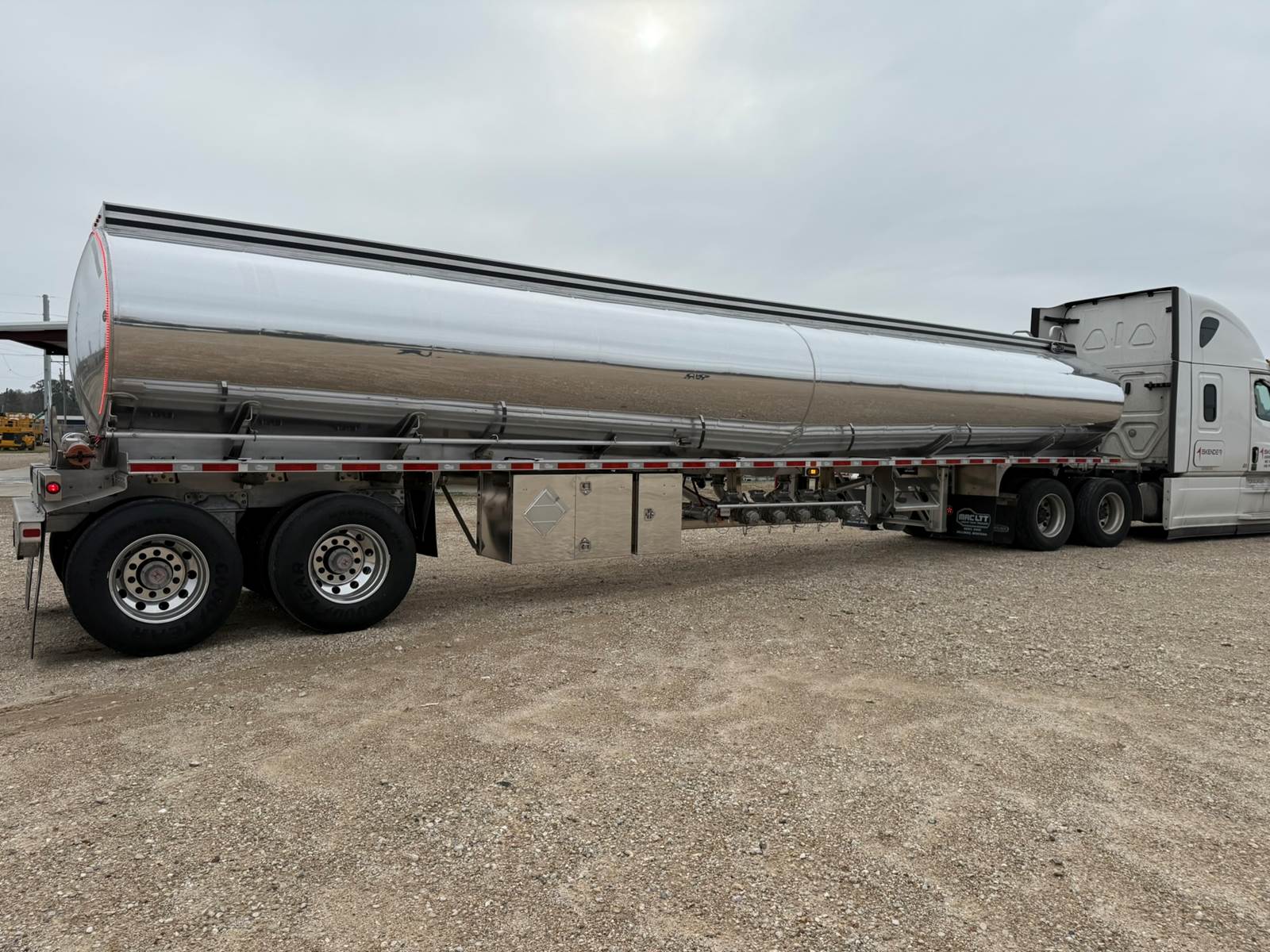

Model: 2026 MAC LTT ATE-9300-5
🚛 Manufacturer: MAC LTT built out of Kent, OH
Model: ATE-9300-5A-2-406
SPECIFICATIONS:
Capacity: 9,300 gallons (+3% tolerance)
Compartments: 5 (3000//1500//1200//1000//2600)
Overall Length: 45’
CONSTRUCTION & FRAME:
Extruded full-length aluminum frame design
Mechanical buffed finish with enhanced top and bottom finish, Polished Heads
All Double Bulkheads between each compartment
Aluminum outriggers & crossmembers at load-bearing areas

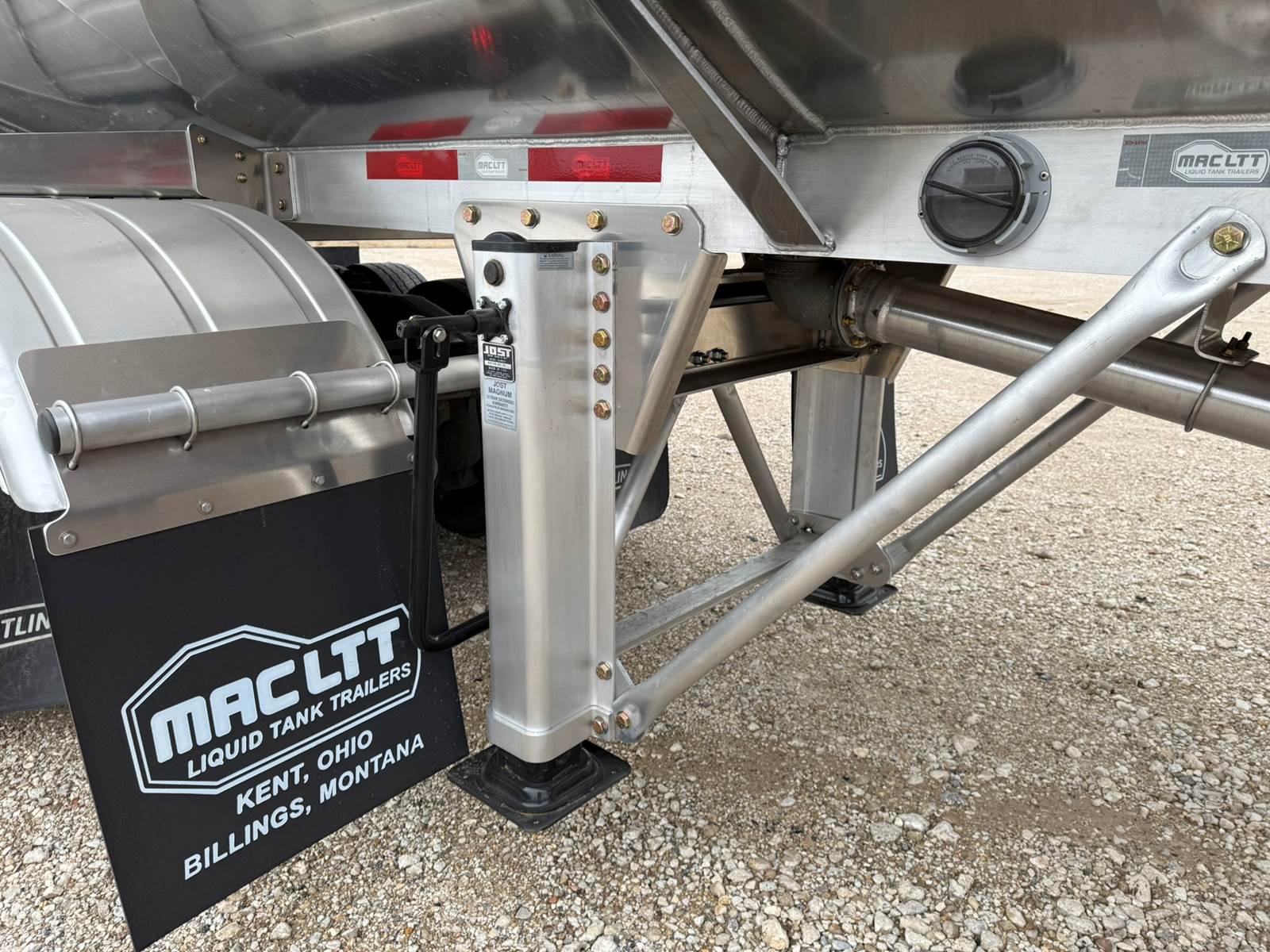

Jost AX150 Alumilight landing gear with roadside crank
MANWAY & VENTING:
Manholes: (5) 16” diameter with 10” offset fill per compartment
Vapor Recovery: Internal vapor pipe through tank with dual 4” outlets

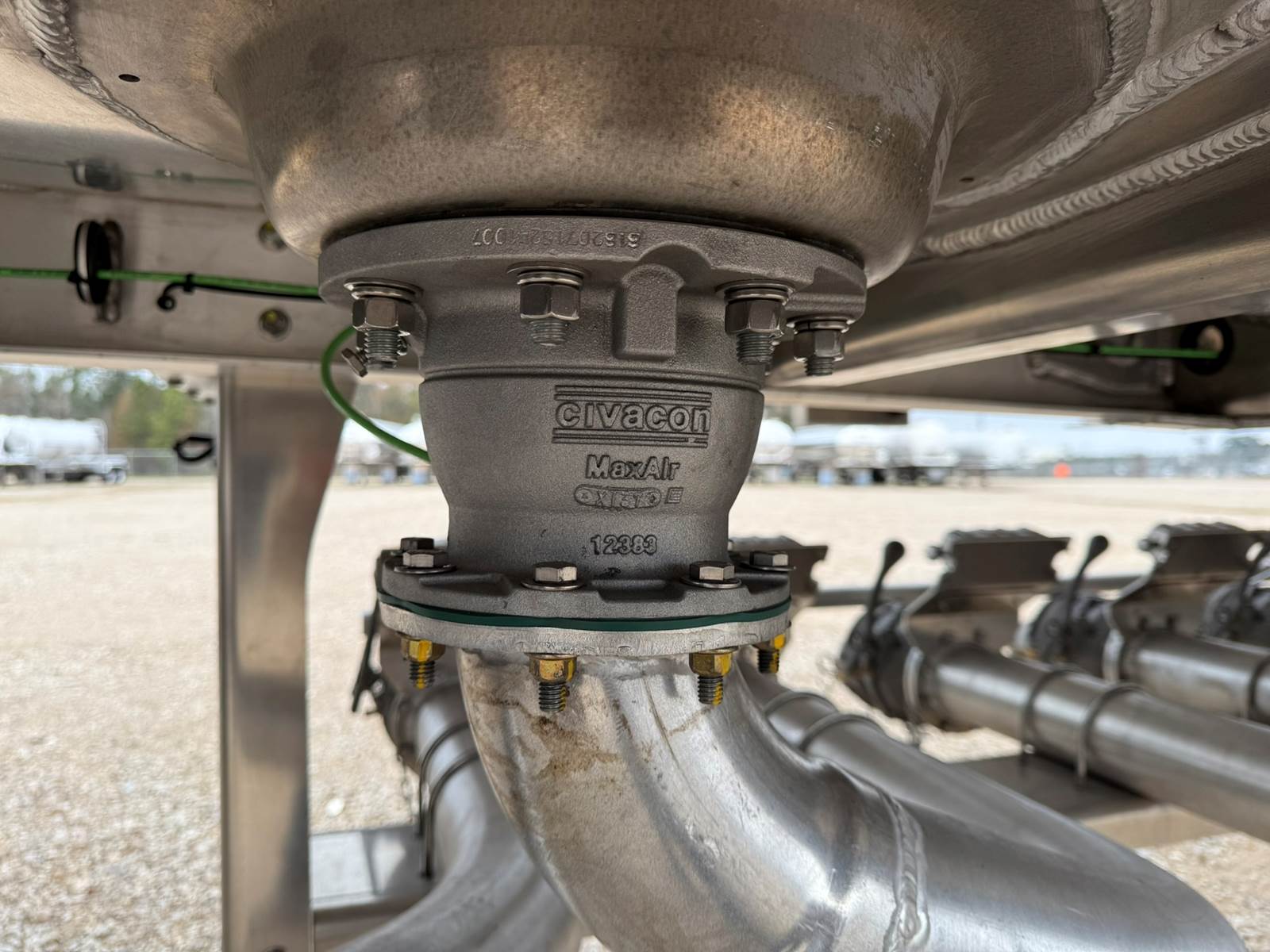

Emergency Valves: Betts air-operated elbow or straight valves

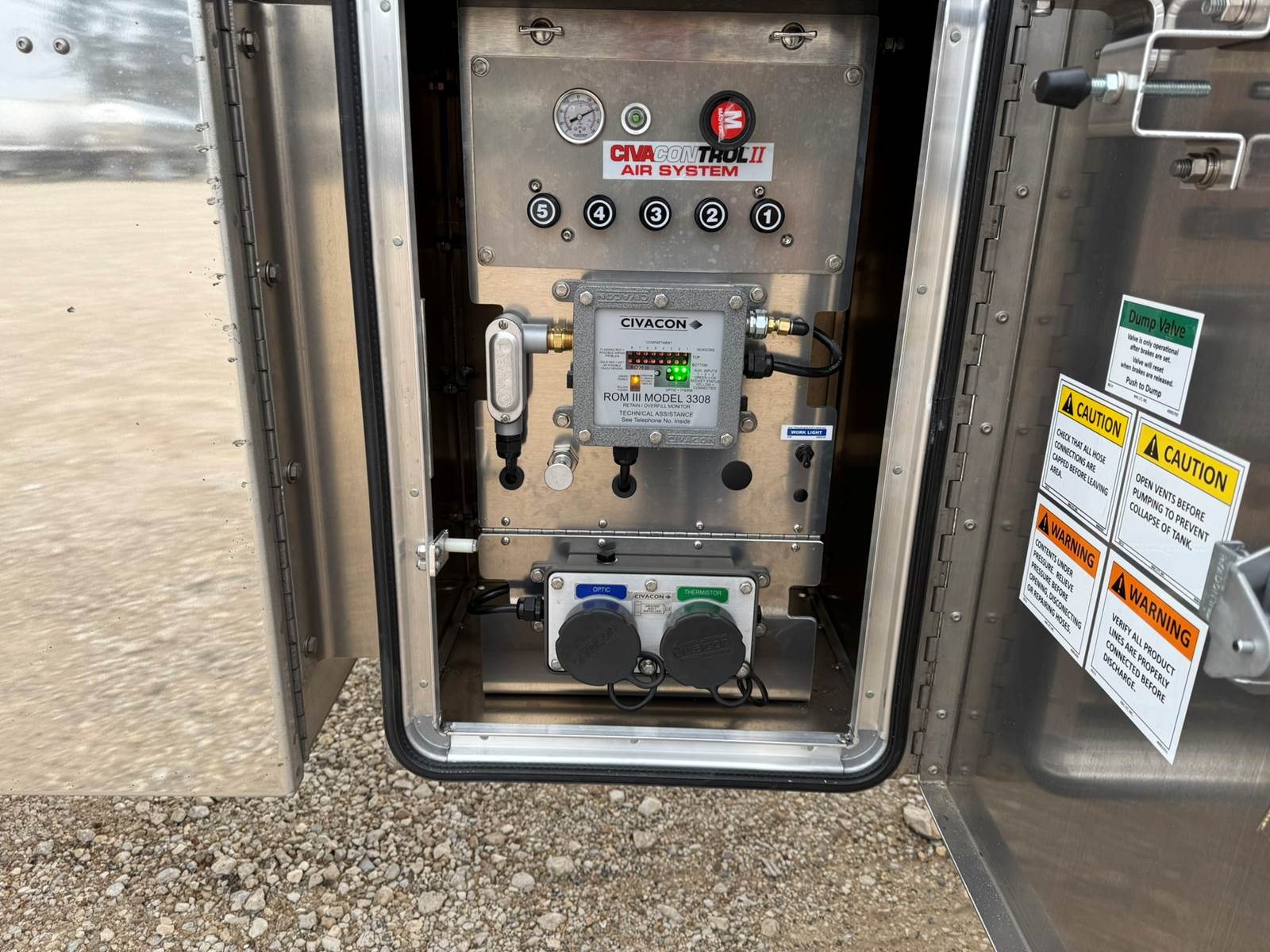

Overfill System: Civacon System V (5-year warranty) with top probe sensors
Sequential vapor interlock system for enhanced safety
SUSPENSION & UNDERCARRIAGE:

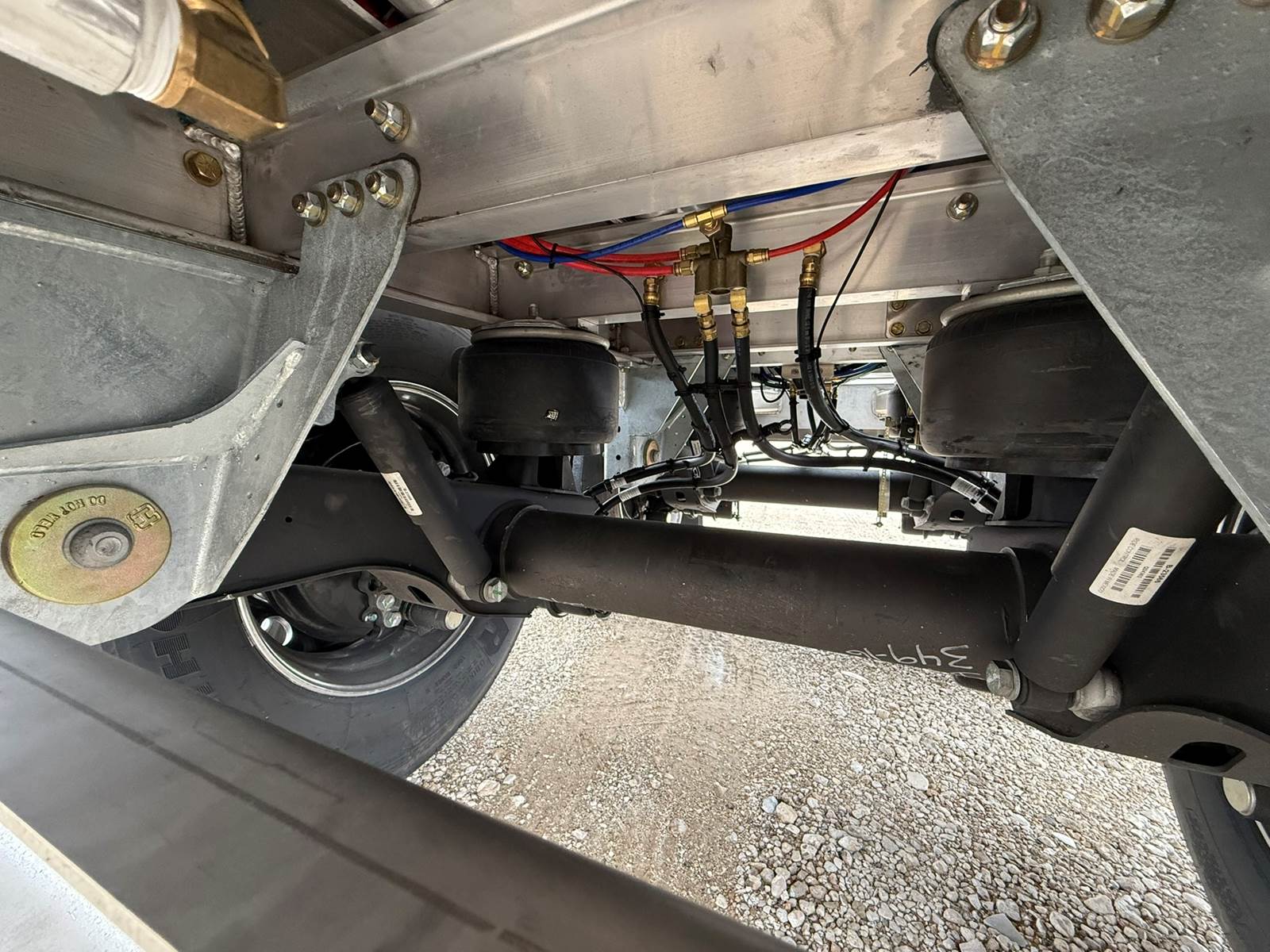

Hendrickson INTRAAX AANT23K tandem air-ride suspension
71.5” track width, 5.75” diameter axles with HP spindles
Hendrickson MAXX22T air disc brakes with Wabco 20/24 brake chambers
Wabco 4S/2M ABS with Roll Stability System (RSS)

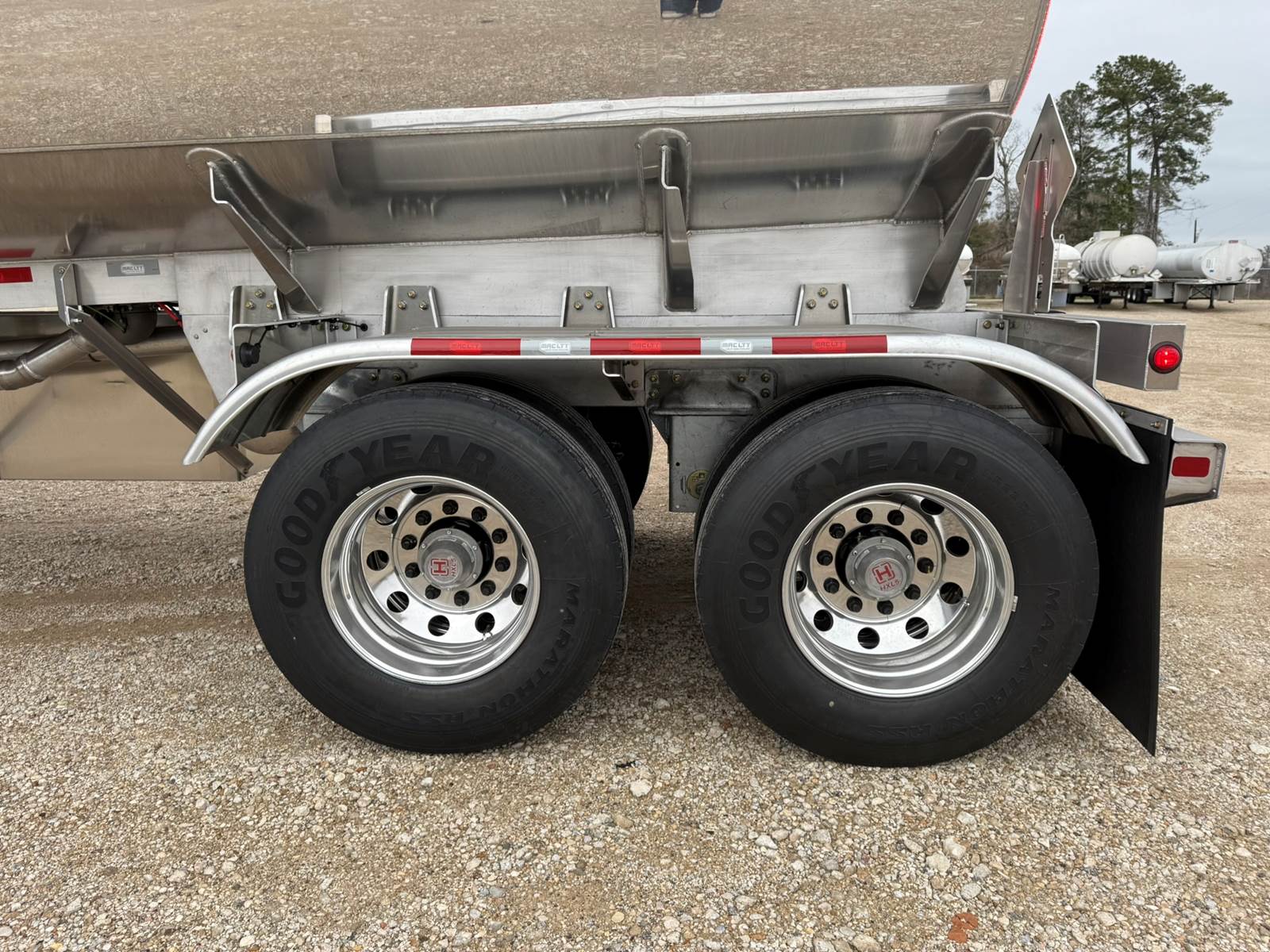

22.5” x 8.25” Accuride Accu-Lite aluminum wheels
11R-22.5 Goodyear Marathon RSS tires

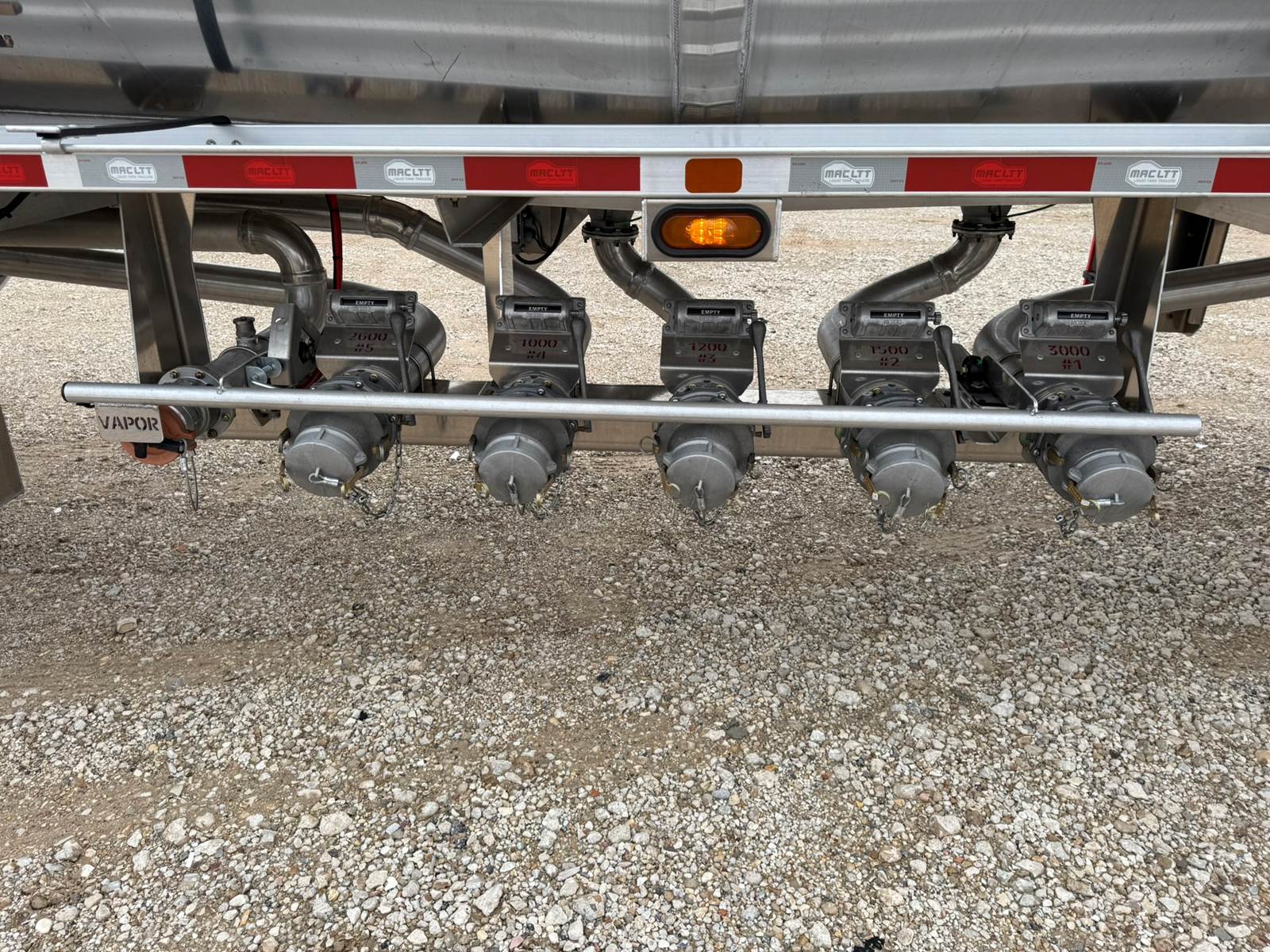

DISCHARGE:

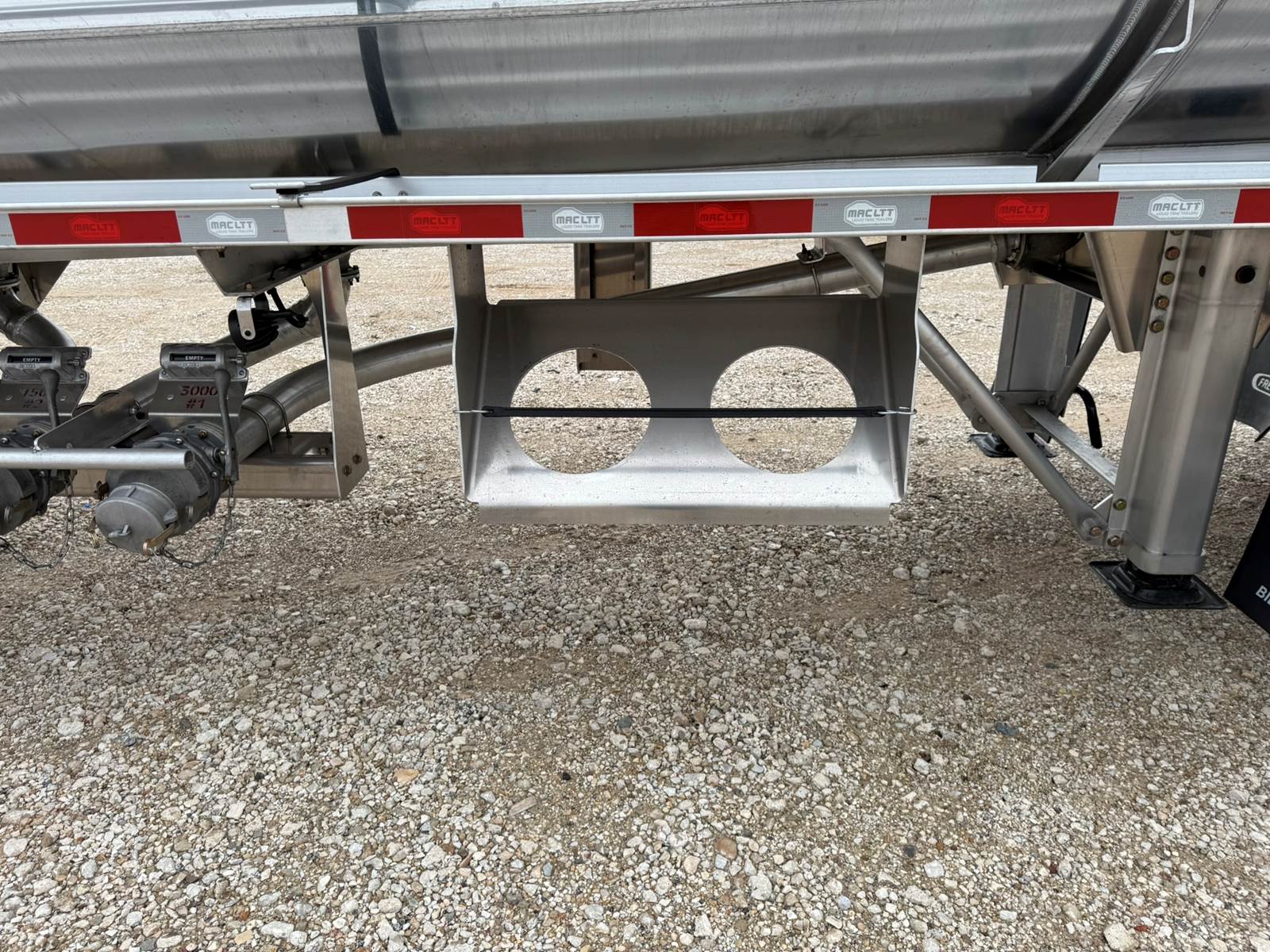

Curbside discharge location with aluminum locator bracket
(5) Bayco 4” gravity drop adapters with aluminum dust caps
(5) Sight bubbles on API valves for product verification
T.A.L.K. LIGHTING & SAFETY FEATURES:
Truck-Lite LED lighting system

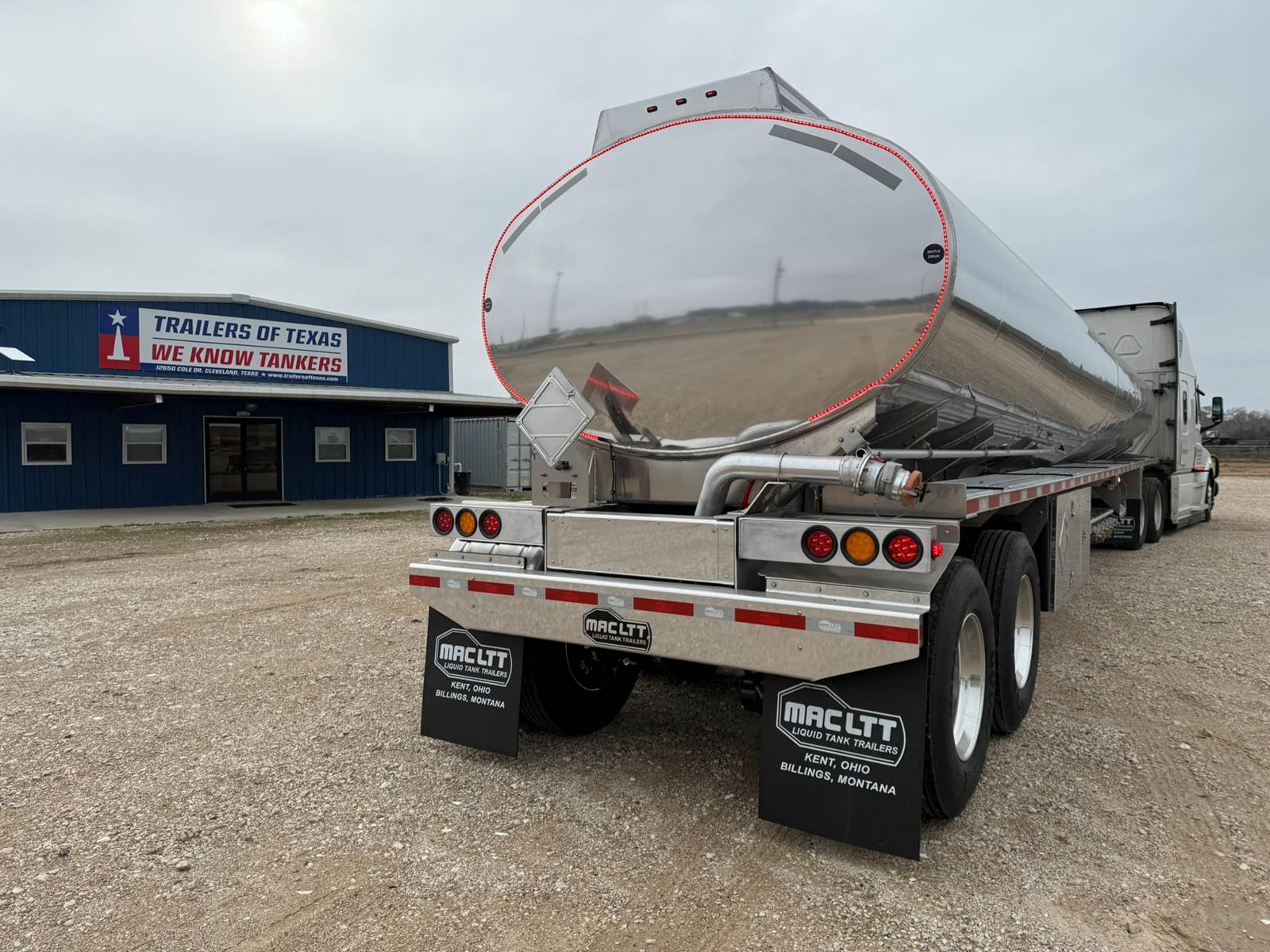

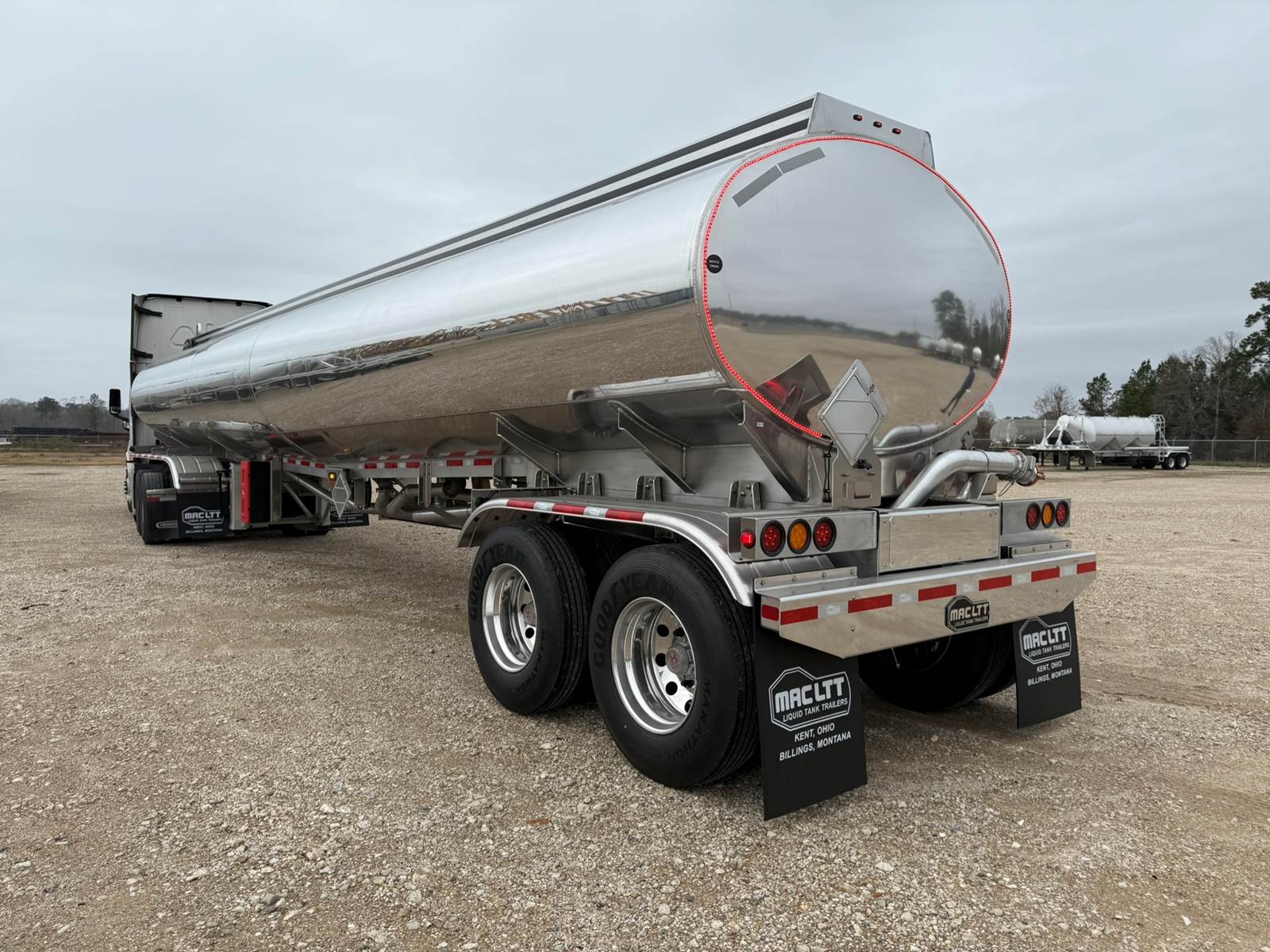

T.A.L.K. Ring of Fire on Rear Head and Lighted Discharge Bar
ABOUT MAC LTT:
MAC LTT, Inc. is a leading manufacturer of tank trailers, renowned for their innovative design and superior craftsmanship. With facilities in Kent, Ohio, Billings, Montana, and Mt. Pleasant, Michigan, MAC LTT specializes in the production of high-quality aluminum and stainless steel tank trailers. The company is committed to delivering durable, reliable, and efficient transportation solutions, supported by a dedicated team and advanced manufacturing processes.
PRICE & AVAILABILITY:
✅ In-stock and ready for immediate delivery
✅ Competitive pricing – Call for a quote!
📞 Contact Us Today: (281) 459-9534
📧 Email: nharmon@Trailersoftx.com
🌐 Website: trailersoftexas.com
Model: 2026 MAC LTT ATE-9300-5
🚛 Manufacturer: MAC LTT built out of Kent, OH
Model: ATE-9300-5A-2-406
SPECIFICATIONS:
Capacity: 9,300 gallons (+3% tolerance)
Compartments: 5 (3000//1500//1200//1000//2600)
Overall Length: 45’
CONSTRUCTION & FRAME:
Extruded full-length aluminum frame design
Mechanical buffed finish with enhanced top and bottom finish, Polished Heads
All Double Bulkheads between each compartment
Aluminum outriggers & crossmembers at load-bearing areas
Jost AX150 Alumilight landing gear with roadside crank
MANWAY & VENTING:
Manholes: (5) 16” diameter with 10” offset fill per compartment
Vapor Recovery: Internal vapor pipe through tank with dual 4” outlets
Emergency Valves: Betts air-operated elbow or straight valves
Overfill System: Civacon System V (5-year warranty) with top probe sensors
Sequential vapor interlock system for enhanced safety
SUSPENSION & UNDERCARRIAGE:
Hendrickson INTRAAX AANT23K tandem air-ride suspension
71.5” track width, 5.75” diameter axles with HP spindles
Hendrickson MAXX22T air disc brakes with Wabco 20/24 brake chambers
Wabco 4S/2M ABS with Roll Stability System (RSS)
22.5” x 8.25” Accuride Accu-Lite aluminum wheels
11R-22.5 Goodyear Marathon RSS tires
DISCHARGE:
Curbside discharge location with aluminum locator bracket
(5) Bayco 4” gravity drop adapters with aluminum dust caps
(5) Sight bubbles on API valves for product verification
T.A.L.K. LIGHTING & SAFETY FEATURES:
Truck-Lite LED lighting system
T.A.L.K. Ring of Fire on Rear Head and Lighted Discharge Bar
ABOUT MAC LTT:
MAC LTT, Inc. is a leading manufacturer of tank trailers, renowned for their innovative design and superior craftsmanship. With facilities in Kent, Ohio, Billings, Montana, and Mt. Pleasant, Michigan, MAC LTT specializes in the production of high-quality aluminum and stainless steel tank trailers. The company is committed to delivering durable, reliable, and efficient transportation solutions, supported by a dedicated team and advanced manufacturing processes.
PRICE & AVAILABILITY:
✅ In-stock and ready for immediate delivery
✅ Competitive pricing – Call for a quote!
📞 Contact Us Today: (281) 459-9534
📧 Email: nharmon@Trailersoftx.com
🌐 Website: trailersoftexas.com
Year
2026
Type
Manufacturer
Model
9300 Gallon 5 Compartment
Condition
New
Stock Number
Stock - MAC LTT Petro
MLS Number
12926380
VIN
—
Quantity
—
Weight & Dimensions
Weight
—
Capacity & Size
Capacity
9300
Gallons
9300 Gallons
Number of Compartments
5
Body & Chassis
Suspension
4 Bag Air Ride
Composition
Aluminum
Number of Rear Axles
Tandem
Axle Type
Tandem
Wheels & Brakes
Wheel Type
All Aluminum
Tire Size
11 R 22.5
# of Tires
8
Brake Type
Disc
Additional Details
Tank Type
—
Bottom Load
—
Insulated
—
Warranty
1
Warranty Term in Months
—
