2025 ACT 12,600 Gallon Cryogenic LNG Industrial Gas Tank Trailers

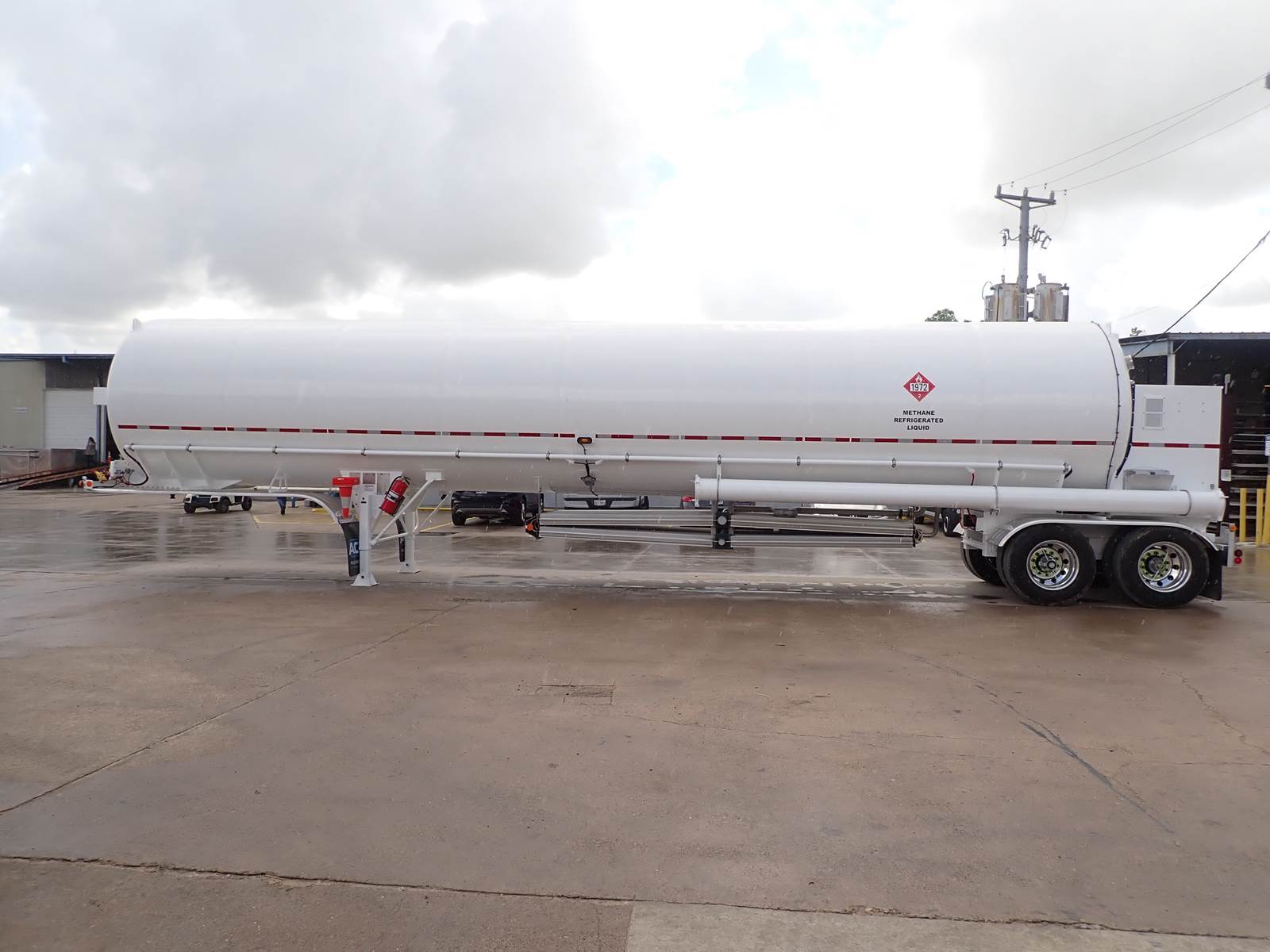

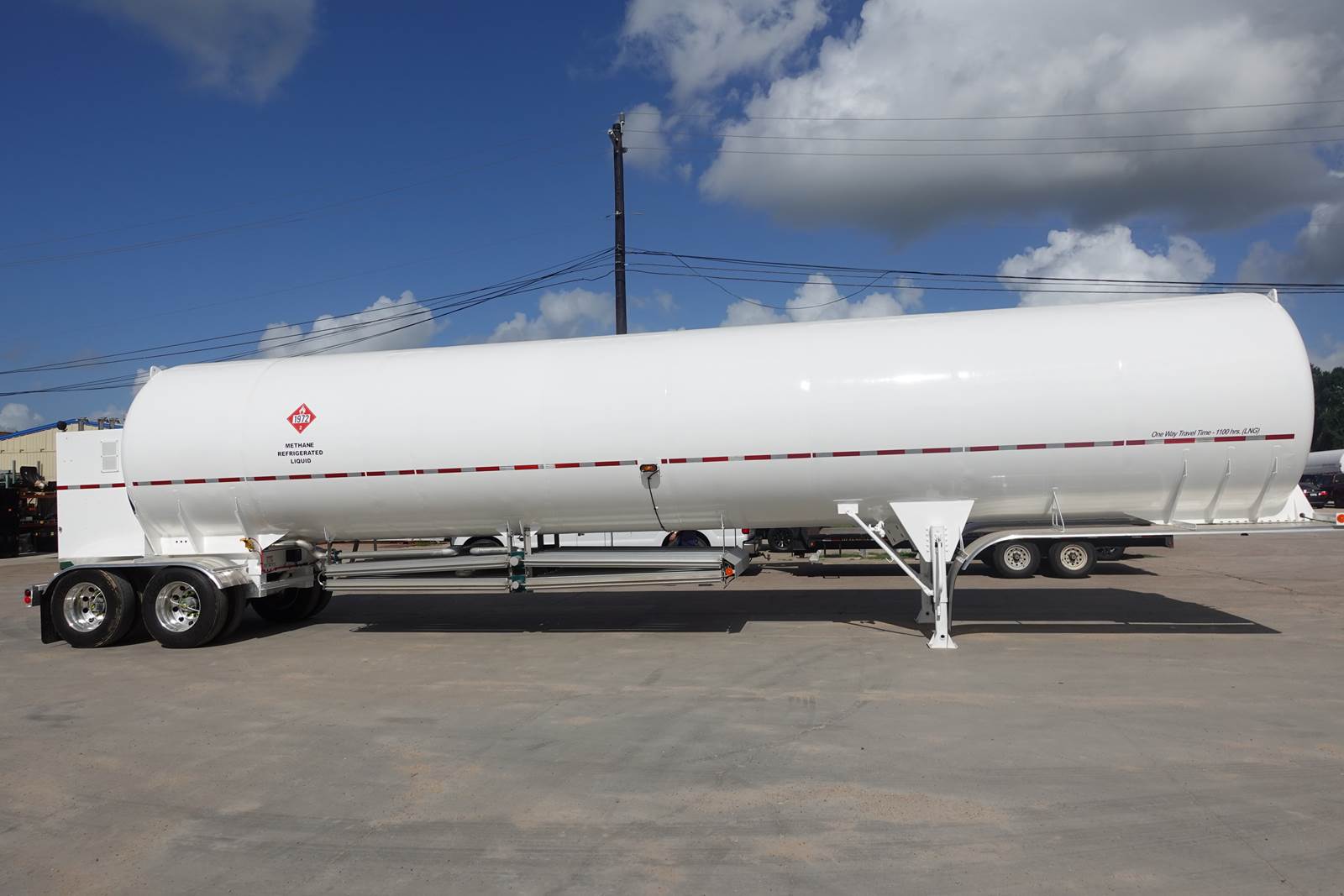

Applied Cryo Technologies (ACT) model LNG-126-070-P is a vacuum-insulated, cryogenic tandem semi-trailer designed
and optimized specifically for transporting Liquid Natural Gas (LNG) over US highways (80,000 LB MGVW).

Industry Leader in Maximizing Payload

Applied Cryo Technologies (ACT) is the industry leader in mobile cryogenic trailer design. ACT’s success stems from our
custom design approach centered around maximizing payload for a specific customer’s application and improving their
bottom line. This design approach is at the heart of ACT’s business model.

Backed by the Longest Warranty in the Industry

ACT trailers are backed by the longest warranty in the industry and are engineered for the highest level of performance,
thermal efficiency, and product longevity.

Product Highlights:

• Best in class payload. Lightest LNG trailer in the industry.
• Superior Thermal Performance: ACT’s (SI) Super Insulation techniques, support designs, vacuum processes, and Hydrogen adsorption materials result in superior thermal performance and vacuum integrity.
• Lowest cost of ownership

PRODUCT SERVICE: LNG
MAWP: 70 PSIG (4.83 BAR)
WARM WATER CAPACITY: 12,570 USG (47,583 liters)
VOLUME AT 70 PSI FILL DENSITY 11,158 USG (42,238 liters)
TARE WEIGHT: 24,020 lbs., (10,893 kg) +/- 3%
LENGTH, WIDTH, HEIGHT 47 ft. 11 in (14.5 m), 102in (2.6 m), 11 ft. 11 in (3.6 m)
DESIGN CODES: ASME SEC VIII, DIV 1, 49 CFR 178.338 (MC-338)
NORMAL EVAPORATION RATE (NER): 0.21% LNG
ONE WAY TRAVEL TIME (OWTT): 1100 HOURS
